Wiring Diagram / Connector; Figure 1 - Scout Repeater Connections - Cognisys Scout Owner's Manual

2.6 Wiring Diagram / Connector

There is one external connector on the Scout Repeater:
1. External Power (3-pin)
This allows you to optionally power the Repeater from your own power source for even
longer battery life.
The Scout Repeater uses weather-resistant connectors and cables. If the Repeater will be used
outside during rain, snow, or condensing humidity be sure to have the power cable locked in
place. If not using the external power jack keep the connector cap installed.

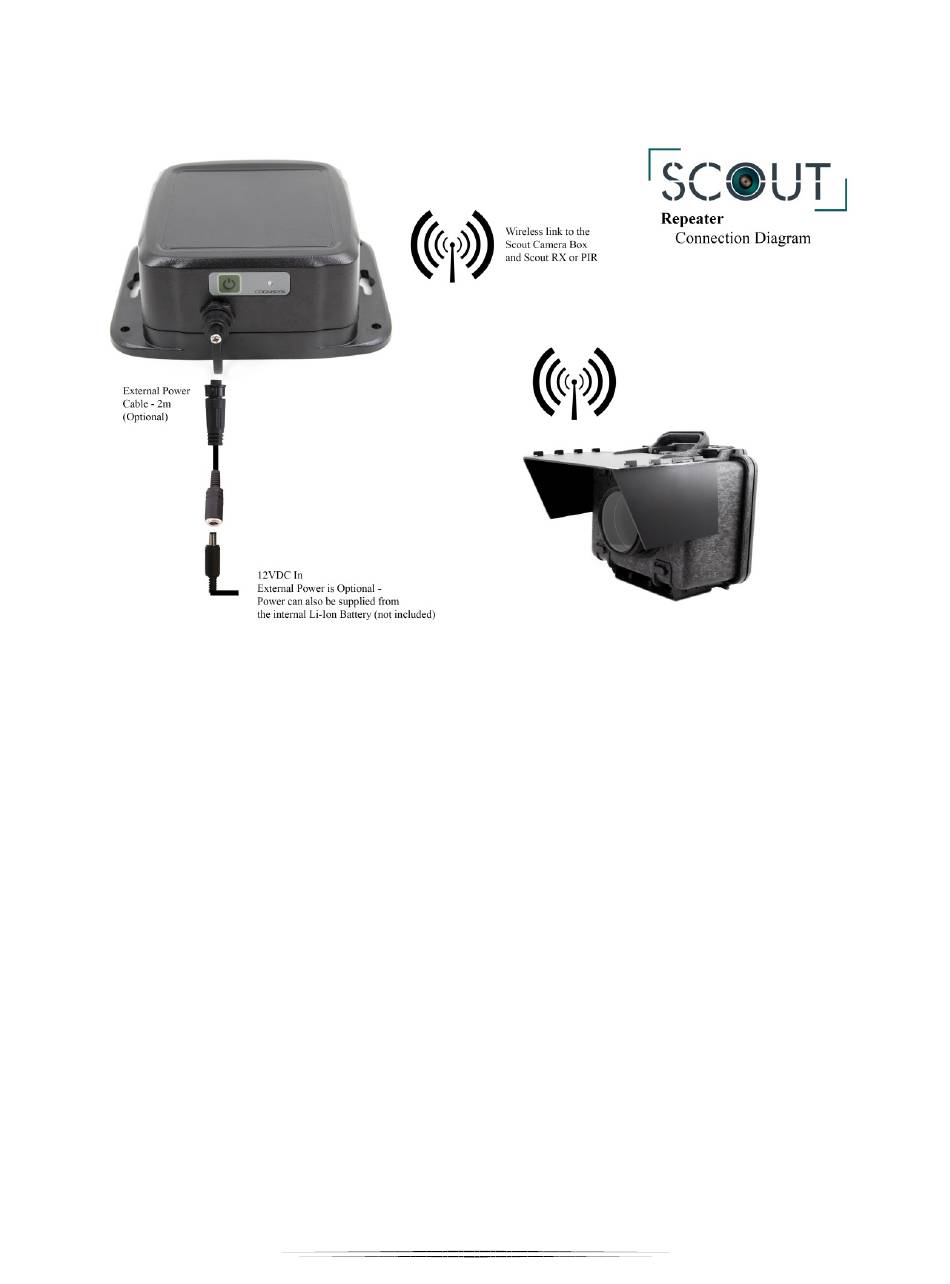

Figure 1 – Scout Repeater Connections
