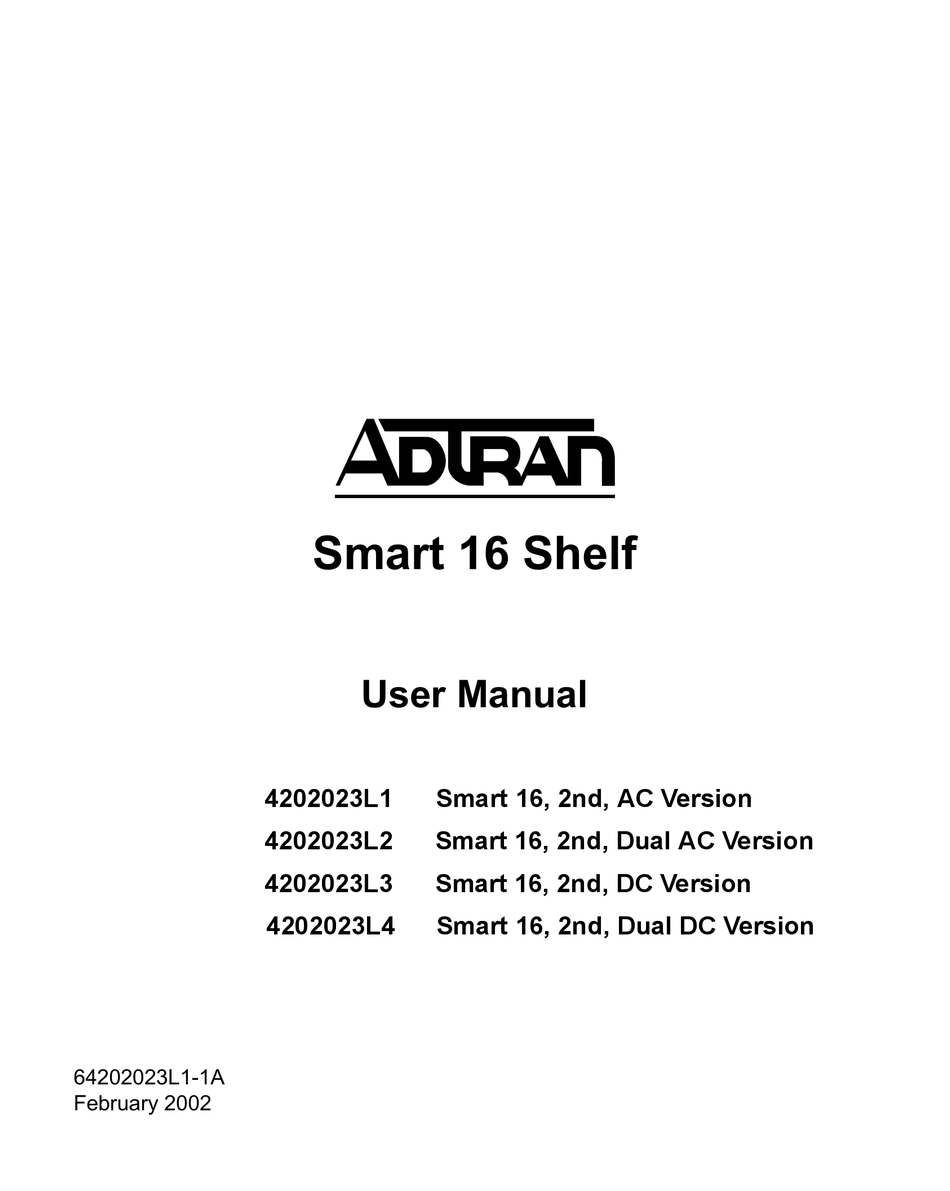

- Page 1 4202023L1 Smart 16, 2nd, AC Version 4202023L2 Smart 16, 2nd, Dual AC Version 4202023L3 Smart 16, 2nd, DC Version 4202023L4 Smart 16, 2nd, Dual DC Version...
- Page 3 The following conventions are used in this manual. Notes provide additional useful information. Cautions signify information that could prevent service interruption. Warnings provide information that could prevent damage to the equipment or endangerment to human life.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION When using your telephone equipment, please follow these basic safety precautions to reduce the risk of fire, electrical shock, or personal injury: Do not use this product near water, such as near a bath tub, wash bowl, kitchen sink, laun- dry tub, in a wet basement, or near a swimming pool. -
Page 5: Affidavit Requirements For Connection To Digital Services
Affidavit Requirements for Connection to Digital Services • An affidavit is required to be given to the telephone company whenever digital terminal equipment without encoded analog content and billing protection is used to transmit digi- tal signals containing encoded analog content which are intended for eventual conversion into voice band analog signal and transmitted on the network. - Page 6 Affidavit for Connection of Customer Premises Equipment to 1.544 MBPS and/or Subrate Digital Services For the work to be performed in the certified territory of ______________ (telco name) State of ________________________________ County of ______________________________ I, _______________________ (name), ____________________ (business address), _____________________ (telephone number) being duly sworn, state: I have the responsibility for the operation and maintenance of the terminal equipment to be connected to 1.544 Mbps and/or __________________ subrate digital services.
- Page 7 ( ) C. An independent training course (e.g., trade school or technical institution) recognized by the manufacturer/grantee of the equipment used to encode analog signals; or ( ) D. In lieu of the proceeding training requirements, the operator(s)/maintainer(S) is (are) under the control of a supervisor trained in accordance with _______________ (circle one) above.
- Page 8 FCC regulations require that the following information be provided in this manual: This equipment complies with Part 68 of the FCC rules. There is a label on the equipment that shows the FCC registration number and Ringer Equivalence Number (REN) for this equipment, if applicable.
- Page 9 If experiencing difficulty with this equipment, please contact ADTRAN for repair and warranty information. If the equipment is causing harm to the network, the telephone company may request this equipment to be disconnected from the network until the prob- lem is resolved or it is certain that the equipment is not malfunctioning.
-
Page 10: Federal Communications Commission Radio Frequency Interference Statement
Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial envi- ronment. -
Page 11: Canadian Emissions Requirements
Industry Canada Compliance Information Notice: The Industry Canada label applied to the product (identified by the Industry Canada logo or the “IC:” in front of the certification/registration number) signifies that the Industry Canada technical specifications were met. Notice: The Ringer Equivalence Number (REN) for this terminal equipment is supplied in the documentation or on the product labeling/markings. - Page 12 ADTRAN warrants that for five (5) years from the date of shipment to Customer, all products manufactured by ADTRAN will be free from defects in materials and workmanship. ADT- RAN also warrants that products will conform to the applicable specifications and drawings for such products, as contained in the Product Manual or in ADTRAN's internal specifications and drawings for such products (which may or may not be reflected in the Product Manual).
-
Page 13: Repair And Return
Customer Service, Product Support Information, and Training ADTRAN will repair and return this product if within five years from the date of shipment the product does not meet its published specification or the product fails while in service. A return material authorization (RMA) is required prior to returning equipment to ADTRAN. -
Page 14: Post-Sale Support
Your reseller should serve as the first point of contact for support. If additional support is needed, the ADTRAN Support web site provides a variety of support services such as a search- able knowledge base, updated firmware releases, latest product documentation, service request ticket generation and trouble-shooting tools. - Page 15 /LVW RI )LJXUHV [YLL /LVW RI 7DEOHV [L[ &KDSWHU ,QWURGXFWLRQ &KDSWHU ,QVWDOODWLRQ &KDSWHU 2SHUDWLRQ ...
- Page 16 $SSHQGL[ $ 3LQRXWV $SSHQGL[ % 6SHFLILFDWLRQV ,QGH[ ...
- Page 28 SMART 16 POWER I/F Alarm Relay Power Source ALARM 250V 115VAC/60HZ 2.5 AMP Power Source...
- Page 30 SMART 16 POWER I/F 6-pin modular jacks for daisy-chaining shelves together (use straight through cable) ALARM Fuse for left power supply 250V 115VAC/60HZ 2.5 AMP 25-pin EIA-232 connector interface for asynchronous ASCII terminal VT100 (local and remote configuration) Removable terminal strip for external alarm circuits or other devices Fuse for right power supply Captive 8-foot power cord...
- Page 31 SMART 16 DUAL AC POWER I/F 6-pin modular jacks for daisy-chaining shelves together (use straight through cable) Fuse for left power supply 25-pin EIA-232 connector interface for asynchronous ASCII terminal VT100 (local and remote configuration) Removable terminal strip for external alarm circuits or other devices ALARM Fuse for right power supply...
- Page 32 SMART 16 POWER I/F 6-pin modular jacks for daisy-chaining shelves together (use straight through cable) ALARM Fuse for left power supply 250V 48V ,4A – 25-pin EIA-232 connector interface for asynchronous ASCII terminal VT100 (local and remote configuration) Removable terminal strip for external alarm circuits or other devices Fuse for right power supply External DC Power Supply Specs:...
- Page 33 6-pin modular jacks for daisy-chaining shelves together (use straight through cable) Fuse for left power supply SMART 16 DUAL DC POWER I/F 25-pin EIA-232 connector interface for asynchronous ASCII terminal VT100 (local and remote configuration) Removable terminal strip for external alarm circuits or other devices ALARM Fuse for right power supply...
- Page 36 Battery 2 3 4 5 6 7 8 Switch 1 sets shelf number, master/slave operation, SNMP, and battery enable/disable. Fuses Jumpers configure the card for local (DCE) or remote (DTE) operation.
- Page 38 SMART 16 POWER I/F ALARM 250V 115VAC/60HZ 2.5 AMP...
- Page 43 &DQFHO...
- Page 44 +2/' &$1&(/ .(< )25 6(59,&( &DQFHO Use arrows to scroll through submenu items Press before desired alpha character selection (VFDSH Displays menu items and messages Press to select active (flashing) menu items DATAMATE ENTER Press to stop current CANCEL activity and return to previous menu Use numeric keypad SHIFT...
- Page 45 (QWHU 6KLIW 6KLIW (QWHU 6KLIW 4XLFN &DQFHO &DQFHO...
- Page 47 (QWHU...
- Page 48 SMART 16 POWER I/F MODEM ALARM 250V 115VAC/60HZ 2.5 AMP MODEM...
- Page 49 SNMP/Telnet Disable Battery Shelf Number Enable Selection 4 5 6 SNMP/Telnet Battery Enable Control Disable Master Control...
- Page 50 SMART 16 POWER I/F SHELF 1 Master (SW1-8 on) ALARM 250V 115VAC/60HZ 2 AMPS SMART 16 POWER I/F SHELF 2 ALARM Subcontoller (SW1-8 off) 250V 115VAC/60HZ 2 AMPS SMART 16 POWER I/F SHELF 3 ALARM Subcontoller (SW1-8 off) 250V 115VAC/60HZ 2 AMPS...
- Page 53 6-pin modular jack used for DATAMATE connection. SMART 16 Displays assigned shelf number. SHELF CONTROLLER Also displays error messages (see Table 3-2). SHELF NUMBER ALARM Alarm LEDs. See Table 3-3 for conditions and solutions. LOCAL CONTROL...
- Page 54 &OHDULQJ '%8 $ODUPV...
-
Page 59: Power Indication
Shield 8-12 18-21 23-25 Shield for cable Digit Present Abandon Call and Retry Call Request Present Next Digit Power Indication Signal Ground Distant Station Connect Digit LSB Digit bit 2 Digit bit 3 Digit bit MSB Data Line Occupied No Connection No Connection No Connection... - Page 60 NETWORK...
- Page 62 Transmit Data from DSU to Network-Ring 1 Transmit Data from DSU to Network-Tip 1 Not Used Receive Data from Network to DSU-Tip Receive Data from Network to DSU-Ring Not Used Network-Tip Network-Ring Not Used...
- Page 67 AC version affidavit alarm connections alarm menu alarm messages alarms clearing DBU alarms change password connection connection type contents of shipment controller card connecting input devices error messages front panel installation CTRL OUT pin assignments daisy chaining DATAMATE arrow keys cancel connection to controller card enter...
