Thank you for choosing Slam Hornet
Purpose of this manual is to provide you all the necessary safety and product information to
conduct your job conveniently and without any risks for health and safety.
Instructions for Safe Use
(
Certification N:o VTT 08 ATEX 030X)
®

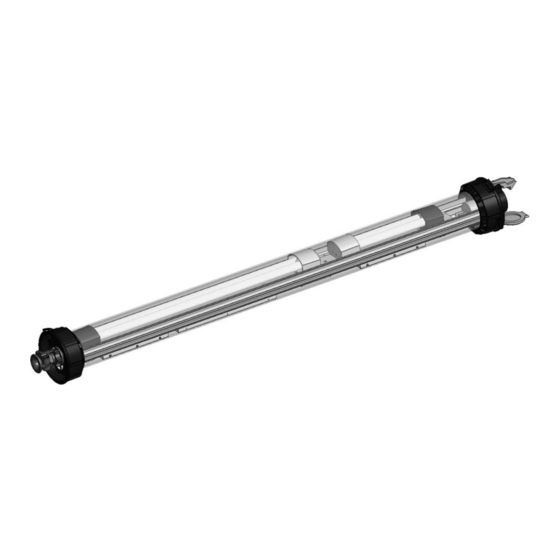

Emergency –portable work light for your job site.
(
Certification N:o VTT 08 ATEX 030X)
Atexor Oy Seinäjoki • P.O.Box 89 • FIN-60101 Seinäjoki • FINLAND
www.atexor.com • Tel: +358 20 734 3250 • Trade Reg. No. 486.515 • VAT No. FI08370823
Advertisement
Table of Contents
Related Manuals for Atexor Slam Hornet Emergency 18+40W
Summary of Contents for Atexor Slam Hornet Emergency 18+40W
-
Page 1: Instructions For Safe Use
Certification N:o VTT 08 ATEX 030X) Atexor Oy Seinäjoki • P.O.Box 89 • FIN-60101 Seinäjoki • FINLAND www.atexor.com • Tel: +358 20 734 3250 • Trade Reg. No. 486.515 • VAT No. FI08370823... - Page 2 2/16...
-
Page 3: Table Of Contents
3/16 Contents Instructions for Safe Use ......................1 1. Introduction to Slam® Hornet Emergency ................5 1.1 Technical data ......................... 5 1.2 Certification of equipment ....................5 1.3 Standard unit construction ....................6 Quality guaranteed ...................... 7 1.4.1 General ........................7 1.4.2 Individual testing reports .................... - Page 4 4/16 4.3 Testing ........................... 14 4.4 Repair report ........................14 4.5 Periodical testing of CentaurSlam Hornet Emergency ........... 14 4.6 More information about the use of Electrical Apparatus for Explosive Gas Atmospheres ............................15 Helpdesk ..........................16...
-
Page 5: Introduction To Slam® Hornet Emergency
5/16 Introduction to Slam® Hornet Emergency (Certification N:o VTT 08 ATEX 030X) This instruction manual guides you through the process of selecting and adopting Slam® Hornet Emergency work light at your work site. The manual regards the following Slam® Hornet Emergency type: 1.1 Technical data Slam®... -
Page 6: Standard Unit Construction
6/16 = Valid production quality system approved and notified by VTT (Finnish Notified Body, 0537 listed by EC) = Certified for explosion hazardous areas II = Certified for use in areas excluding mines 2 = Equipment category (suitable for Zone 1&21 and Zone 2&22) G = Certification taking account explosion hazardous GASES D = Certification taking account explosion hazardous DUSTS Explanation of marking for explosion hazardous area due to Gases (Ex e ib mb IIC T3... -
Page 7: Quality Guaranteed
Other common accessories (optional): Antistatic protective film for PC tube against chemical splashes and other substances Adjustable hanging straps for light fixing. To view options on accessories, please visit http://www.atexor.com for further study or call +358 20 734 3250. 1.4 Quality guaranteed 1.4.1 General... -
Page 8: Individual Testing Reports
8/16 1.4.2 Individual testing reports Each CentaurSlam®–unit has its own individual serial number and is provided with an original, individual testing report when leaving the factory. The year of manufacture is specified on the type label of the equipment. Following tests have been done for Slam® Hornet–units according to standards relating to portable luminaries for explosion hazardous area. -
Page 9: Application Of Use (Zone Xx) In Accordance With Equipment Category
9/16 Slam® -units are designed and tested for portable use. 2.1.2 Application of use (Zone XX) in accordance with equipment category Operator has the best knowledge of area classification at his site. To help the operators’ selection of equipment the certification is describing the equipment category. For explosion hazardous areas there are three equipment categories. -
Page 10: Operating Instructions
10/16 Selection and use of equipment is always under the responsibility of the operator. Please note that all of the aforementioned criteria are to be fulfilled when selecting the equipment. Please do not take any unnecessary risks. Operating instructions 3.1 Personnel The use of the equipment is to be controlled and accepted by the operator. -
Page 11: Connection To The Supply
Please observe the type label for further data. 3.6 Adding accessories to Slam® Hornet Atexor provides a number of different accessories but in case you afterwards want to add accessories of your own for the Slam® Hornet Emergency–unit, please note the following points: 1. -
Page 12: Special Operating Features Of Slam® Hornet Emergency
12/16 4) The in-built socket is only for chaining Slam® Hornet Emergency -units. 5) Fix them with accessories you have selected 6) Take the chain into Ex –area Amount of lights which may be connected with each other depends on the supply voltage. Here you may see general guide-lines for linking with 5 m 3x1.5mm (or 3x2.5mm ) cable each:... -
Page 13: Function Diagram
13/16 3.8.1 Function diagram Both lamps off. No indicators Connect lamp to (battery is charging if Both lamps off power supply necessary) Push Push Push Push powerbutton powerbutton powerbutton powerbutton Both 18W and 40W lamp Power failure Battery backup: illuminates. 18W lamp illuminates (battery is charging if Power recovered... -
Page 14: Testing
14/16 3) Only original spare parts from the manufacturer should be used. Please note that there are no components in this unit which can be repaired by using glue, silicone or any other similar method. 4) The green colour on transparent parts of Slam® Hornet Emergency may be damaged because of external affects like solvents or chemicals or mechanical stress. -
Page 15: More Information About The Use Of Electrical Apparatus For Explosive Gas Atmospheres
15/16 4.6 More information about the use of Electrical Apparatus for Explosive Gas Atmospheres Please observe the requirements of the valid standards of the day. Please study at least the following standards: EN 60079-14 (Electrical installations in hazardous areas) EN 60079-10 (Classification of hazardous areas) EN 60079-17 (Inspection and maintenance of electrical installations in hazardous areas) EN 60079-19 (Repair and overhaul for apparatus used in potentially explosive atmospheres) -
Page 16: Helpdesk
16/16 Helpdesk Under any doubt or question, please contact your local distributor or the manufacturer. Contact details: Phone: +358 20 734 3250 Fax: +358 20 734 3299 Email: info@atexor.com Web: http://www.atexor.com...
