Instructions for Safe Use
Certification N:o VTT 15 ATEX

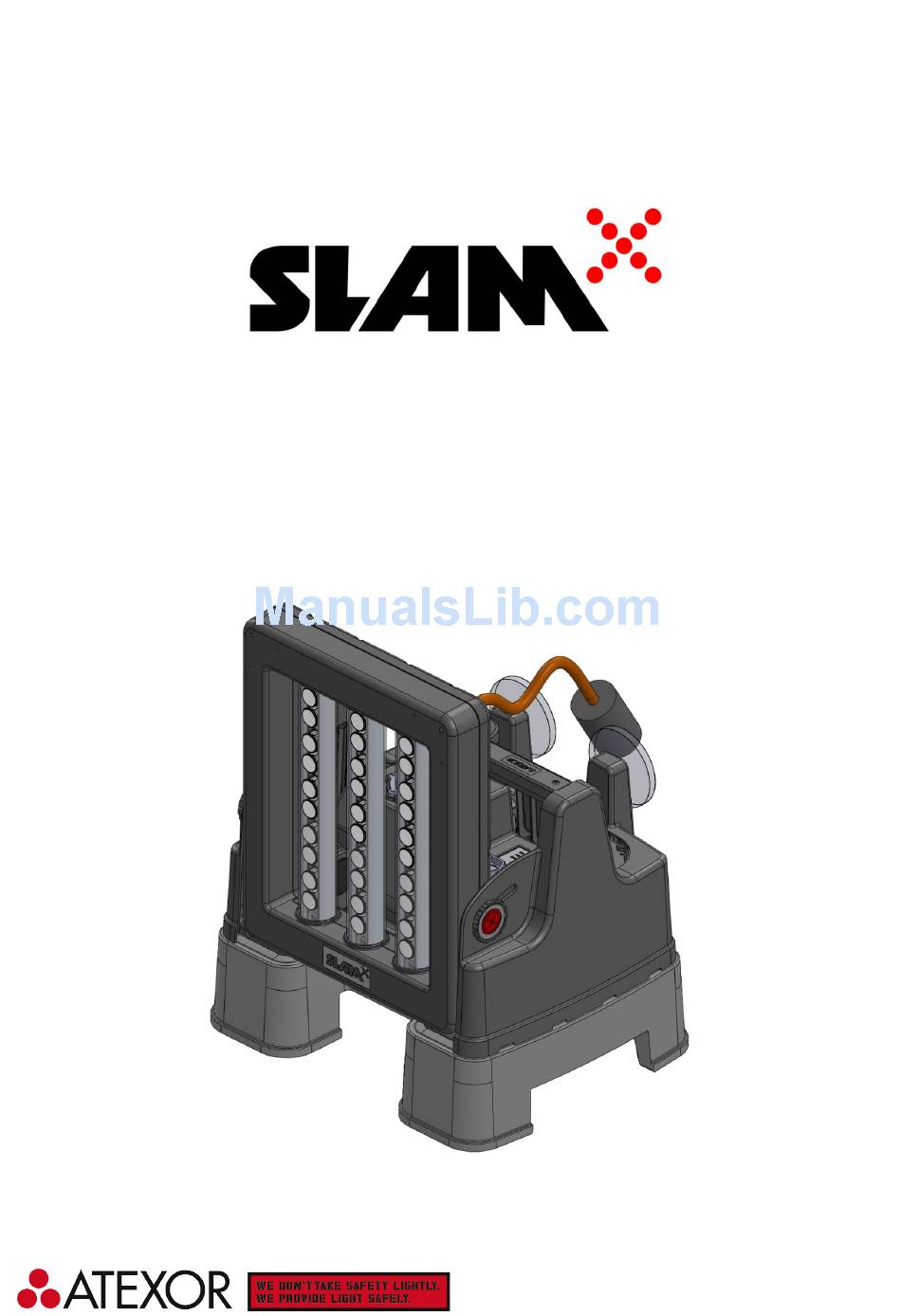

Thank you for choosing SLAM Star –portable work light for your job site. Purpose of this
manual is to provide you all the necessary safety and product information to conduct your job
conveniently and without any risks for health and safety.
Star
077X
and IECEx by VTT
SLAM Star
Atexor Oy Seinäjoki • P.O.Box 89 • FIN-60101 Seinäjoki • FINLAND
www.atexor.com • Tel: +358 20 734 3250
Trade Reg. No. 486.515 • VAT No. FI08370823
Advertisement
Table of Contents
Related Manuals for Atexor SLAM Star
Summary of Contents for Atexor SLAM Star
- Page 1 077X and IECEx by VTT Thank you for choosing SLAM Star –portable work light for your job site. Purpose of this manual is to provide you all the necessary safety and product information to conduct your job conveniently and without any risks for health and safety.
-
Page 2: Table Of Contents
Special attention on 2-pole use (24 V or 42 V) ................. 8 Connection to the supply ........................8 3.6.1 Requirements for supply (electricity) ..................... 8 Adding accessories to SLAM Star ..................... 9 Linking luminaires in series ....................... 9 Inspection and maintenance ........................11 After Use ............................11 Repair .............................. -
Page 3: Introduction
3/12 Introduction This instruction manual guides you through the process of selecting and adopting SLAM Star work light at your work site. 1.1 Technical data Dimensions Weight without cable and accessories: 10 kg Ambient temperature range: -20 °C … +40 °C 1.2 Unit construction... -
Page 4: Certification Of Equipment
The equipment is to be used properly and according to its ratings, documentation and local applicable laws. Local, national certificates of the unit may exist outside the region of EU. The aforementioned SLAM Star is certified as follows. You may find brief explanation of certificate beneath. -
Page 5: Quality Guaranteed
1.4.2 Individual test report Each SLAM Star unit has its own individual serial number and is provided with an original, individual test report when leaving the factory. The year of manufacture is specified on the type label of the equipment. Following tests have been done for SLAM Star units according to standards relating to portable luminaries for explosion hazardous area. -
Page 6: Prior To Use
If the certification does not mention portable it means that the equipment shall not be moved when it is in operation (reliable fixing of equipment). SLAM Star is designed and tested for portable use 2.3 Application of use (Zone XX) in accordance with equipment category Operator has the best knowledge of area classification at his site. -
Page 7: Environmental Criteria
7/12 SLAM Star has Temperature Class T4 (Gases) 2.6 Environmental criteria Please observe the ambient temperature of the application because certification is valid for temperatures between -20 °C…+40 °C. If the equipment is used in other temperatures the safety cannot be guaranteed. -
Page 8: Operating Instructions
3.2 Storage SLAM Star units should be stored in a dry place within normal operating temperatures ie. -20 °C…+40 °C. The units should not be stored in direct sunlight. -
Page 9: Adding Accessories To Slam Star
Supply Amount of Type of luminaire voltage luminaires 230 V SLAM Star 110 V SLAM Star 42 V SLAM Star 24 V SLAM Star If you want to link SLAM Star with other SLAM luminaires, contact sales for further information. - Page 10 Please refer to local applicable laws and requirements for electrical installations. The SLAM Star control gear protects itself against excessive voltage drops (numerous linking) by switching itself off. If too many units are connected to the chain, some units of the chain will switch...
-
Page 11: Inspection And Maintenance
5) Store the unit (see 3.2 Storage) 4.2 Repair The following procedure should be taken in case the SLAM Star unit needs to be repaired 1) Repairs may be carried out only outside Ex –area 2) Person responsible for maintenance should have been trained the basics of explosion- protection as well electricity 3) Only original spare parts from Atexor should be used. -
Page 12: More Information About The Use Of Electrical Apparatus For Explosive Gas Atmospheres
EN/IEC 60079-19 (Repair and overhaul for apparatus used in potentially explosive atmospheres) Help desk Under any doubt or question, please contact your local distributor or the manufacturer. Manufacturer contact details Phone: +358 20 734 3250 Fax: +358 20 734 3299 info@atexor.com www.atexor.com...
