Servus Pedale GLAM Manual

Programmable analog high gain distortion
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Servus!Pedale
Kaiserstraße 32-34
63065 Offenbach am Main
Germany

Advertisement

loading
Need help?

Need help?

Do you have a question about the GLAM and is the answer not in the manual?

Questions and answers

Related Manuals for Servus Pedale GLAM

Summary of Contents for Servus Pedale GLAM

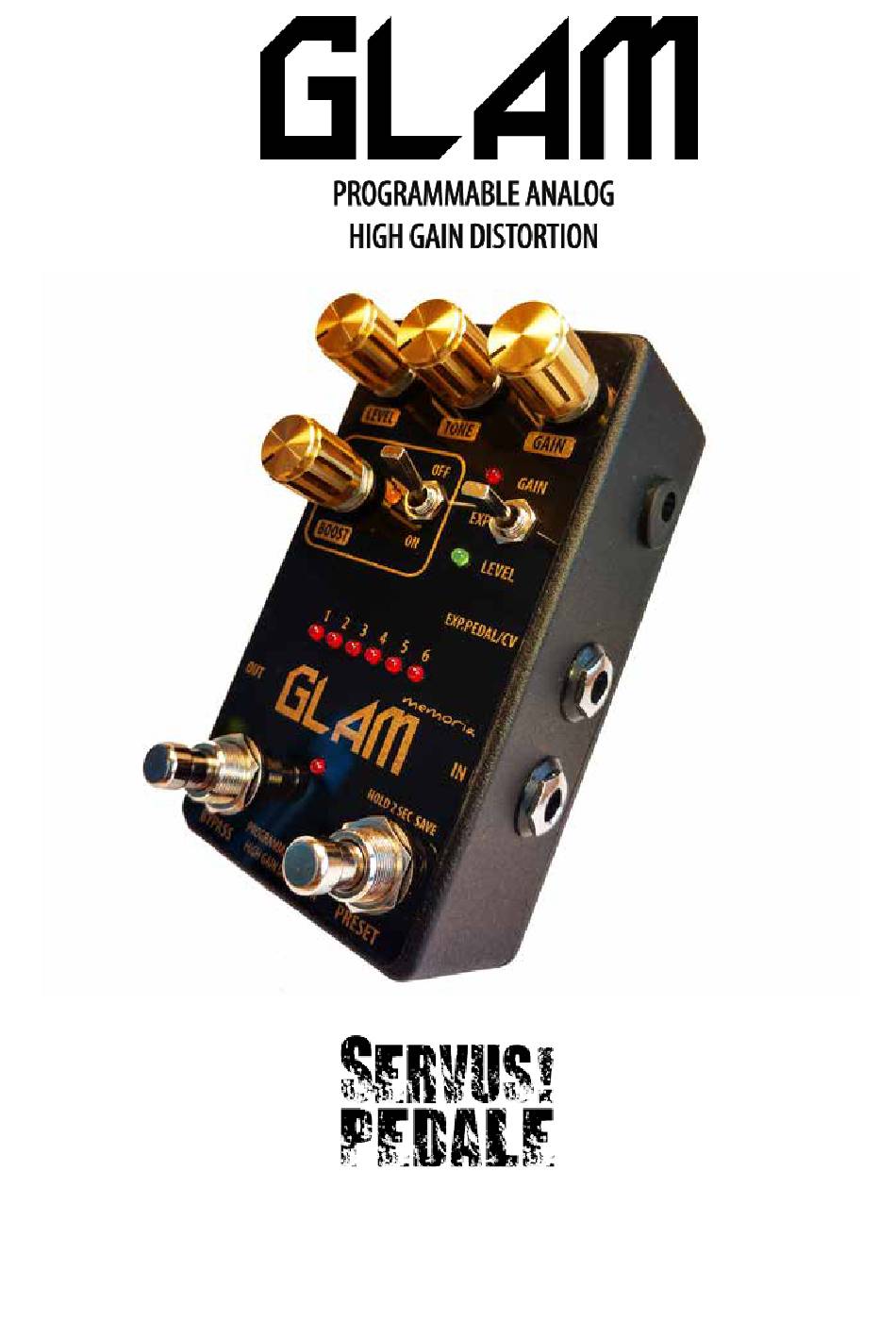

  • Page 1 Servus!Pedale Kaiserstraße 32-34 63065 Offenbach am Main Germany...
  • Page 2 1-Level control 7-Exp.pedal/CV input 2-Tone control 8-Effect input 3-Gain control 9-Effect output 4-Boost level 10-Active preset 5-Boost ON/OFF switch 11-Effect bypass ON/OFF 6-Expression pedal/CV 12-Select/Save Preset switch 13-9VDC input...

  • Page 3: Power Supply

    WELCOME Thank you for purchasing our GLAM. This guide will help you to discover all its functions. POWER SUPPLY The pedal can be powered via an external power supply (9VDC negative center pin). We recommend to only use power supplies regulated at 9VDC in order to avoid noises and pos- sible malfunctions of the pedal.

  • Page 4: Basic Controls

    BASIC CONTROLS -LEVEL: Controls the overall volume of the pedal. -TONE: Classic tone control. Turn clockwise to boost high frequency range and counterclockwise to attenuate it. -GAIN: Sets the saturation produced by the effect. -BOOST: Controls the level of the boost. The boost section is placed after the gain section and adds an extra +15dB of clean boost.

  • Page 5: Save And Recall Presets

    6): On preset 6 the parameters matches the current knob positions. NOTE: The GLAM uses a digital microcontroller to control analog signals. That means when a new preset is recalled, the actual physical knobs and switches stay as they were and their positions may or may not match with the stored parame- ters.
  • Page 6 OFF. This operation will switch off the boost section (led OFF). RELAY TRUE BYPASS The Glam uses a a Relay True Bypass system. This system uses a clickless switch, a PIC microcontroller and a high quality relay to do the bypass operation.
  • Page 7 The number of available presets can be increased from 6 to 640 with the use of program change messages. To connect a MIDI controller to the Glam a 3.5mm to 5 DIN MIDI adapter is needed. You can buy this adapter on our shop.
