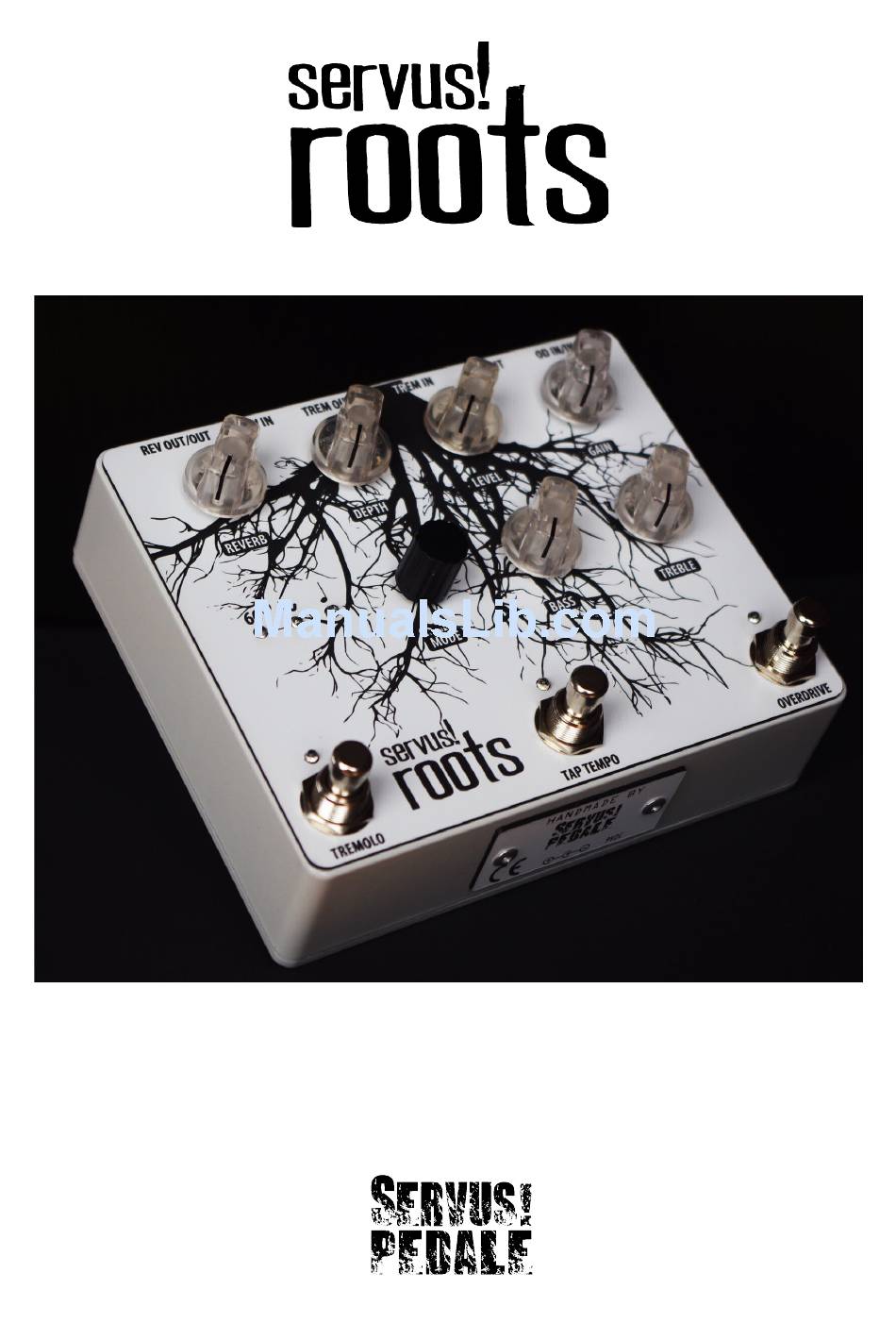

- Page 1 User Manual Servus!Pedale Würffelstr.7 21073 Hamburg, Germany www.servuspedale.com...
-
Page 2: Power Supply
You are responsible to ship the pedal to us. WELCOME Thank you so much for purchasing an original Servus! Roots. This pedal is handmade and consists only of high quality components. Please consider the following notes and instructions and over all -... - Page 3 OVERDRIVE Offers from a clean boost until an elegant distortion -Level: Controls the output level of the overdrive. -Gain: Controls de saturation produced by the effect. -Bass and Treble: Classic two bands tone control. TREMOLO The optical tremolo is based in a vactrol optocoupler. The tromolo is digitally controlled in order to obtain a major range of posibilites.
- Page 4 -Sawtooth: -Triangle: -Square: Subdivision mode: You can choose between ten different note subdivisions. Once the subdivision mode is selected the potentiometer can be turned left or right in order to change subdivsions. Here is a table of the available subdivisions: Subdivisions Whole note (4x slower than base tempo) Dotted half note (3x slower than base tempo)
- Page 5 Depth: This potentiometer affects the amount of the tremolo effect affecting the signal. Reset default: In order to reset the default value of each mode keep on pressing the mode button during at least two seconds. If this is realized while being in the tempo mode the tempo will reset to the last tapped tempo.
- Page 6 Example: In this setup all three effects are in chain (OD->Tremolo->Reverb) Example: In this setup you have the overdrive and tremolo in series. The reverb is connected to the amp’s FX loop.
