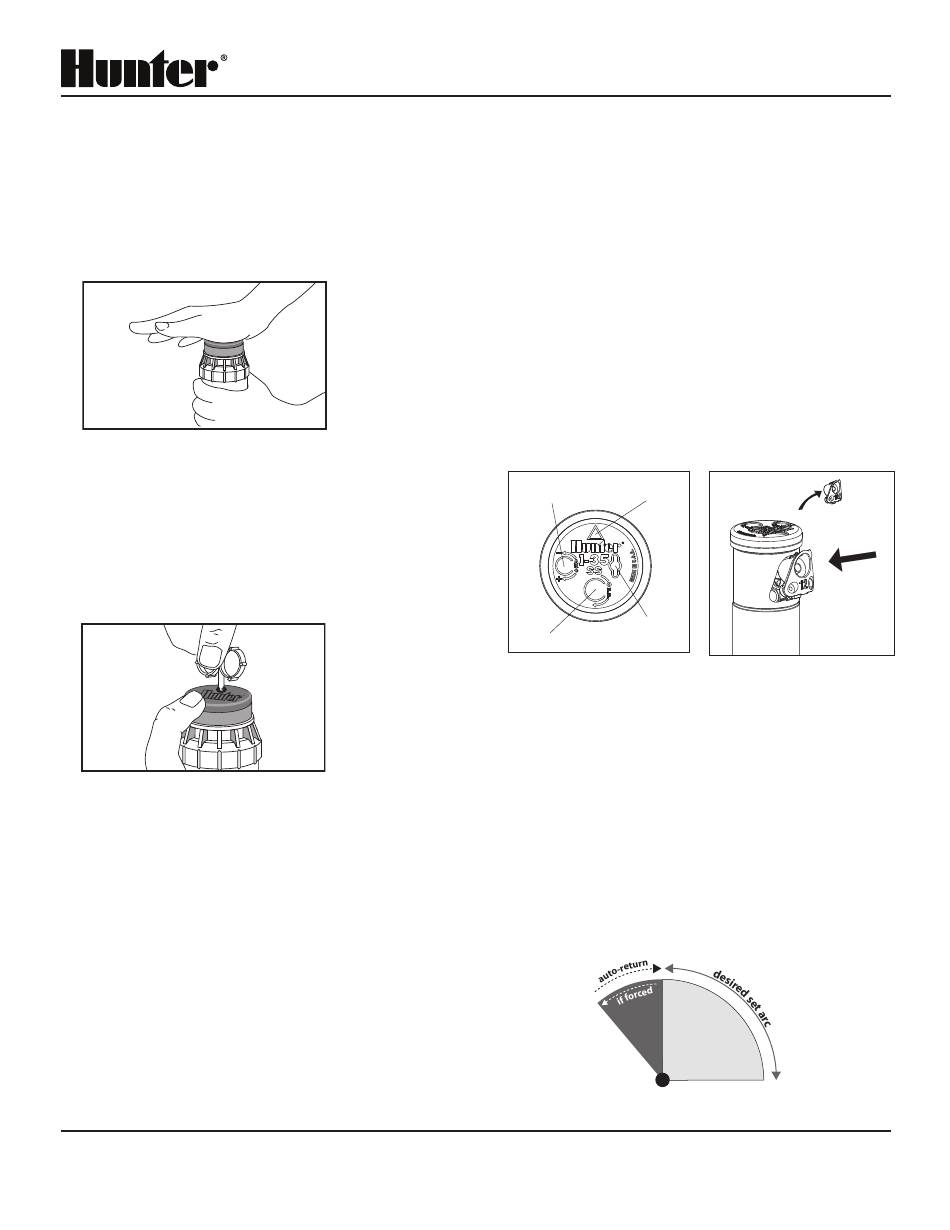

Hunter Institutional Series I-35 Manual

ARC ADJUSTMENTS
(NoN-oppoSiNg NozzlE MoDEl)
All I-35 group adjustable heads are preset to approximately 180°.
Sprinklers may be adjusted with water on or off. It is recommended
that initial adjustment be made before installation.
1. Using the palm of your hand, rotate the nozzle turret counter-
clockwise to left stop to complete any interrupted rotation cycle
(Fig. 1).
2. Rotate the nozzle turret clockwise to right stop. This is the fixed
side of the arc. The nozzle turret must be held in this position
for all arc adjustments.
To increase Arc
1. Insert the key end of the Hunter wrench into the adjustment
socket (Figs. 2 & 3).
2. While holding the nozzle turret at the right stop, turn the
wrench clockwise. Each 360° turn of the wrench increases the
arc 45°.
Fig. 1
3. Adjust to any arc between 50° and 360°.
4. Wrench will stop turning, or there will be a ratcheting noise,
when the maximum arc (360°) is reached.
5. When set to 360°, the sprinkler will rotate continually
counterclockwise.
To Decrease Arc
1. Insert the key end of the Hunter wrench into the adjustment
socket (Figs. 2 & 3).
2. While holding the nozzle turret at the right stop, turn the
wrench counterclockwise. Each 360° turn of the wrench
decreases the arc 45°.
3. Adjust to any arc between 50° and 360°.
4. Wrench will stop turning, or there will be a ratcheting noise,
when the minimum arc (50°) is reached.
Radius Adjustment
Insert the hex end of the Hunter wrench into the nozzle-retainer/
range-adjustment screw (Figs. 2 & 3). Turn the screw clockwise
Hunter Industries Incorporated • The Irrigation Innovators
www.hunterindustries.com
™
Institutional Series
Fig. 1
Fig. 2
into the stream of water to decrease the radius, or counterclockwise
to increase the radius.

precipitation Rate Adjustment

Where excessively wet or dry areas are a problem, the
precipitation rate may be adjusted. Simply replace the existing
nozzle with a larger one to increase or a smaller one to decrease
the rate of precipitation.

Nozzle installation

1. Insert the key end of the Hunter wrench into the lifting socket
of a pop-up sprinkler. Pull the riser up to gain access to the
nozzle socket.
2. Using the Hunter wrench, loosen the nozzle-retainer/range-
adjustment screw. If a nozzle is already installed in the
sprinkler, it may now be removed by briefly turning on
the water.
3. Discard nozzle if removed with pliers. Slip the desired nozzle
Fig. 2
into the nozzle socket. Note that the socket is angled up 25°
(see Fig. 4). Tighten the nozzle-retainer/range-adjustment screw.
Nozzle Retainer/
Arc Adjustment Range Adjustment
Direction Screw
Lift Up
Socket
FloStop
®
NoN-STrIppable backdrIve
This Ultra sprinkler is designed with an internal device that
prevents damage to the internal gear drive if it should be
turned by vandals. This important feature works when the
nozzle turret is turning in either direction. This makes the
sprinkler very durable in all applications.
auTo arc reTurN
This Ultra sprinkler is designed with an internal device that
re-aligns the arc if it is turned by vandals. This important
feature works when the nozzle turret is turning in either
direction. When forced outside of the originally set arc, the
sprinkler takes the shortest path back to the pattern without
going completely around. This saves the non-irrigated areas
from getting wet! Always a good thing!
Gear-Driven Sprinklers
Fig. 3
© 2009 Hunter Industries Incorporated
P/N 701062 LIT-420
i-35
Water
flow
Fig. 4
B 11/09
