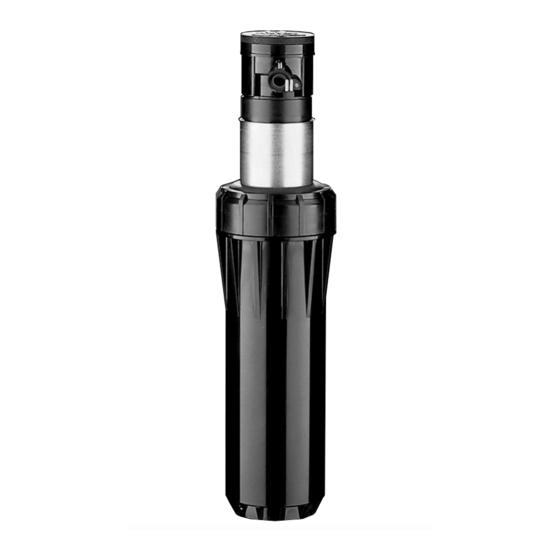

- Page 1 P R O D U C T I N F O R M A T I O N I-60 Rotors A Large Turf Rotor Engineered to Meet the Demanding Needs of Systems with Lower Pressures and Smaller Budgets...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Overview ..................3 Product Features and Benefits ..............4 Product Comparisons ..................7 Nozzle Replacement Guide ................8 Technical Information ................... 8 Product Performance ..................9 Installation Details ..................10 Installation & Arc Adjustment ..............11 Distribution Analysis (No. -
Page 3: Product Overview
There’s no better value on the market than Great for low pressure retrofit applications the Hunter I-60 and, with its patented as well. The I-60 rotor is setting new ® Precision Distribution Control... -
Page 4: Product Features And Benefits
Six Interchangeable Nozzles… PRODUCT FEATURES Truly uniform coverage and fast AND BENEFITS identification With every sprinkler in the I-60 group you Patented Precision Distribution get six free interchangeable nozzles that Control ® … accurately go the distance. The nozzles Assures even coverage at low pressures range from 50-66 feet (15.2-20.1 m) and from 6.5-20.4 gpm (1.48 - 4.63 m /hr) - Page 5 Adjustable Arc Rotor (I-60-ADS) is an “all-in-one” sprinkler. With its 40˚ to 360˚ Adjustable Arc, most odd shaped areas can be irrigated with a quick turn of the Hunter wrench. The I-60 can be adjusted up or down, wet or dry, for maximum convenience.
- Page 6 5 Year Warranty… ™ VStat , the I-60 is provided up to twice the Hunter Industries backs up the products driving force to the gear drive while adding years to the sprinkler’s life. This is A full five-year warranty by Hunter accomplished through the stator’s patented...
-
Page 7: Product Comparisons
PRODUCT COMPARISONS HUNTER TORO ® ® RAIN BIRD ® RAIN BIRD ® NELSON ® NELSON ® F E AT U R E S I-60 2001 Falcon Talon 7000 7500 ✓ Precision Distribution Control ® ✓ 50'-62' Radius at 40 psi ✓... -
Page 8: Nozzle Replacement Guide
NOZZLE REPLACEMENT GUIDE To Replace: Rainbird Falcon Use I-60 Nozzle To Replace: Nelson 7000 & 7500 Use I-60 Nozzle ➟ ➟ ( Lt. Blue ) ( Orange ) ( Orange ) ➟ ➟ ( Dk. Green ) ( Green ) ( Green ) ➟... -
Page 9: Product Performance
Pressure, flow rate and radius data for this product were determined and listed in accordance with ASAE Standard S3981. *Standard nozzle installed. To measure pressure at the nozzle of a I-60 or any rotor sprinkler, order Hunter rotor pressure gauge kit part # 122900. -
Page 10: Installation Details
INSTALLATION DETAILS Installation Height The I-60 sprinkler should be installed at finish grade as shown in the illustration. Installation Detail FINISH GRADE RUBBER COVER MODEL I-60 GEARED ROTOR 1" STREET ELLS 1" SCH 80 NIPPLE (LENGTH AS REQUIRED) 1" STREET ELL PVC TEE PVC LATERAL LINE ®... -
Page 11: Installation & Arc Adjustment
" Allen. Preparation Unscrew the body cap from the body of the sprinkler. Remove the body cap. Using the key end of the Hunter wrench, pull up on the riser assembly to remove it from the body. Remove the filter screen. Place the riser assembly’s lower end into the base of riser service tool p/n 279100. Press the tool’s metal bar down over the riser spring. -
Page 12: Distribution Analysis (No. 7-20 Nozzles)
DISTRIBUTION ANALYSIS Hunter's Testing Philosophy The following five sets of distribution analysis for the new I-60 are from Hunter's state-of-the-art testing lab. Hunter Industries routinely submits products to The Center for Irrigation Technology for independent testing. We use CIT's test results to verify our own and to make our performance available to the public through their computer software programs. - Page 13 I-60 Nozzle #10,13 Precipitation 0.29 Rate In/Hr 0.22 0.14 0.07 Model: I-60-36S Distance From Head (in feet) Nozzle: 10 (green) Flow: 8.96 GPM SC = & DU = for Equilateral Spacing Pressure: 40 PSI SOR: 2:37 min. Radius: 55 feet Head feet Equilateral Spacing (in feet)
- Page 14 DISTRIBUTION ANALYSIS I-60 Nozzle # 13, 15 Precipitation 0.56 Rate In/Hr 0.42 0.28 0.14 Model: I-60-36S Distance From Head (in feet) Nozzle: 13 (blue) SC = & DU = for Equilateral Spacing Flow: 12.69 GPM Pressure: 50 PSI SOR: 2:35 min. Radius: 59 feet Head...
- Page 15 I-60 Nozzle # 18 Precipitation 0.72 Rate In/Hr 0.54 0.36 0.18 Model: I-60-36S Distance From Head (in feet) Nozzle: 18 (red) SC = & DU = for Equilateral Spacing Flow: 15.16 GPM Pressure: 40 PSI SOR: 2:10 min. Radius: 59 feet 1.05 Head feet...
- Page 16 DISTRIBUTION ANALYSIS I-60 Nozzle # 20 Precipitation 0.72 Rate In/Hr 0.54 0.36 0.18 Model: I-60-36S Distance From Head (in feet) Nozzle: 20 (brown) SC = & DU = for Equilateral Spacing Flow: 16.43 GPM Pressure: 40 PSI SOR: 2:32 min. Radius: 57 feet 1.15 .91...
-
Page 17: Replacement Parts
I-60: GEAR-DRIVEN SPRINKLERS REPLACEMENT PARTS Item Description Part No. Body Cap Assembly 431700 Rubber Cover Screw (2 Required) 334000 Rubber Cover Assembly ADS (Black) 420300 36S (Black) 420400 ARS (Purple) 420305 3RS (Purple) 420405 Riser Assembly 432020 Includes Riser, Retractor Spring, 431820 Spring Seat, Seal, Filter Screen and ARS 432120... -
Page 18: Installation Cost Comparisons
I-60 rotors. 1. Booster pump to increase pressure Also, the yearly costs of a booster pump in at the park the system after the first year will be 2. Hunter I-60 Rotor as a replacement for approximately $877. existing rotors... - Page 19 A city has decided to specify the installation the I-25 or the I-60 option is installed. of 100% Hunter product in a new park. The difference is only slight, with the I-60 The park has 76 psi available static water system coming in just $161 less.
- Page 20 Hunter I-60. CALCULATIONS MATERIAL COST RATIO ESTIMATE: The I-25 system will require 23.2% more material.
-
Page 21: Precipitation Rate And Run Time Formulas
PRECIPITATION RATE FORMULA Two formulas are shown below, the first is most useful when comparing precipitation rates between different types of sprinklers or calculating precipitation rates on areas with a single type of sprinkler and uniform head and row spacing. The second method is better suited to areas where sprinkler head flows or spacing varies. - Page 22 NOTES...
- Page 24 Hunter Industries Incorporated • The Irrigation Innovators 1940 Diamond Street • San Marcos, California 92069 • TEL: (1) 760-744-5240 • FAX: (1) 760-744-7461 © 2001 Hunter Industries Incorporated www.HunterIndustries.com P/N 700696 LIT-292.PDF 6/00...
