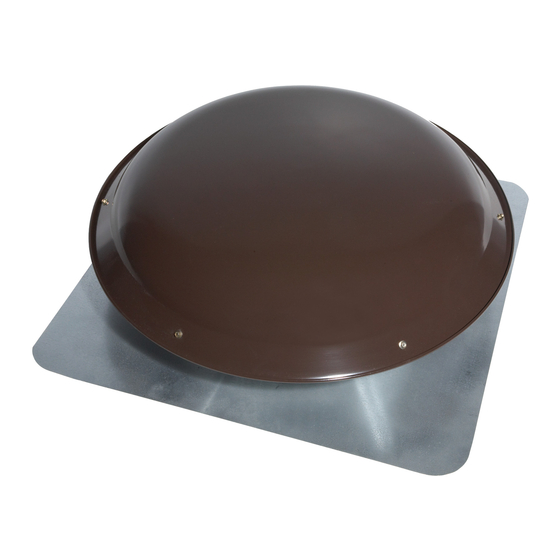

Roof-mount powered attic ventilator

Advertisement

ROOF-MOUNT
POWERED ATTIC VENTILATOR
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service discon-
necting means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equip-
ment to prevent backdrafting. Follow the heating equipment
manufacturer's guidelines and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authori-
ties.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. The wiring must be permanent. DO NOT USE AN EXTEN-
SION CORD! Use 14 GA. MINIMUM copper wire. Although
the Powered Attic Ventilator may be wired directly to power,
we advise that some type of shut off switch be installed in the
line. Please see the section on electrical wiring for suggested
wiring diagrams and instructions.
7. This unit must be grounded.
TOOLS AND MATERIALS REQUIRED
Slotted Screwdriver
Drill
1/4" Drill Bit
Sabre Saw or Keyhole Saw
Hammer
Ruler
Pencil
Utility Knife
Pry Bar (to remover roofing nails)
Roofing Cement
Galvanized Roofing Nails (1¾" min.)
Electrical Supplies (to comply with codes)
CAUTION
1. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. This unit has an unguarded impeller. Do not use in locations
readily accessible to people or animals.
4. Fan is equipped with a thermostat which may start fan automati-
cally. To reduce risk of injury or electric shock while servicing
or cleaning unit, switch power off at service panel and lock
service panel to prevent power from being switched on ac-
cidentally. When the service disconnecting means cannot be
locked, securely fasten a prominent warning device, such as
a tag, to the service panel.
5. Home Ventilating Institute (HVI) recommends one square foot
of open air inlet per 300 cfm of fan capacity. The best location
for these air intake vents are under the eaves with direct ac-
cess to the attic. Failure to provide these intakes could cause
natural-draft gas appliances to backdraft.
6. Your attic fan installation will create a screened opening into
your attic space. During a heavy rain storm there could be a
light spray of rain into this attic space. This is a normal condi-
tion with all attic ventilators and will not cause any damage to
the structure. We recommend that you do not store any valu-
able articles directly under the fan opening in the roof. During
extreme rain and wind storms you may want to turn on your
attic ventilator to prevent excess moisture accumulation in your
attic.
7. Records show, under ideal conditions, exposed galvanized steel
can remain rust free up to 100 years. For best protection, the
exposed portion of the roof sheet should be painted, especially
in areas of unusually high industrial air pollution. Follow paint
manufacturer's instructions for good adhesion.
8. This ventilator is intended for roof installation. The Broan Model
353 Gable Mount Ventilator is available for side wall applica-
tions.
9. The dome may be painted with a high-quality paint. Follow
the paint manufacturer's recommendations for powder-coated
steel.
10. Please read specification label on product for further informa-
tion and requirements.
MODEL 349BR
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 349BR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NuTone 349BR

  • Page 1 MODEL 349BR Page  ROOF-MOUNT POWERED ATTIC VENTILATOR READ AND SAVE THESE INSTRUCTIONS CAUTION WARNING 1. For general ventilating use only. Do not use to exhaust hazard- TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY ous or explosive materials and vapors. TO PERSONS, OBSERVE THE FOLLOWING: 2. To avoid motor bearing damage and noisy and/or unbalanced 1. Use this unit only in the manner intended by the manufacturer. impellers, keep drywall spray, construction dust, etc. off power If you have questions, contact the manufacturer at the address unit.
  • Page 2 MODEL 349BR Page  INSTALLATION 3. Drill a guide hole through the roof at this mark. 1. Locate the ventilator at the center of the rear slope of the roof. Place it as high on the roof as possible. The location should be free of obstacles (T.V. leads, electrical lines, etc.) If the ventilator top is level with the roof peak, 4. Cut out the template found on the carton. it can't be seen from the street. Keep this approximate location in mind as you work from within the attic. 5. Push a large nail through the center of the cardboard template and into the guide hole. Using the large half of the template, draw a 17 " diam- eter circle on the shingles. 2. Mark a spot halfway between rafters.
  • Page 3 MODEL 349BR Page  6. Cut out the shingles inside of the circle. 9. Cut out the roof board(s) inside of the line. Do not cut rafters. 10. For proper removal of roofing nails, draw a 25 " square, 7. Replace template over guide hole and draw a 14 "di- centered around the hole. Remove nails holding shingles ameter circle on the black paper or roof boards using the down from top two-thirds of square. smaller half of the template. 11. Slide the flashing under the shingles. Start two-thirds of the way down from the top of the 25 " square. Do 8. Drill a large starting hole for the sabre saw just inside of not bend the shingles any more than necessary. Center the line. the ventilator over the hole.
  • Page 4 MODEL 349BR Page  WIRING IMPORTANT: Do not mount outlet box near heat source. 1. Mount the outlet box to a nearby rafter so that the outlet box is higher than the fan motor. BLACK BLACK FROM HOUSE FROM MOTOR CABLE HOUSE FROM CABLE FAN MOTOR 12. Carefully lift shingles and nail flashing securely to the GROUND roof using galvanized roofing nails. WHITE FROM MOTOR AND HOUSE CABLE CAUTION: Make sure fan and switches are properly grounded and all wiring complies with local electrical code requirements.
  • Page 5 BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.
