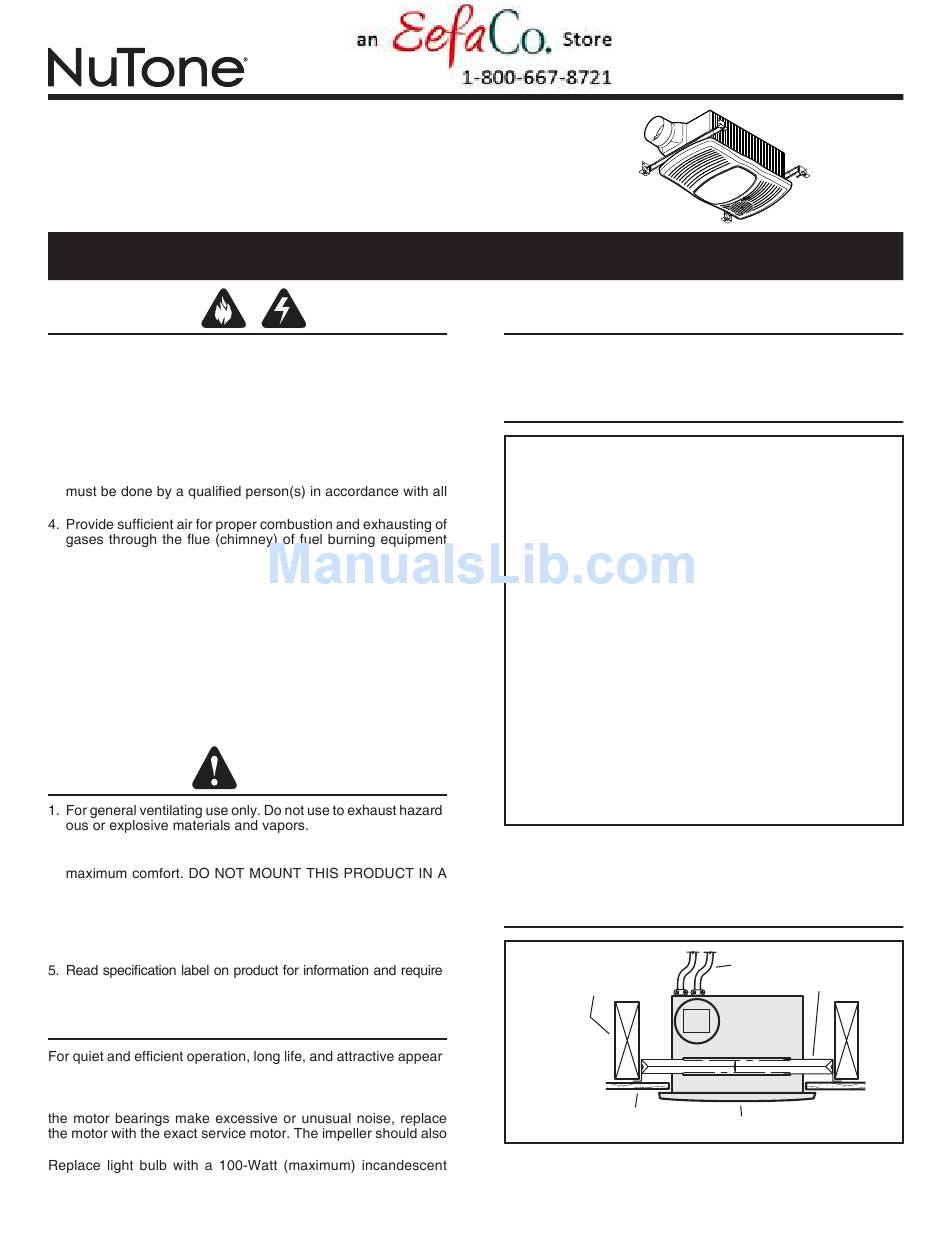

NuTone 765hl Instruction Manual

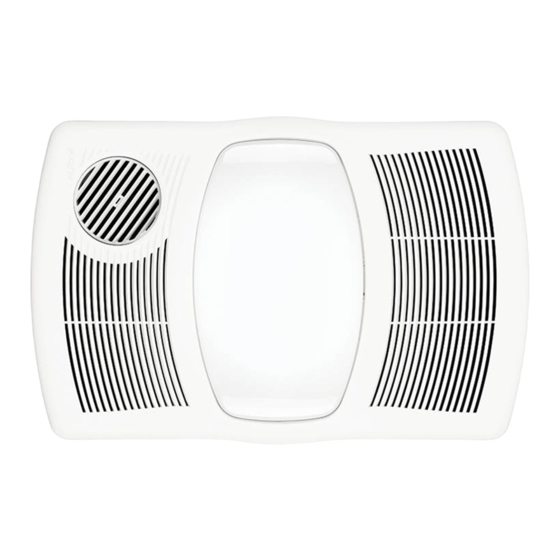

VENTILATION FAN
WITH HEATER & LIGHT
READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-
JURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel. Lock or tag service panel to prevent power from being
switched on accidentally.
3. Installation work and electrical wiring (including switch location)
applicable codes and standards.
to prevent backdrafting. Follow the combustion equipment
standards such as those published by the National Fire Pro-
tection Association (NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and
local codes.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Provide a separate 20 AMP circuit. Use 12 GA., 90
power cable which meets code.
8. Do not use a speed control with this product.
9. This unit must be grounded.
CAUTION
2. THIS PRODUCT MUST BE MOUNTED IN A FLAT CEILING
ONLY. Installations in ceilings 9-feet high or less will provide
WALL.
3. Install in ceiling only - at least 6 inches from any wall.
4. To avoid motor bearing damage and noisy, unbalanced impel-
lers, keep drywall spray, construction dust, etc. off motor and
impeller.
ments.
CLEANING & MAINTENANCE
ance - lower or remove grille and vacuum interior of fan with a
dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If
be replaced.
light bulb.
REGISTER YOUR PRODUCT ONLINE AT
www.nutone.com/register

OPERATION

Use a 3-Function Control to operate the heater, fan, and light
separately. See "Connect Wiring" for details.

WARRANTY

Broan-NuTone warrants to the original consumer purchaser of its products that such products
will be free from defects in materials or workmanship for a period of one year from the date
of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without
charge, any product or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND
TUBES. This warranty does not cover (a) normal maintenance and service or (b) any
products or parts which have been subject to misuse, negligence, accident, improper
maintenance or repair (other than by Broan-NuTone), faulty installation or installation
contrary to recommended installation instructions.
The duration of an implied warranty is limited to the one-year period as specified for the
express warranty. Some states do not allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S
OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER
o C minimum
THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CON-
SEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH
PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which
vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone
number stated below, (b) give the model number and part identification and (c) describe
the nature of any defect in the product or part. At the time of requesting warranty service,
you must present evidence of the original purchase date.
-
Installer: Leave this manual with

TYPICAL INSTALLATION

-
JOIST, TRUSS,
-
Housing mounted to joists, trusses, or I-joists.
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
the homeowner.
CEILING
OR I-JOISTS
CEILING
GRILLE
MATERIAL
Up to 24-inches on-center.
MODEL 765HL
Page 1
POWER
MOUNTING
CABLES
CHANNELS
HOUSING
