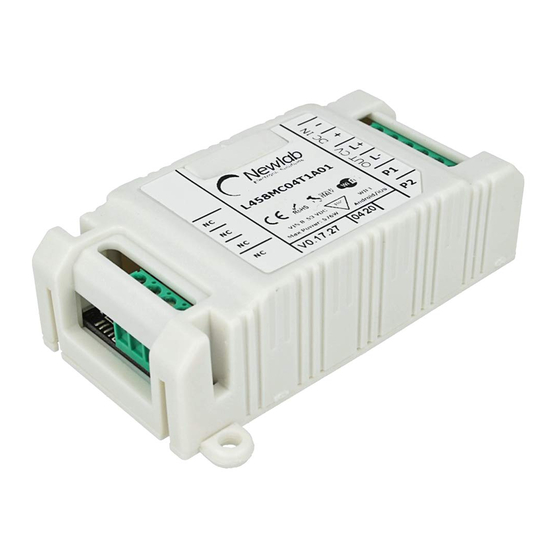

- Page 1 User Manual L458MC04T1A01 USER MANUAL L458MC04T1A01 SUBJECT INDEX: DESCRIPTION TECHNICAL SPECIFICATION DEVICE POWER SUPPLY AND CONNECTION TO THE LED MODULE PUSH MODE WIFI MODE + PUSH FACTORY RESET NEWLAB - User Manual L458MC04T1A01...
- Page 2 - Standard Dimension 40x80x24.45 mm. - Dimension with accessories 40x100x24.45 mm. - Works with Hey Google. - Compatible with Amazon Alexa Voice Assistant through the skill Newlab. - Works with IFTTT. - Open circuit protection. - To supply the device you have to use a SELV power supply in order to maintain the required elettrical security level.
- Page 3 User Manual L458MC04T1A01 - IFTTT and all related marks are trademarks of IFTTT Inc. or its affiliates. NEWLAB - User Manual L458MC04T1A01...
- Page 4 User Manual L458MC04T1A01 CODE INPUT (MAX) OUTPUT N. OUTPUT MAX OUTPUT CONTROL CASE DIMENSION VOLTAGE CURRENT CHANNELS POWER INPUTS L458MC04T1A01 8-53V DC 576W at 48V DC Insulated Push button x1 40x80 Wifi x1 h 24.45 NEWLAB - User Manual L458MC04T1A01...
- Page 5 DEVICE POWER SUPPLY AND CONNECTION TO THE LED MODULE POWER SUPPLY CONNECTION DIAGRAM AND LED L458MC04T1A01 - FIGURE N. 1 The L458MC04T1A01 dimmer has to be powered according to the polarity showed in FIG. 1 through the DC IN (+ and -) terminals.
-
Page 6: Push Mode
User Manual L458MC04T1A01 PUSH MODE WIRING BUTTON L458MC04T1A01 - FIGURE N. 2 Connect between the P1 and P2 inputs, a signal in direct or alternating voltage (DC voltage range:10÷265V, AC 12÷265Vac 50÷65Hz) interrupted by a normally open button (N.O.). No polarization is needed for the input signal. - Page 7 THE BLUETOOTH LE CONNECTION DOES NOT REQUIRE PAIRING PROCEDURE Device L458MC04T1A01 requires a WIFI connection type B or G, configure your router / access point to support at least one the two connection type indicated. Example configuration: (Mode B / BG / BGN...
- Page 8 In order to install the app on your Apple or Android device you need to scan the desired QRCode to be automatically redirected to the product data sheet of the Omni application. As an alternative you can download the app by clicking on one of two links below: Apple: https://apps.apple.com/it/app/omni/id1499453223 Android: https://play.google.com/store/apps/details?id=com.newlablight.omni&hl=en NEWLAB - User Manual L458MC04T1A01...
-
Page 9: Factory Reset
FACTORY RESET In order to perform a factory reset, Press and hold the PUSH button for at least 20 sec (see wiring diagram), switch off the device and turn on it. Last Manual Update 04/03/2019 NEWLAB - User Manual L458MC04T1A01...
