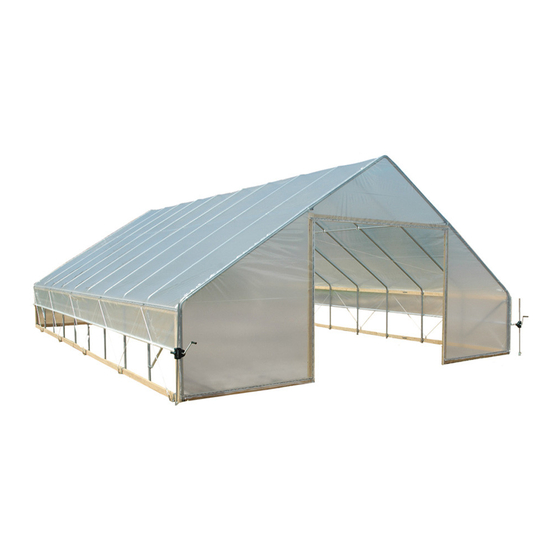

- Page 1 ® FieldPro Gable high tunnel 30' INSTALLATION INSTRUCTIONS P.O. Box 458 U.S. & Canada Toll Free 27725 Danville Avenue 800-852-3443 Castle Rock, MN 55010 (651) 463-7009 www.poly-tex.com fax (651) 463-2479 REV: AG-130603...
-
Page 2: Safety Guidelines
Poly-Tex suggests hiring a general contractor, carpenter, or similar licensed business familiar with construction, to assemble and erect the structure. Do not overload structure. Consult with a Poly-Tex representative prior to adding any amount of weight over the specified capacity of this structure. Basket purlins, shelving or any objects of significant weight shall not be hung, attached, or secured to roof or truss members in a manner that will overload the structure. - Page 3 Index PART IDENTIFICATION Pg 1 GROUND STAKE INSTALLATION CONCRETE PIER Pg 2 GROUND STAKE INSTALLATION Pg 3 FRAME ASSEMBLY Pg 4 OPTIONAL 30ft TRUSS ASSEMBLY Pg 5 FRAME INSTALLATION Pg 6 END FRAME & SIDE RAIL HARDWARE INSTALLATION Pg 7 OPTIONAL DOOR FRAME INSTALLATION Pg 8 END WALL POLY INSTALLATION...
- Page 4 PART IDENTIFICATION 30' GABLE HP3530 HT STRAIGHT SIDE (GABLE 30') FT2119 KH1000 FT2079 PURLIN PURLIN FASTENER 1.315 FT4040 LONG SPEED FASTENER CROSS CONNECTOR HOOK (2") HP3531 HT PEAK SECTION (GABLE 30') FT2570 FT2108 HP3000 - MID-SECTION 115" FT2057 FT2106 FT2000 STOP TAB 1 1/2"...
- Page 5 GROUND STAKE INSTALLATION * * * CONCRETE PIER OPTION * * * 1. LAY OUT THE FOUR SIDES OF THE BUILDING ACCORDING TO THE PLAN DIMENSIONS PROVIDED. DRIVE A TEMPORARY MEASURED LENGTHS STAKE FIRMLY IN EACH CORNER. FIGURE 1 SHOULD MATCH 2.
- Page 6 GROUND STAKE INSTALLATION ♦ DRIVEN STAKE OPTION ♦ 7. FOR GROUND STAND USE START WITH STEP 10. USE THE DRIVING TOOL TO DRIVE THE FOUR CORNER GROUND STAKES APROXIMATELY 24" INTO ♦ DRIVING GROUND ♦ THE GROUND UNTIL THE TOP ELEVATION MATCHES DESIRED BUILDING SLOPE, IF ANY.
-
Page 7: Frame Assembly
FRAME ASSEMBLY 1. ON THE MID-SECTION TUBE PLACE A MARK 44" FROM THE SWAGED END OF TUBE. THIS MARK IS FOR THE PURLIN AND PURLIN FASTENER LOCATION. 2. ASSEMBLE ENTIRE FRAME ON A FLAT SURFACE, OR BLOCK AS NECESSARY. 3. SECURE FRAME SECTIONS TOGETHER USING (2) 1/4"-14 X 1" SELF- DRILLING SCREWS INSTALLED AT EACH CONNECTION. - Page 8 OPTIONAL 30ft GABLE TRUSS ASSEMBLY C-BRACKET FT4054 3/8" x 1 1/4" CARRIAGE BOLT NB1837, 3/8" LOCK WASHER NB1864, & HEX NUT NB1874 13 3/8" BOTH ENDS 2" 1" 3/8" x 1 1/4" 29" 23 5/8" STRUT CARRIAGE BOLT NB1837, FIGURE 5 BOTH ENDS FIGURE 1 HT1028...
-
Page 9: Frame Installation
FRAME INSTALLATION IMPORTANT PURLIN CROSS STOP #12-14 x 1" SELF CONNECTOR DRILLING SCREW RECT BLK FT4042 1" FT2570 NB1804 PLUG FB2527 LOCK STRAP WASHER ALL COMPONENTS ATTACHED TO LONG SPEED HOOKS FIGURE 8 FT2117 NB1862 MUST BE MOUNTED ON THE OUTSIDE OF THE TABS. NUT NB1872 NEVER INSTALL COMPONENTS BETWEEN TABS. - Page 10 3. FOR CUSTOM DOOR OPENINGS, DETERMINE DOOR WIDTH FOR OPTIONAL STEEL DOOR FRAME.) FIGURE 3 AND HEIGHT. ATTACH AND PLUMB DOOR JAMBS USING FITTING AS SHOWN. FIGURE 3 FOR POLY-TEX ROLL-UP END SHOWN FROM INSIDE DOORS, FRAME OPENING TO 10'-0" x 8'-0" OF STRUCTURE 4.
- Page 11 DOOR JAMBS. FIGURE 2 FT1990 R.F. "L" BRACKET 3. OBTAIN WOOD END RAILS NOT SUPPLIED WITH FieldPro® AND DOOR JAMB PACKAGES. MEASURE HT1009 THE DISTANCE BETWEEN THE SIDE OF THE FRAME AND THE DOOR JAMBS TO CUT THE WOOD. TO END VERT/DR JAMB (30' GABLE) ATTACH THE WOOD END RAILS TO FRAME AND DOOR JAMBS, USE THE "L"...
- Page 12 END WALL POLY INSTALLATION NOTE: REFER TO PAGE 7 FOR OPTIONAL METAL JAMB. #12-14 x 1" SELF- 1. ATTACH WIGGLE WIRE BASE ON THE OUTSIDE FLUSH WITH THE TOP OF THE BASE DRILLING SCREW BOARD AND THE EDGES OF THE DOOR JAMB. FIGURE 1 NB1807 2.
- Page 13 ROLL-UP CURTAIN INSTALLATION PART IDENTIFICATION 1. INSTALL WIGGLE WIRE BASE, CORNER POLY PANEL, AND WIGGLE WIRE TO SECURE PANEL. 2. TO INSTALL ROLL UP CURTAIN POLY, EXTEND CURTAIN POLY ABOUT 2" BEYOND FRAME AND APPROXIMATELY 2" ABOVE UPPER RAIL. KEEP AS EVEN AS POSSIBLE. FIGURE 1 ATTACH POLY TO WIGGLE WIRE BASE WITH WIGGLE WIRE SIMILAR RC1311 RC1009 RC1010...
- Page 14 THE GREENHOUSE. PLACE ONE WORKER AT POINT A AND ONE AT POINT B . IT HELPS TO HAVE ANOTHER WORKER INSIDE THE FieldPro AT POINT C , ON A LADDER, TO HELP CARRY THE POLY OVER. ONCE THE POLY IS IN POSITION, BEGIN INSTALLING WIGGLE WIRE SECTIONS AT POINT 1 .
- Page 15 THE GREENHOUSE. PLACE ONE WORKER AT POINT A AND ONE AT POINT B . IT HELPS TO HAVE ANOTHER WORKER INSIDE THE FieldPro AT POINT C , ON A LADDER, TO HELP CARRY THE POLY OVER. ONCE THE POLY IS IN POSITION, BEGIN INSTALLING WIGGLE WIRE SECTIONS AT POINT 1 .
- Page 16 ROLL-UP CURTAIN RETAINER INSTALLATION 1. RAISE CURTAIN ABOUT HALFWAY UP BY TURNING THE HANDLE ON THE ROLL-UP UNIT. LOCATE AND INSTALL CRADLES 24" FROM END OF LOWER SIDE RAIL ON BOTH ENDS OF THE STRUCTURE AND AT 12' SPACING BETWEEN CRADLES.
- Page 17 1. INSTALL WIGGLE WIRE BASE TO VENT OPENING WHERE SHOWN. 6. CLIP ROLL-UP TUBE CLIP OVER ENDS OF POCKET ON HT1070 VENT ASSEMBLY OVER ROD. 2. ATTACH HT1070 VENT ASSEMBLY PANEL TO END OF FIELDPRO ABOVE DOOR OPENING. 7. ATTACH KNUCKLE RC1301 INTO ROD RC1319 AND TIGHTEN BOLTS.
-
Page 18: Door Installation
DOOR INSTALLATION OPTIONAL 1. LAY OUT CLEAR REINFORCED POLY DOOR ON A FLAT SURFACE. 2. ASSEMBLE THE ROLL-UP TUBE WITH SNAP & TUBE BOTTOM EXTENSION. FIGURE 1 INSERT ROLL-UP TUBE INTO ROLL-UP DOOR SLEEVE. 3. SECURE THE POLY DOOR TO THE DOOR TUBE USING ROLL-UP TUBE CLIPS APPROXIMATELY EVERY 36".
