vanEE VENMAR ADVANCED TOUCHSCREEN CONTROL Installation And User Manual page 2

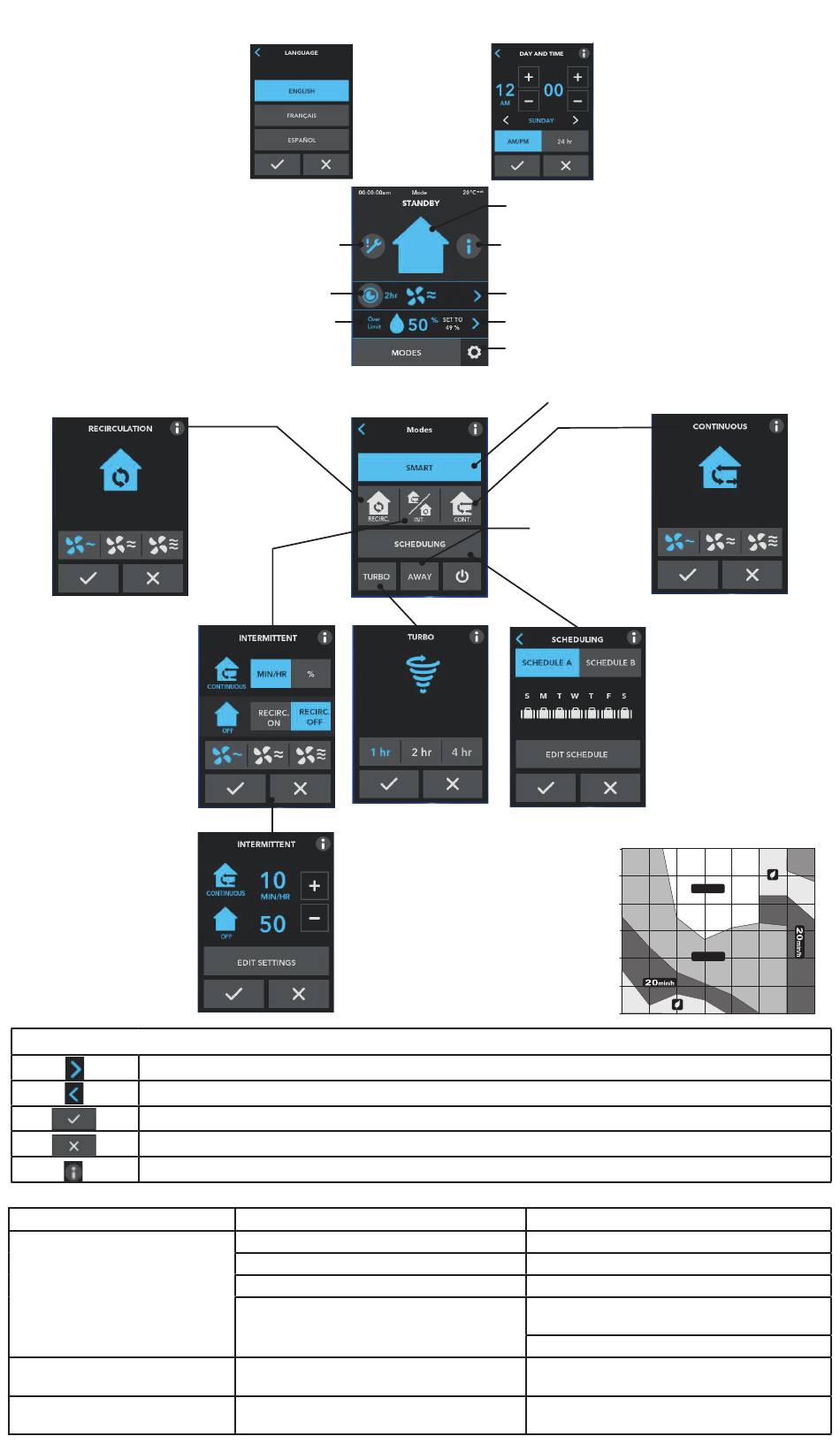

Set the Language and the Day and time
screens following your preferences.
Will appear if maintenance is required or if an error triggered
Countdown for temporary modes
Will appear when RH exceeds selected set point
VC0248A,F
NOTES: Some features
may not be available on
all units. The temperature
displayed on ADVANCED
TOUCHSCREEN wall
control may vary by
5ºC (9ºF) (more or less)
compared to the outside
temperature since the
temperature sensor is
located inside the unit
to ensure a reading that
optimizes Virtuo Air
TM
Technology algorithms.
NAVIGATION KEYS
To access next screen
To access previous screen
To confirm
To exit screen without saving
To get more information on the action(s) to perform on the corresponding screen
P
ROBLEM
The screen is not powered
The screen is powered but displays
error E50
The touch screen does not work for
all the keys
P
RELIMINARY SETTINGS
VC0245A
VC0247A
A
VC0249A
VC0253A
VC0252A
VC0251A
T
P ( )
OSSIBLE CAUSE S
The ventilation unit is not powered
Miswiring/Damaged wire/Contact between wires
The connector J15a is not connected properly Check J15a connector connection
The wall control is not operational or defective Check if it uses the same isolated power circuit
Miswiring/Broken wire
Defective control
VC0246A
Indicates the current mode
To access the Information screen
To select the blower speed
To enable/disable humidity function and adjust set point
To access the Settings screen
VAILABLE MODES
VC0254A
ROUBLESHOOTING
Select the Smart* mode
Select the Away
mode
VC0250A
* The SMART mode uses
indoor relative humidity level
and outdoor temperature to
manage the air exchange with
the outdoors, in order to enhance
comfort in the house. See graph
below.
From -35°C From -25°C From -15°C
to -25°C to -15°C to -5°C
80%
70%
60%
50%
40%
30%
20%
S ( )
OLUTION S
Plug the ventilation unit
Check wall control wiring
as the unit on the electronic board
Replace the electronic assembly
Check wall control wiring
Replace the electronic assembly
From -5°C From 5°C From 15°C
From 25°C
to 5°C to 15°C to 25°C to 35°C
*
TURBO
CONT
