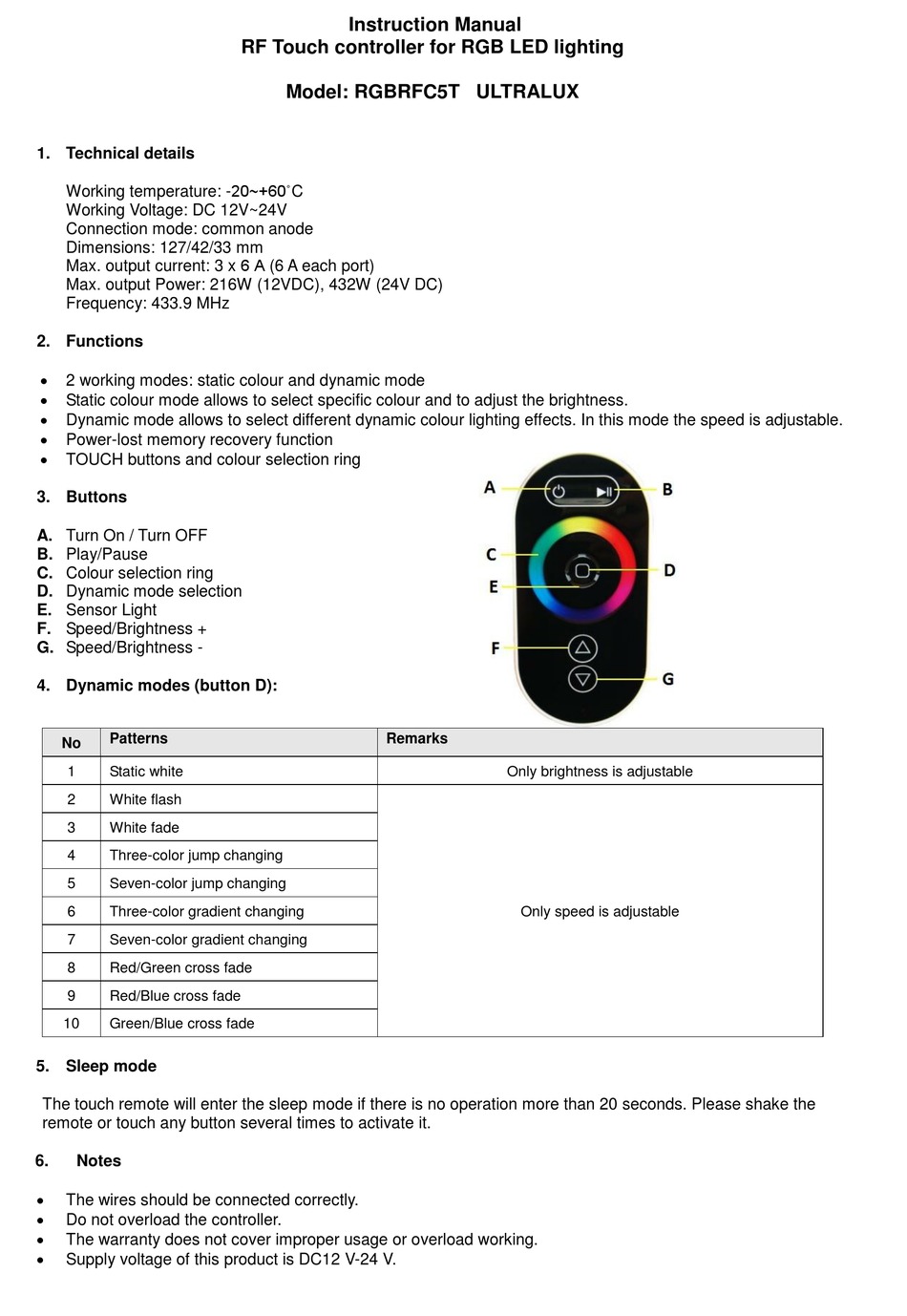

UltraLux RGBRFC5T Instruction Manual

1. Technical details

Working temperature: -20~+60˚C
Working Voltage: DC 12V~24V
Connection mode: common anode
Dimensions: 127/42/33 mm
Max. output current: 3 x 6 А (6 A each port)
Max. output Power: 216W (12VDC), 432W (24V DC)
Frequency: 433.9 MHz

2. Functions


2 working modes: static colour and dynamic mode

Static colour mode allows to select specific colour and to adjust the brightness.

Dynamic mode allows to select different dynamic colour lighting effects. In this mode the speed is adjustable.

Power-lost memory recovery function

TOUCH buttons and colour selection ring

3. Buttons

A. Turn On / Turn OFF
B. Play/Pause
C. Colour selection ring
D. Dynamic mode selection
E. Sensor Light
F. Speed/Brightness +
G. Speed/Brightness -
4. Dynamic modes (button D):
Patterns
No
1 Static white
2 White flash
3 White fade
4 Three-color jump changing
5 Seven-color jump changing
6 Three-color gradient changing
7 Seven-color gradient changing
8 Red/Green cross fade
9 Red/Blue cross fade
10 Green/Blue cross fade

5. Sleep mode

The touch remote will enter the sleep mode if there is no operation more than 20 seconds. Please shake the
remote or touch any button several times to activate it.
6.

Notes


The wires should be connected correctly.

Do not overload the controller.

The warranty does not cover improper usage or overload working.

Supply voltage of this product is DC12 V-24 V.
Instruction Manual
RF Touch controller for RGB LED lighting
Model: RGBRFC5T ULTRALUX
Remarks
Only brightness is adjustable
Only speed is adjustable
