UltraLux RGBRFC20 User Manual

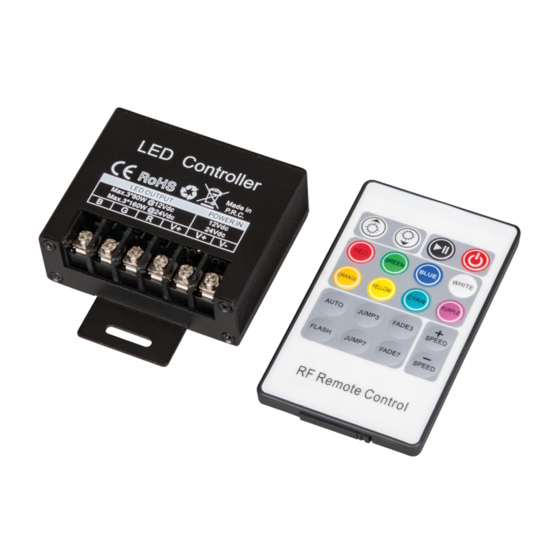

Ultralux RF Controller for RGB LED lights – RGBRFC20

Technical details:

•
Working temperature: -20 ÷ +60˚C
•
Working Voltage: DC 12V ÷ 24V
•
Connection mode: common anode
•
Dimensions: 80/64/24 mm
•
Output current: 3 x 6.6 А
•
Max. output power: 240W (12VDC), 480W (24V DC)
•
Frequency: 433.9 MHz
•
Remote distance: Up to 20 m
•
Static power consumption: <1W
•
Grayscale: 64 levels (RGB each)

Product Features:

Designed for RGB constant voltage LED lights, Max.output:3*6.6A.

 Power-lost memory recovery function
Working voltage DC12-24V, it can be universal in this range.

Adopts PWM digital technology, signal frequency: 107Hz.

RF 20-key wireless remote, RF frequency: 433.92MHz.

14 modes in total, including 8 static colors and 6 dynamic changes.


Direction for use

Connect the load wire and sync-signal cable at first, following by the power wire.

Ensure short circuit can not occur before you turn on the power.

Adopt RF wireless remote control, 20 keys in total, function of each button as below:


Button description

Brightness +
Static red
Static orange
Auto run
Flash
USER MANUAL
Brightness -
Static green
Static yellow
three base color jumpy Three colour gradually change
seven base color jumpy
pause
Static blue
Static cyan
Seven colour gradually
change
on/off
Static white
Static purple
speed +
speed-
