PCB Piezotronics IMI Sensors ICP TO-8 Installation And Operating Manual page 6

Model Number
66332APZ2
Performance
Sensitivity(± 20 %)
Measurement Range
Frequency Range(± 3 dB)
Resonant Frequency
Broadband Resolution
Non-Linearity
Transverse Sensitivity
Environmental
Overload Limit(Shock)
Temperature Range(Operating)
Temperature Response
Electrical
Settling Time(within 1% of bias)
Discharge Time Constant
Excitation Voltage
Constant Current Excitation
Output Impedance
Output Bias Voltage
Spectral Noise(10 Hz)
Spectral Noise(100 Hz)
Spectral Noise(1 kHz)
Physical
Size (Lip Diameter x Height)
Weight
Mounting
Sensing Element
Sensing Geometry
Housing Material
Sealing
Electrical Connector
Electrical Connection Position
Cable Termination
Electrical Connections(Red)
Electrical Connections(Black)
Cable Length
Cable Type
[7]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
®
ICP is a registered trademark of PCB Piezotronics, Inc.
ICP® TO-8 ACCELEROMETER
EN GLISH SI
1,000 mV/g 102 mV/(m/s²)
± 5 g ± 50 m/s²
0.25 to 5k Hz 0.25 to 5k Hz
> 16 kHz > 16 kHz
2
38 µg rms
373 µm/sec rms
≤ 1 % ≤ 1 %
≤ 7 % ≤ 7 %
5,000 g pk 49k m/s² pk
-65 to +185 °F -54 to +85 °C

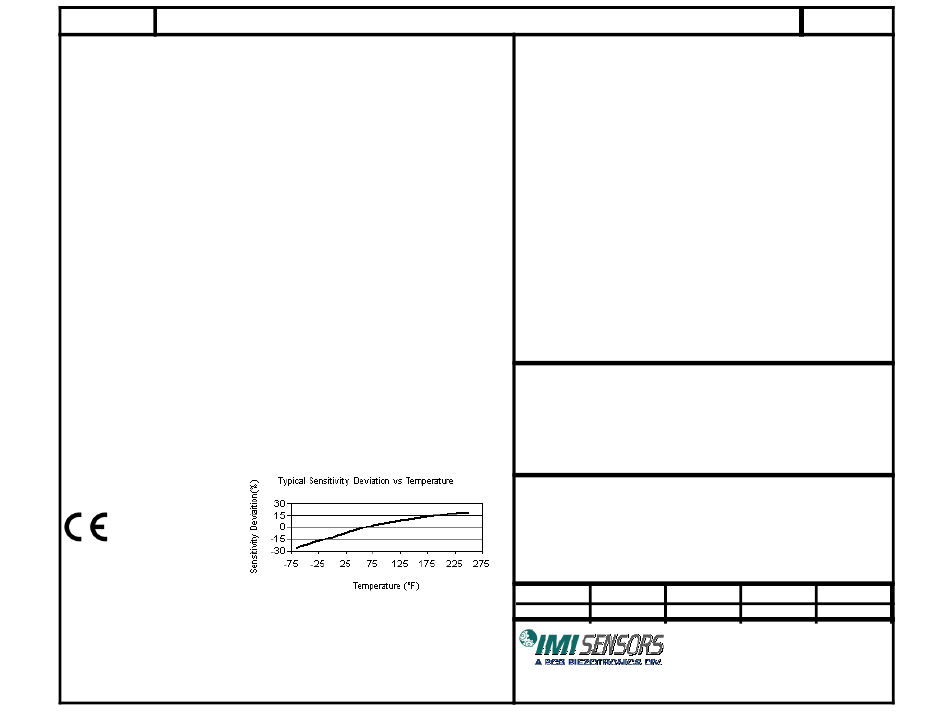

See Graph See Graph
≤ 30 sec ≤ 30 sec
≥ 0.65 sec ≥ 0.65 sec
18 to 28 VDC 18 to 28 VDC
2 to 20 mA 2 to 20 mA
< 550 Ohm < 550 Ohm
8 to 12 VDC 8 to 12 VDC
2
1.9 µg/√Hz
18.6 (µm/sec )/√Hz
2
0.6 µg/√Hz
5.9 (µm/sec )/√Hz
2
0.4 µg/√Hz
3.9 (µm/sec )/√Hz
0.64 in x 0.57 in 16.3 mm x 14.5 mm
0.88 oz 25 gm
Adhesive Adhesive
Ceramic Ceramic
Shear Shear
Stainless Steel Stainless Steel
Welded Hermetic Welded Hermetic
Integral Cable Integral Cable
Bottom Bottom
Blunt cut Blunt cut
Signal / Power Signal / Power
Neg (-) Ground Neg (-) Ground
1 ft 0.3 m
PVC PVC
Optional versions have identical specifications and accessories as listed for the standard model except
[1][2]
where noted below. More than one option may be used.
[3][4]
- High temperature, extends normal operation
HT
[4] temperatures
Temperature
[5]
Range(Operating)
Cable Type
[6]
Electrical Connections(Red)
Electrical Connections(White)
RH - RoHS Compliant
[5]
[5]
[5]
[5]
N OTES:
[1]Positive output along Z-axis (in upward direction when pin mounted).
[2]Conversion Factor 1g = 9.81 m/s².
[3]The high frequency tolerance is accurate within ±10% of the specified frequency.
[4]Performance depends on mounting
[5]Typical.
[6]Zero-based, least-squares, straight line method.
[7]See PCB Declaration of Conformance PS023 or PS060 for details.
SUPPLIED ACCESSORIES:
Model ICS-2 NIST-traceable single-point amplitude response calibration at 6000 cpm (100 Hz) for
each axis (1)
Entered: LK Engineer: NJF
Date: 07/07/2020 Date: 07/07/2020 Date: 07/07/2020 Date: 07/07/2020 47330
3425 Walden Avenue, Depew, NY 14043
Revision: C
ECN #: 50920
OPTION AL VERSION S
-65 to 250 °F -54 to 121 °C
031 PTFE 031 PTFE
Signal / Power Signal / Power
Neg (-) Ground Neg (-) Ground
Sales: MC Approved: NJF Spec Number:
Phone: 800-959-4464
Fax: 716-684-3823
E-Mail: imi@pcb.com
