Red Heating SELECTA 35Q S1 Installation Manual page 16

2-INSTALLATION

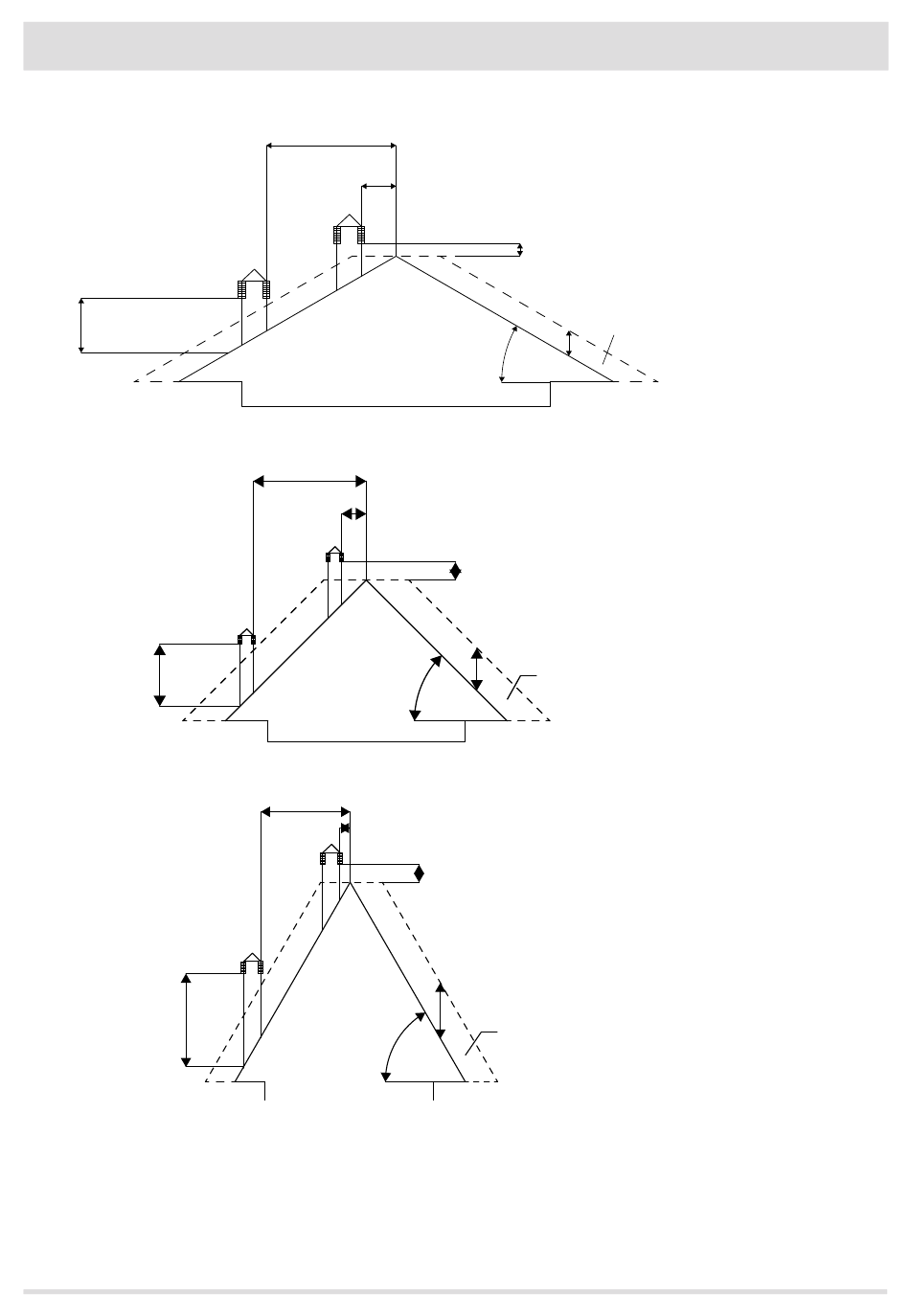

ROOF AT 30°
A
ROOF AT 60°
A
ROOF AT 45°
A
14 14
B
C
B
C
D
45°
B
C
D
E
60°
D
F
E
30°
F
E
F
A = MIN. 1.30 metres
B = DISTANCE > 1.50 metres
C = DISTANCE < 1.50 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 0.80 metres
F = REFLUX AREA
FIGURE 4
A = MIN. 2.00 metres
B = DISTANCE > 1.30 metres
C = DISTANCE < 1.30 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 1.50 metres
F = REFLUX AREA
FIGURE 5
A = MIN. 2.60 metres
B = DISTANCE > 1.20 metres
C = DISTANCE < 1.20 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 2.10 metres
F = REFLUX AREA
FIGURE 6
