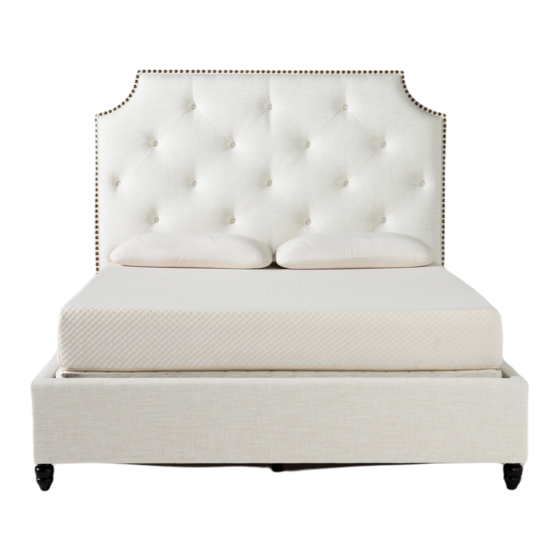

Sophia II E/C King Assembly Instructions
Bed feet are packed in headboard carton.
F
H=10CM
4PCS
1
Step#1
Retrieve bed feet from carton fastened behind the headboard.
Attach bed feet (F) to the headboard .
Attach bed feet (F) to the footboard .
Step#2
Attach side rails to headboard using Wrench (I), Bolt (B) and Washer (E)(factory installed).
Attach side rails to footboard using Wrench (I), Bolt (B) and Washer (E)(factory installed).
CONGRATULATIONS ON YOUR NEW BED PURCHASE
~Warning：do not move bed after final assembly as it may result in damages to floor and/or bed.~
*Bolt B and Washer E
2
are factory installed*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Living Spaces Sophia II E King
Summary of Contents for Living Spaces Sophia II E King
- Page 1 Sophia II E/C King Assembly Instructions Bed feet are packed in headboard carton. H=10CM 4PCS *Bolt B and Washer E are factory installed* Step#1 Retrieve bed feet from carton fastened behind the headboard. Attach bed feet (F) to the headboard . Attach bed feet (F) to the footboard .
- Page 2 Sophia II E/C King Assembly Instructions Hardware included in side rails carton to attach center support system. Φ6*15MM Φ6 MM Φ8 MM Metal Slats Center support legs Φ6*20MM H=16CM 8PCS 16PCS 4PCS 8PCS 8PCS Step#3 Attach steel center support legs (J) to the Metal slat (G) using Wrench (I), Bolt (T) and Washer (D).
