1. Module Features
-Bluetooth
V1.2 Compliant
®
-Transmit Power +20dBm(Class1)
-2.7V to 3.6V Operation
-Full Bluetooth data rate over UART
and USB
-Four low power modes : Park, Sniff,
Hold and Deep Sleep
-Support for up to seven slaves
-Enhanced Data Rate(EDR) compliant
with V0.9 of specification for both
2Mbps and 3Mbps modulation
modes

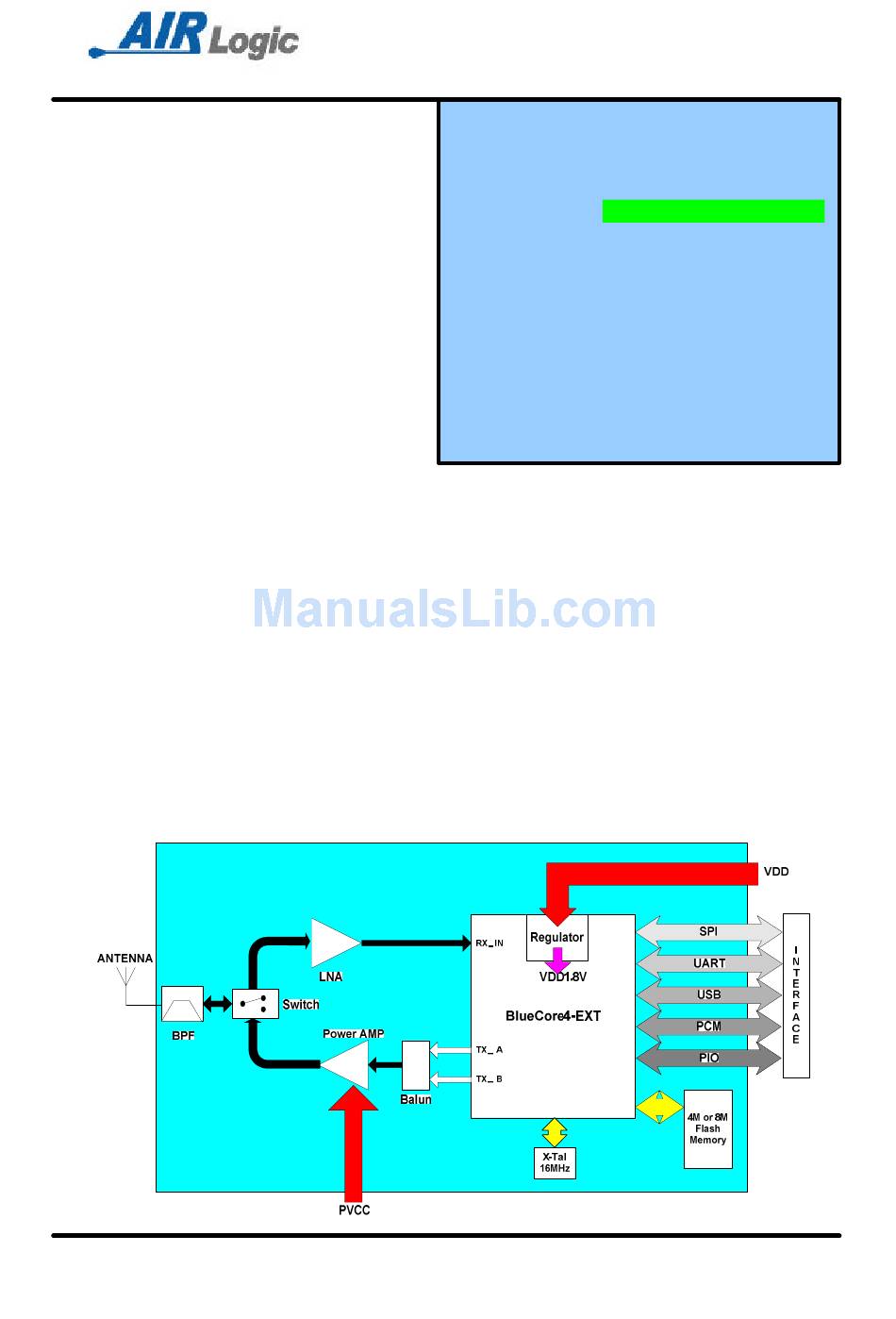

2. General Description
ABM-600-1xxxx is a Class1 surface
®
mountable Bluetooth
Notebook PC, Desktop PC, Access Point,
Serial Adapter applications.
It provides fully compliant Bluetooth system
for data and voice communications. Physical
interface to host (UART, USB) can support
full Bluetooth data rate 723.2k/57.6kbps.
A-Law, µ-Law,13bit or 16bit linear PCM,
8k sample/sec synchronous bidirectional
audio interface is also available.
3. Application
-
Laptop and Desktop PCs
-Access point
-Serial Adapter
-Personal Digital Assistants (PDAs)
-Domestic and Industrial Applications
All specification are preliminary and AirLogic reserves the right to change these without notice.
Bluetooth
Module for
Copyright © 2004 AirLogic Co., Ltd.
http://www.airlogic.co.kr
®
Module Application Note
Class1 Bluetooth Module
Production Information Data Sheet
ID : ABM-600-1XXXX
4. Features
-Size(28.2 X 15 X 2.8mm)
-Class1 Support(+20dBm)
-Surface Mountable
-Support PCM interface for SCO
5. Specification
-Operating Conditions
Supply Voltage... ... . VDD: 2.7V ~3.6V
Temperature Range... .... ..... -20~+70°C
-Radio Characteristics
Receiver Sensitivity ... -88dBm
Transmitter Power ... .. +16.0dBm(Typical)
ABM-600
AUG.2004
Rev 1.0
Advertisement
Table of Contents
Related Manuals for Airlogic ABM-600
Summary of Contents for Airlogic ABM-600
-
Page 1: General Description
Laptop and Desktop PCs -Access point -Serial Adapter -Personal Digital Assistants (PDAs) -Domestic and Industrial Applications All specification are preliminary and AirLogic reserves the right to change these without notice. ® Bluetooth Module Application Note Class1 Bluetooth Module Production Information Data Sheet 4. -
Page 2: Electrical Characteristics
≥3MHz (3rd Adjacent channel selectivity) 30MHz-2000MHz 2000MHz-2400MHz Blocking performance 2500MHz-3000MHz 3000MHz-12.75MHz Intermodulation Performance Maximun Input Level All specification are preliminary and AirLogic reserves the right to change these without notice. ® Bluetooth Module Application Note -0.4 +0.4 Condition Normal/extreme test Normal/extreme test... -
Page 3: Pin Description
PIO(10) Programmable I/O terminal RF-IN_OUT Connect to Antenna Common ground Copyright © 2004 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. ® Bluetooth Module Application Note Description data input data output... -
Page 4: Uart Interface
<UART connected to Host PC> <UART connected to MCU> * When BCSP protocol is selected for Host Interface, CTS/RTS signal can be omitted Copyright © 2004 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. http://www.airlogic.co.kr... -
Page 5: Usb Interface
1xxxx only supports USB slave operation. ABM-600-1xxxx features an internal USB pull-up resistor. This pulls the USB+ pin weakly high when ABM-600-1xxxx is ready to enumerate. It signal to the PC that it is a full speed(12Mbit/s) USB device. <USB BUS powered Mode connected to Host PC>... - Page 6 1xxxx offers a bi-directional digital audio interface that routes directly into the baseband layer of the Module firmware. It does not pass through the HCI protocol layer. Hardware on ABM-600-1xxxx allows the data to be sent to the received from a SCO connection.
- Page 7 Module Application Note 12. RESET ABM-600-1xxxx may be reset from several source : RESET_IN pin, power on reset, a UART break character or via a software configured watchdog timer. The RESET_IN pin is an active low reset and is internally filtered using the internal low frequency clock oscillator.
-
Page 8: 13. Ordering Information
® Bluetooth Module Application Note 13. Ordering information 14. Dimension unit : mm Copyright © 2004 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. http://www.airlogic.co.kr... -
Page 9: Record Of Changes
Revision Reason of Change Aug. 2004 -First Issue AirLogic Bluetooth Module Product Data Book ABM-600-1xxxx Aug 2004 Rev 1.0 Copyright © 2004 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. http://www.airlogic.co.kr...
