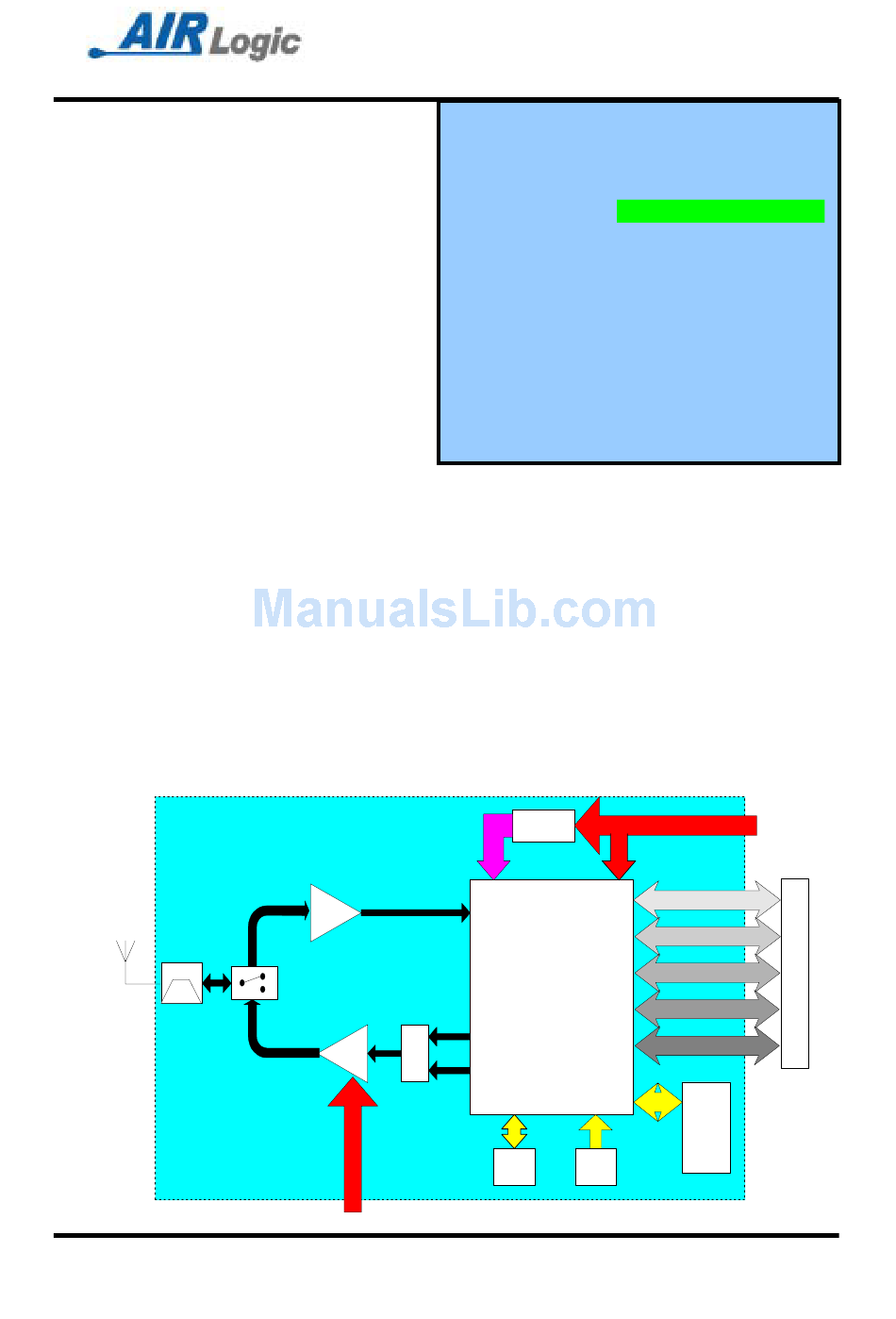

1. Module Features

-Bluetooth™ V1.1 Compliant
-Transmit Power +20dBm(Class1)
-2.7V to 3.6V Operation
-Full Bluetooth data rate over UART
and USB
-Four low power modes : Park, Sniff,
Hold and Deep Sleep
-Support for up to seven slaves

2. General Description

ABM-200-1XXX is a Class1 surface
mountable Bluetooth™ Module for
Notebook PC, Desktop PC, Access Point,
Serial Adapter applications.
It provides fully compliant Bluetooth system
for data and voice communications. Physical
interface to host (UART, USB) can support
full Bluetooth data rate 723.2k/57.6kbps.
A-Law, u-Law,13bit or 16bit linear PCM,
8k sample/sec synchronous bidirectional
audio interface is also available.

3. Application

-
Laptop and Desktop PCs
-Access point
-Serial Adapter
-Personal Digital Assistants (PDAs)
-Domestic and Industrial Applications
ANTENNA
BPF
All specification are preliminary and AirLogic reserves the right to change these without notice.
Bluetooth™ Module Application Note

4. Features

-Size(28.2 X 15 X 2.8mm)
-Class1 Support(+20dBm)
-Surface Mountable
-Dual Power Supply
-Support PCM interface for SCO

5. Specification

-Operating Conditions
-Radio Characteristics
LNA
Switch
Power AMP
Balun
PVCC
Copyright © 2004 AirLogic Co., Ltd.
http://www.airlogic.co.kr
Class1 Bluetooth Module
Production Information Data Sheet
ID : ABM-200-1XXX
Supply Voltage....... VDD: 2.7V ~3.6V
Temperature Range............ -20~+70°C
Receiver Sensitivity ... -88dBm
Transmitter Power ..... +16.0dBm(Typical)
VDD1.8V
Regulator
RX _ IN
BlueCore2-EXT
TX _ A
TX _ B
X-Tal
Loop
16MHz
Filter
ABM-200
May.2004
Rev 2.0
VDD
SPI
I
N
UART
T
E
USB
R
F
A
PCM
C
E
PIO
4M or 8M
Flash
Memory
