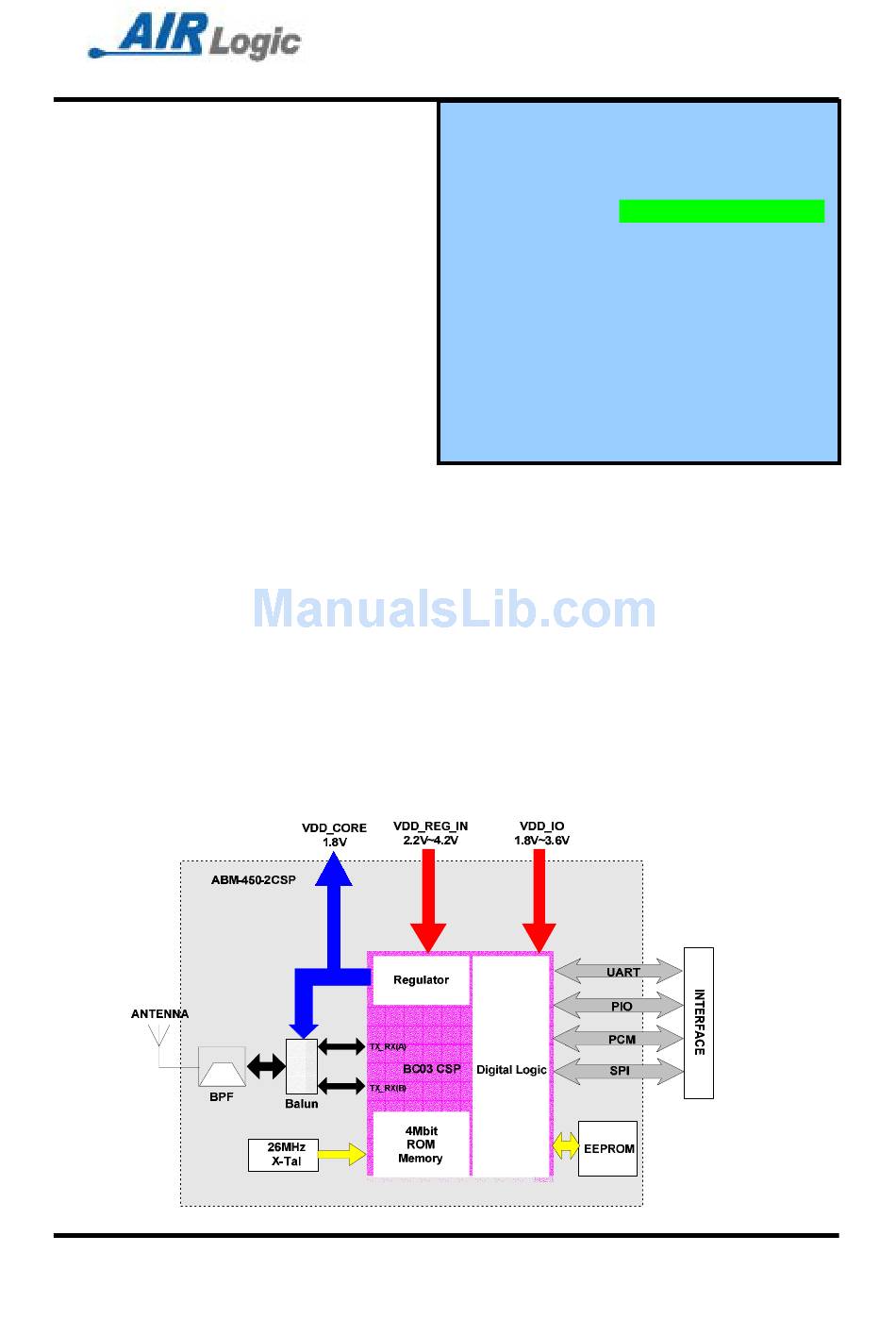

Airlogic ABM-450 Application Note

1. Module Features
-Bluetooth™ V1.1 or 1.2Compliant
-Transmit Power +4dBm(Class2)
-1.8V to 3.6V I/O Operation
-Full Bluetooth data rate over UART
-Dual UART Port Support
-Ultra low power consumption

2. General Description

ABM-450-2CSP is a Class2 surface
mountable Bluetooth™ Module for
Mobile Phone applications.
It provides fully compliant Bluetooth system
for data and voice communications. Physical
interface to host UART can support
full Bluetooth data rate 723.2k/57.6kbps.
A-Law, µ-Law,13bit or 16bit linear PCM,
8k sample/sec synchronous bidirectional
audio interface is available.
3. Application
-Personal Digital Assistants (PDAs)
-Mobile Phone(CDMA, W-CDMA, GSM,
GPRS)
All specification are preliminary and AirLogic reserves the right to change these without notice.
Bluetooth™ Module Application Note
Production Information Data Sheet
4. Features
-Size(8 X 8 X 1.7mm)
-Class2 Support(+4dBm)
-Surface Mountable
-Support PCM interface for SCO
5. Specification
-Operating Conditions
Supply Voltage....... VDD: 1.8V ~3.6V
Temperature Range............ -20~+70°C
-Radio Characteristics
Receiver Sensitivity ... -80dBm
Transmitter Power ..... +2dBm(Typical)
Copyright © 2004 AirLogic Co., Ltd.
http://www.airlogic.co.kr
ABM-450
Class2 Bluetooth Module
ID : ABM-450-2CSP
Dec.2004
Rev 1.1
