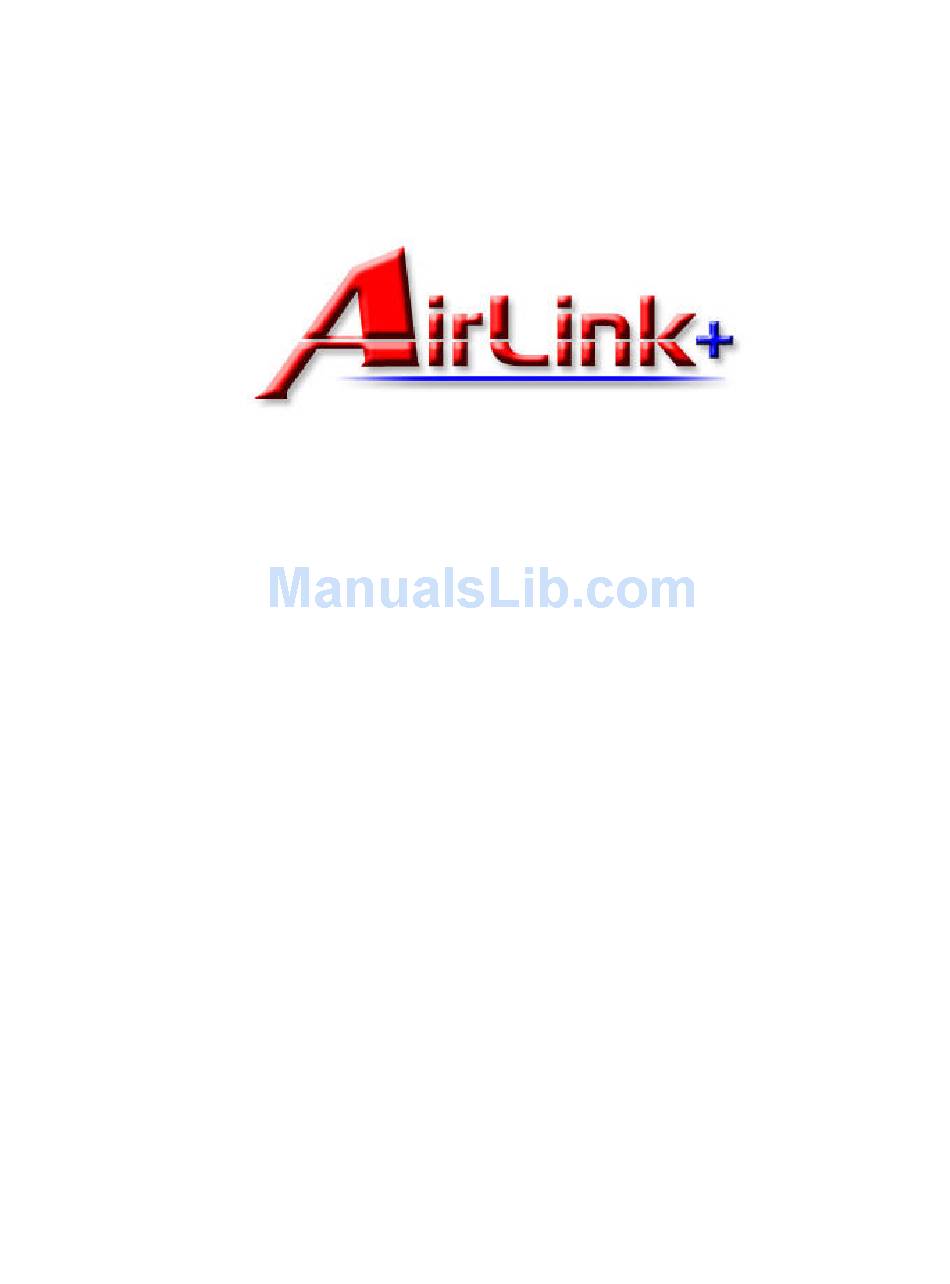

- Page 1 Model # ATVUSB01 Quick Installation Guide...
-
Page 2: Getting Started
Section 1 Please review the following package contents and minimum system requirements before proceeding to install the Vision+ video capture adapter. If your computer does not meet the minimum system requirements, the video capture adapter may not work properly. 1.1 Package Contents Unpack your Vision+ video capture adapter and make sure that all the items are intact. -
Page 3: Upgrading Usb 2.0 Host Controller Driver
Section 2 Upgrading USB 2.0 Host Controller Driver Before you plug the Vision+ video capture adapter into your computer’s USB 2.0 port, please check your USB 2.0 device driver first. If your USB 2.0 host controller driver is not the latest version or provided by Microsoft, we strongly recommend you use our USB 2.0 update utility. - Page 4 Step 3 Select Yes, I want to reboot my computer now and click OK. Step 4 After the computer reboots, the Found New Hardware Wizard will guide you to install the updated USB driver. Click Next to continue. Step 5 Select Search for a suitable driver for my device and click Next.
- Page 5 Step 6 Uncheck all the boxes under Optional search locations and click Next. Step 7 Windows will find the driver file automatically. Click Next. Step 8 Click Finish to complete the driver installation. Step 9 Leave your computer powered on and proceed to Section 3 Installing Hardware.
-
Page 6: Installing Hardware
Section 3 After you have updated the USB 2.0 host controller driver to the latest version, you can install the Vision+ video capture adapter. Please refer to the diagram below as you follow the installation procedures. Note: Be sure to follow the steps carefully and plug in the USB 2.0 connector last. Step 1 Connect the Composite In (or S-Video In) and Audio In connectors to the output cables of your video/audio source. -
Page 7: Installing Video Capture Adapter Driver
Section 4 Installing Video Capture Adapter Driver Before installing the driver, it is highly recommended that all background applications such as antivirus software and system monitoring programs be disabled first. Step 1 When you plug in the video capture adapter’s USB 2.0 connector to the USB 2.0 port of your computer, the Found New Hardware Wizard will appear. - Page 8 Step 3 Select Specify a location, deselect every other option, and click Next. Step 4 Click Browse and browse to the Driver folder in your CD-ROM drive. Example: D:\Driver (where D is the letter of your CD-ROM drive). Step 5 Click Next to install the driver.
- Page 9 Section 5 PVR-PLUS is a set of utilities that allow you to record videos, edit video clips, burn DVDs, and more. Before installation, it is highly recommended that all background applications such as antivirus software and system monitoring programs be disabled first.
- Page 10 Step 4 Click Next to accept the default Destination Location or click Browse to choose a new location. Step 5 Click Next to accept the default Program Folder. Step 6 Click Finish to complete the installation.
-
Page 11: Using Pvr-Plus
Section 6 Double-click the PVR Plus icon on your desktop to run PVR-PLUS. After you started PVR-PLUS, you can select the application you want to use. Click on each icon to start the application. Using PVR-PLUS TVR: full-featured video recorder. MPEG converts DV/AVI files into MPEG/ DVD format. -
Page 12: Using Tvr
Section 7 TVR allows you to watch and record videos on your computer as well as to playback the recordings. Click the TVR icon on the PVR-PLUS console to start TVR. Step 1 Select your video source (Composite or S-Video) by clicking on the Input Source Switch. - Page 13 Section 8 Technical Support E-mail: support@airlinkplus.com Toll Free: 1-888-746-3238 Web Site: www.airlinkplus.com...
