1. Introduction

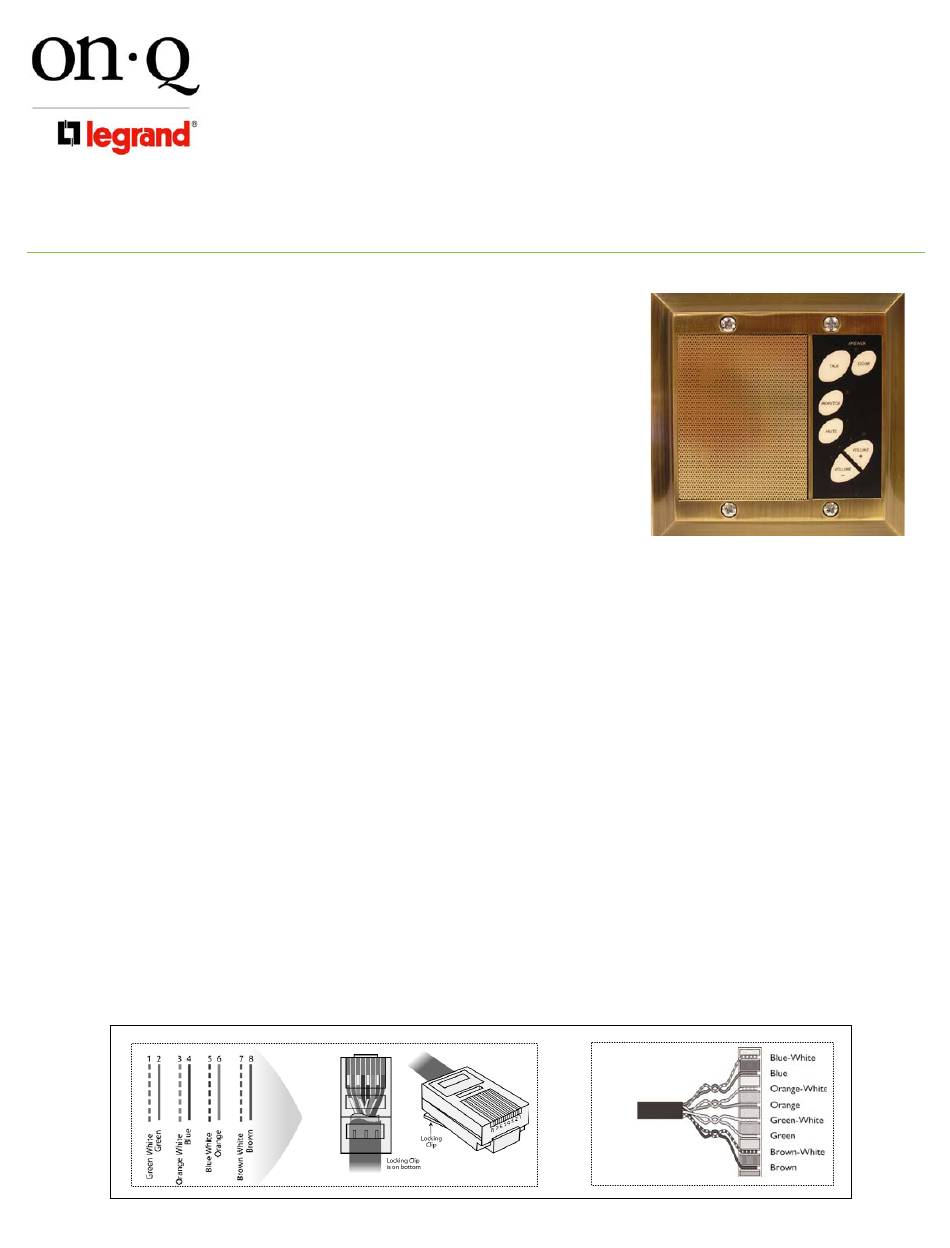

The On-Q /Legrand inQuire™ 1000 Intercom Patio Unit, PN F7641-XX
(see Figure 1), is a weather resistant version of the inQuire™ 1000
Room Unit with all of the same features except that it doesn't support the
front door release. It is available in white (-WH), shiny brass (-SB),
antique brass (-AB), brushed stainless (-BS), or oil-rubbed bronze (-OB).
2. Description
The Patio Unit is weather-resistant and offers local control of the mute
and monitor functions, the ability to talk to a Door Unit, a 20 step volume
control, and a separate microphone and speaker. The high quality
speaker and microphone provide superior sound quality. The Patio Unit
is installed in a 2-gang outdoor weatherproof box typically at electrical
switch box height.
3. Installation
Installation of the Patio Unit is best accomplished at multiple times during new construction, at "Rough-in"
before the drywall is installed, and at "Trim-out" after the drywall is installed and painted.
A. "Rough-in" steps:
1. Run a Cat 5 cable from the Enclosure where the Intercom Module will be installed to the 2 gang box at
the Patio Unit location.
NOTE: It is important to keep all Category 5e cable runs, regardless of use, at least 12 inches away
from AC electrical cables. If it proves necessary to cross an existing AC cable, do so only at a 90
degree angle.
B. "Trim-out" steps:
NOTE: All terminations can be correctly completed by following the T568A pin assignments. It is
important that you accurately terminate using T568A at all locations. There are two different types of
terminations you will encounter when installing the inQuire™ 1000 Intercom System: RJ45 plugs on the
Modules, the Main Console and the Room Unit and 110 punchdown blocks on Door and Patio Units. Refer
to Figure 2 for correct T568A termination for both RJ45 plugs and 110 punchdown blocks.
