1. Introduction

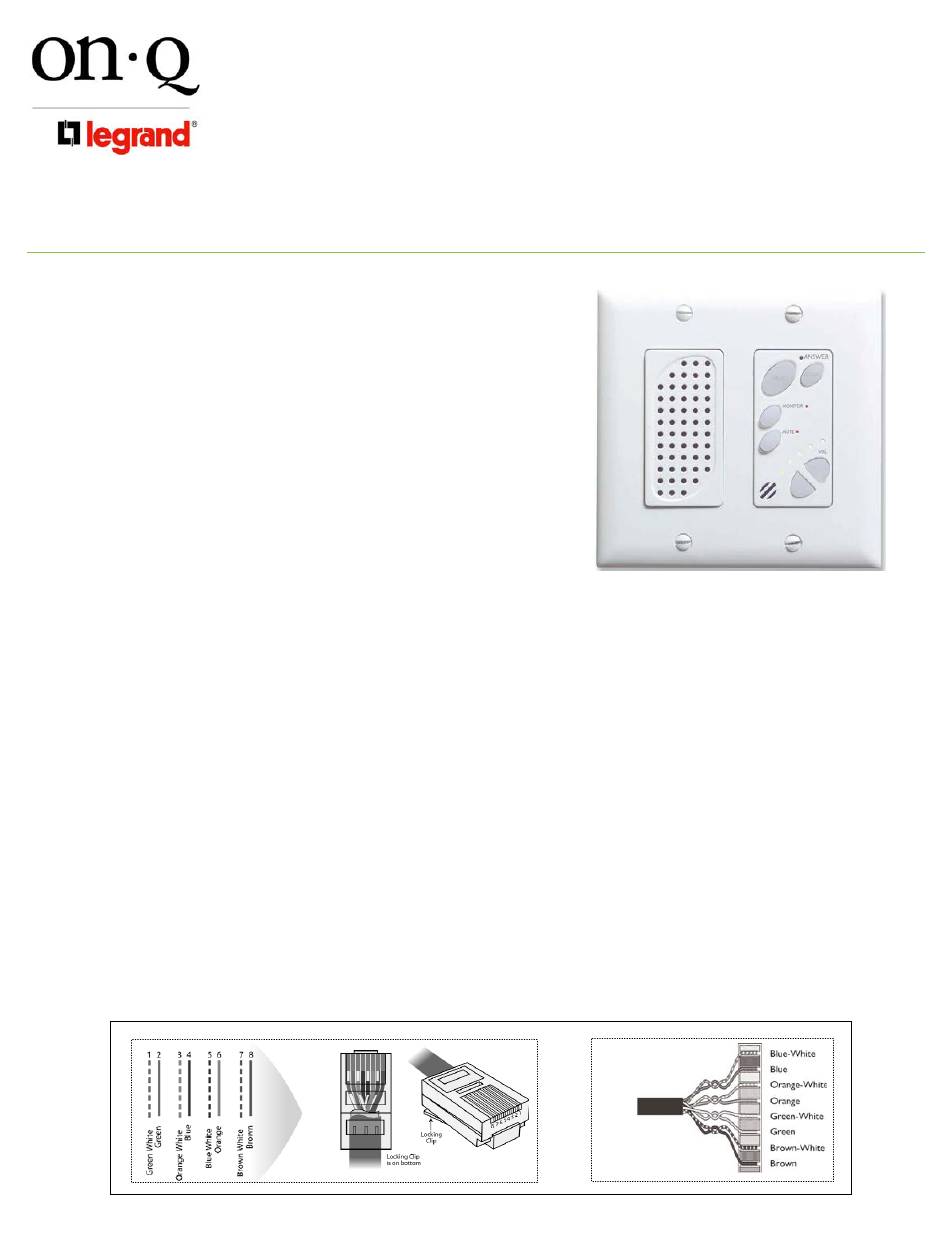

The On-Q/Legrand inQuire™ 1000 Intercom Room Unit, PN
IC1004-XX (see Figure 1), provides basic intercom
communications functions such as talk, talk to door, monitor
and mute. Up to 12 Room Units can be installed per each
inQuire™ 1000 intercom system. The Room Unit is available in
white (-WH), ivory (-IV), or light almond (-LA).
2. Description
The inQuire™ 1000 Room Unit provides broadcast intercom
functionally in any interior room of the house. It is connected to
the inQuire™ 1000 Intercom Module in the enclosure via a single
Cat 5e cable.
3. Installation
Installation of the Room Unit is best accomplished at multiple times during new construction, at "Rough-in"
before the drywall is installed, and at "Trim-out" after the drywall is installed and painted.
A. "Rough-in" steps:
1. Run a Cat 5 cable from the Enclosure where the Intercom Module will be installed to the 2 gang box
at the Room Unit location.
NOTE: It is important to keep all Category 5e cable runs, regardless of use, at least 12 inches
away from AC electrical cables. If it proves necessary to cross an existing AC cable, do so only at
a 90 degree angle.
B. "Trim-out" steps:
NOTE: All terminations can be correctly completed by following the T568A pin assignments. It is
important that you accurately terminate using T568A at all locations. There are two different types of
terminations you will encounter when installing the inQuire™ 1000 Intercom System: RJ45 plugs on the
Modules, the Main Console and the Room Unit and 110 punchdown blocks on Door and Patio Units. Refer
to Figure 2 for correct T568A termination for both RJ45 plugs and 110 punchdown blocks.
