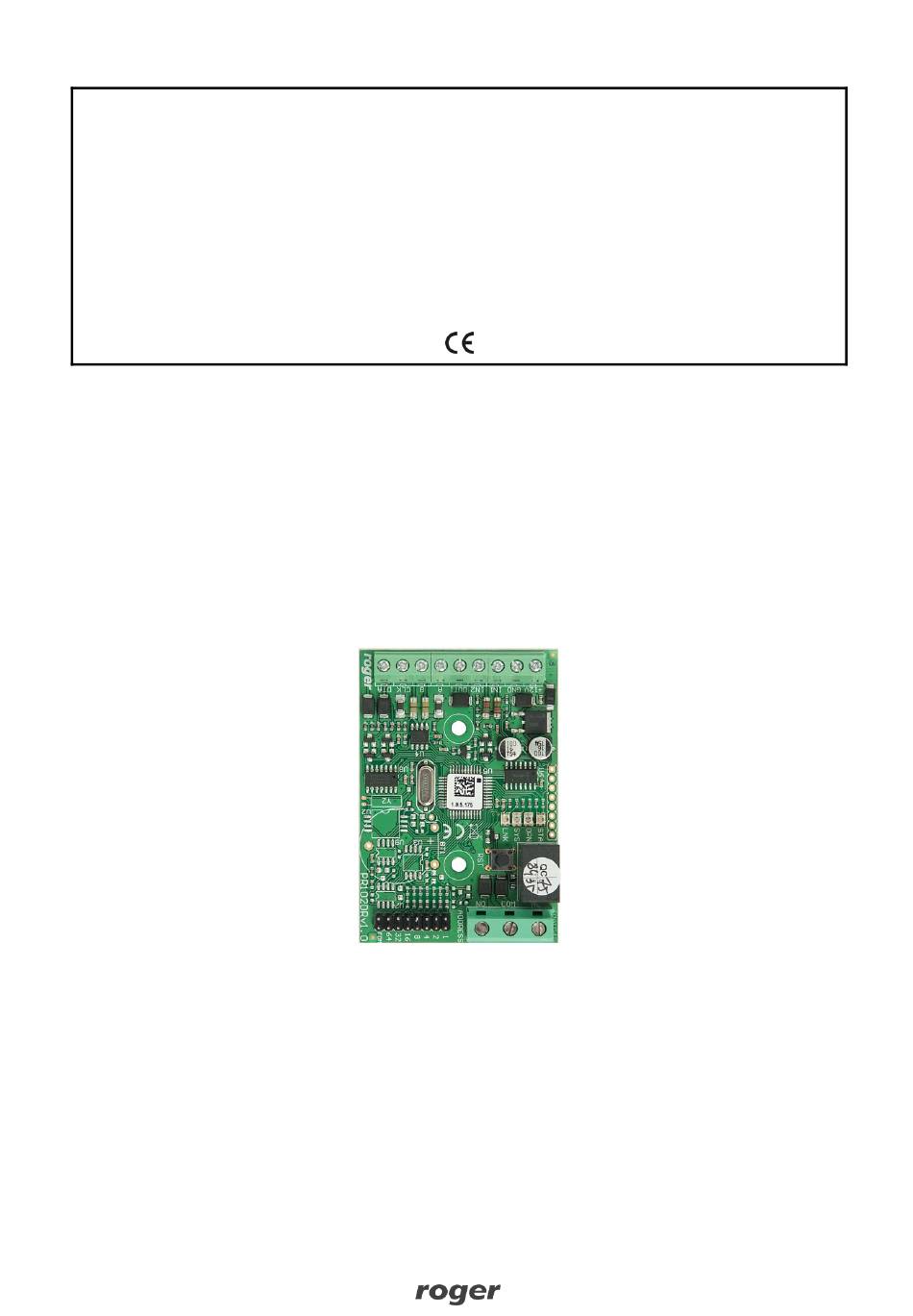

- Page 1 Roger Access Control System MCX102-BRD Operating Manual Product version: 1.0 Firmware version: 1.0.4 or newer Document version: Rev. A...
-
Page 2: Design And Application
1. D ESIGN AND APPLICATION MCX102-BRD is I/O expander dedicated to the RACS 5 system. The expander operates with two PRT series terminals or single terminal with Wiegand interface. After connection to MC16 controller the device enables to control single door. -
Page 3: Installation
ME type enclosures equipped with such rail. Alternatively, expanders can also be mounted using screws and holes on expander board. It is recommended to install the expander in the same enclosure as PSU. Fig. 1 MCX102-BRD expander Table 2. Screw terminals... - Page 4 3. O PERATION SCENARIOS In typical scenario of operation, MCX102-BRD expander is used to control single door by MC16 controller. The expander is mainly dedicated to operation with PRT series readers. In case of Wiegand interface reader, only single such terminal can be connected to the expander in order to control read-in door.
- Page 5 MCX102-BRD Operating Manual 04.12.2020 Fig. 3 Scenario of operation with MCX102-BRD expanders Note: The enclosure ME-2-D offers enough space and PSU to install up to three MCX102-BRD expanders in order to control up to 3 doors. 5/12...
- Page 6 MCX102-BRD Operating Manual 04.12.2020 Fig. 4 Typical door control with PRT series readers 6/12...
- Page 7 MCX102-BRD Operating Manual 04.12.2020 Fig. 5 Typical door control with Wiegand interface reader 4. C ONFIGURATION Low level configuration (RogerVDM) The purpose of low level configuration is to prepare device for operation in RACS 5 system. Programming procedure with RogerVDM software: 1.
- Page 8 MCX102-BRD Operating Manual 04.12.2020 Fig. 6 Connection to RUD-1 interface Table 3. List of low level parameters Communication settings RS485 address Parameter defines device address on RS485 bus. Range: 100-115. Default value: 100. RS485 communication timeout [s] Parameter defines delay after which device will signal lost communication with controller.
- Page 9 MCX102-BRD Operating Manual 04.12.2020 IN1, IN2 Parameter defines any text or comment which corresponds to the object. It is later displayed in VISO program. Output polarity REL1, IO1 Parameter defines polarity of output. Normal polarity means that the output by default is switched off while Reversed polarity means that the output by default is switched on.
- Page 10 The purpose of high level configuration is to define logical functioning of the expander which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note which is available at www.roger.pl. 5. F...
-
Page 11: Specification
Table 5. Ordering information MCX102-BRD Door expander; 2 inputs; 1 transistor output; 1 relay output; can operate with 2 PRTxx (Roger CLK/DTA ) or Wiegand 24..66 bit ME-2-D Metal enclosure; three DIN rails; 3.5A/13.8VDC monitored buffer power supply; power distribution module; space for optional 12V/17Ah battery; tamper;... - Page 12 Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
