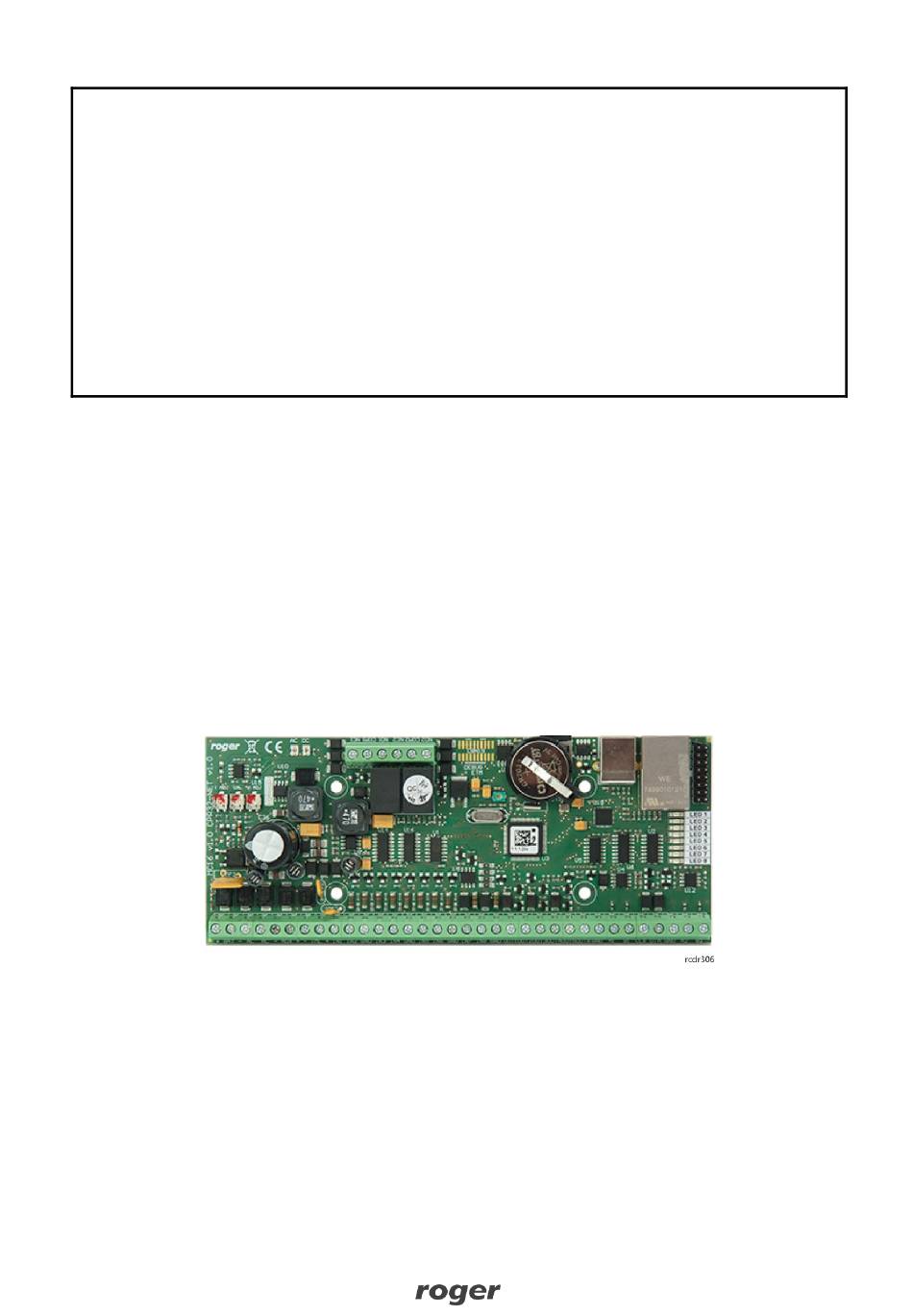

- Page 1 Roger Access Control System MCX16-AP I/O expander with APERIO interface Operating manual Product version: 1.1 Firmware version: 1.0.2.x Document version: Rev. A...
-
Page 2: Design And Application
RACS 5 system. MCX16-AP operates as hardware interface for communication of APERIO locks with MC16 access controller. The expander communicates with the MC16 controller using RS485 bus and with APERIO system using Ethernet (LAN). MCX16-AP offers its input and output lines for use in RACS 5 system. -
Page 3: Power Supply And Backup Battery
MCX16-AP Operating manual.doc 2018-11-29 necessary to activate it by re-initializing the MC16 controller with connected expander (Run device discovery command in VISO software). Note: Any modification of license file will corrupt the file. The expander cannot operate without valid license. -
Page 4: Rel1 And Rel2 Outputs
1200 meters as well as high resistance to interferences. It is recommended to supply the MCX16-AP from own transformer and equip it with backup battery (fig.4). Alternatively the expander can be supplied from AUX output of MCX2D/MCX4D expander within MC16- PAC-2/3/4/-KIT (fig. - Page 5 MCX16-AP Operating manual.doc 2018-11-29 Fig. 5 Connection diagram for expander supplied from controller’s kit Fig. 6 Connection diagram for expander supplied from controller 5/12...
-
Page 6: Typical Connection Diagram
The MC16 controller via MC16-AP expander(s) can control up to 16 locks (doors) depending on its license. MC16 controller, MCX16-AP expander and AH-40 hubs can be operated in the same LAN but the communication between the controller and expander is provided only by RS485 bus. -
Page 7: Configuration Of Expander
VISO management software. Configuration parameters In the table below the configuration parameters of MCX16-AP expander are presented. All settings are programmed with RogerVDM software within low level configuration of the expander. Table 1. MCX16-AP configuration parameters... -
Page 8: Firmware Update
MCX16-AP Operating manual.doc 2018-11-29 Application. Aperio locks (1-16) Lock enabled Parameter specifies if particular lock is enabled. Range: [0]:No, [1]: Yes. Default value: [0]: No. Lock ID Parameter specifies 6-digit lock ID which is detected in Aperio Programming Application and must be entered here. Range: 0- FFFFFF. -
Page 9: Installation
Start RogerVDM program and make low level configuration. Installation Enclosure with DIN rail is recommended for installation of MCX16-AP expander. All electric connections must be done without voltage on wires/terminals and with power supply disconnected. Optionally DIN rail mounting clips can be removed and the expander can be installed on flat surface. Prior to expander connection to the controller make low level configuration with RogerVDM software. -
Page 10: Specification
MCX16-AP Operating manual.doc 2018-11-29 REL2 relay output (NC) IN7 input COM2 REL2 relay common terminal IN8 input REL2 relay output (NO) Ground BAT+ Battery positive pole OUT1 OUT1 output BAT- Battery negative pole OUT2 OUT2 output Power supply input OUT3... -
Page 11: Ordering Information
MCX16-AP Operating manual.doc 2018-11-29 Backup battery 13.8V/7Ah, charging current app. 300mA Average current consumption 100 mA (excluding load points connected to AUX and/or TML outputs) Eight (IN1-IN8) NO/NC inputs, electrically biased to +12V via 5.6kΩ Inputs resistor, triggering level app. 3.5V Relay outputs Two (REL1,REL2) relay outputs with single NO/NC contact, 30V/1.5A rated... - Page 12 Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
