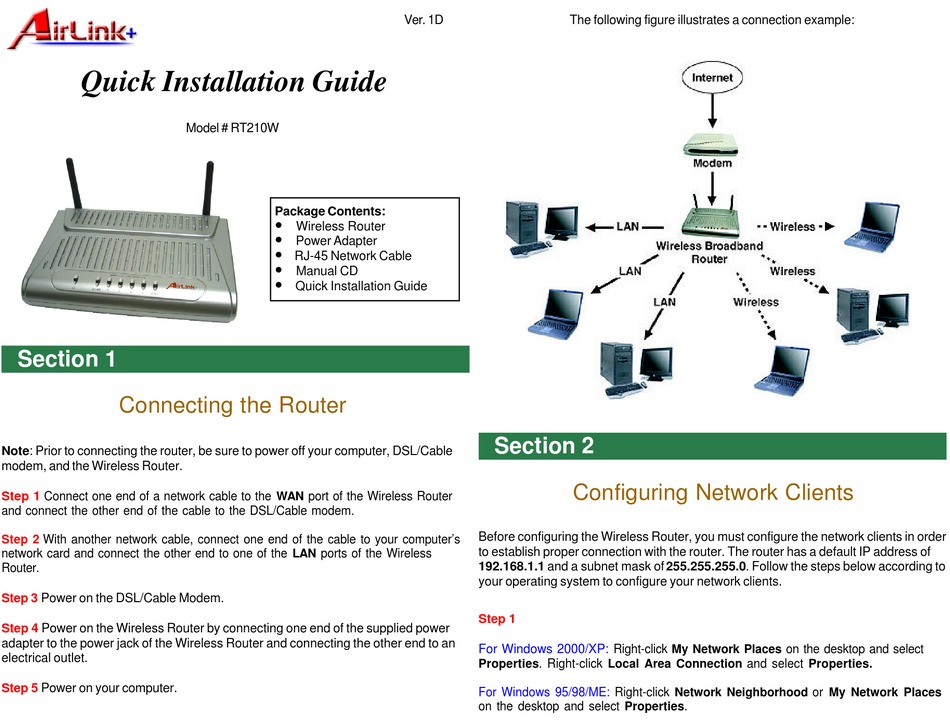

Airlinkplus RT210W Quick Installation Manual

Quick Installation Guide

Section 1

Connecting the Router

Note: Prior to connecting the router, be sure to power off your computer, DSL/Cable
modem, and the Wireless Router.
Step 1 Connect one end of a network cable to the WAN port of the Wireless Router
and connect the other end of the cable to the DSL/Cable modem.
Step 2 With another network cable, connect one end of the cable to your computer's
network card and connect the other end to one of the LAN ports of the Wireless
Router.
Step 3 Power on the DSL/Cable Modem.
Step 4 Power on the Wireless Router by connecting one end of the supplied power
adapter to the power jack of the Wireless Router and connecting the other end to an
electrical outlet.
Step 5 Power on your computer.
Model # RT210W
Package Contents:
—
Wireless Router
—
Power Adapter
—
RJ-45 Network Cable
—
Manual CD
—
Quick Installation Guide
Ver. 1D The following figure illustrates a connection example:
Section 2
Configuring Network Clients
Before configuring the Wireless Router, you must configure the network clients in order
to establish proper connection with the router. The router has a default IP address of
192.168.1.1 and a subnet mask of 255.255.255.0. Follow the steps below according to
your operating system to configure your network clients.
Step 1
For Windows 2000/XP:
Properties. Right-click Local Area Connection and select Properties.
For Windows 95/98/ME:
on the desktop and select Properties.
Right-click My Network Places on the desktop and select
Right-click Network Neighborhood or My Network Places
