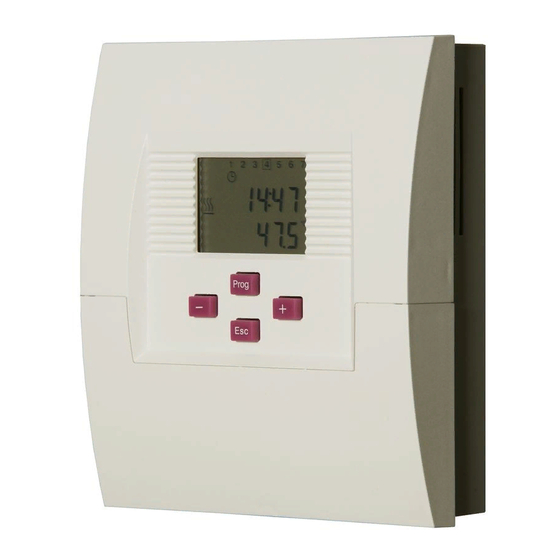

EbV elektronik CETA 101 Operating Manual

Double differential temperature control
Hide thumbs
Table of Contents

Advertisement

Quick Links

0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 1 Donnerstag, 21. Februar 2013 11:48 11
Operating manual
101
Double differential temperature control
Version 1308-22
Art. 0450021015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CETA 101 and is the answer not in the manual?

Questions and answers

Related Manuals for EbV elektronik CETA 101

Summary of Contents for EbV elektronik CETA 101

  • Page 1 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 1 Donnerstag, 21. Februar 2013 11:48 11 Operating manual Double differential temperature control Version 1308-22 Art. 0450021015...

  • Page 2: Table Of Contents

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 2 Donnerstag, 21. Februar 2013 11:48 11 Contents Scope of delivery ......................3 General ..........................3 Intended use ........................3 Safety ..........................3 General key functions ......................4 Version display (when starting) ..................4 Basic display ........................5 Function with direct access ....................6 Menu level .........................

  • Page 3: Scope Of Delivery

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 3 Donnerstag, 21. Februar 2013 11:48 11 Scope of delivery 1. 1x Central unit CETA 101 2. 1x Tank immersion sensor KVT 20/2/6 3. 2x Collector sensor PT1000/6 4. 8x Screw, plate 2,9x19 mm 5. 3x Screw assembly 4x35 mm 6.

  • Page 4: General Key Functions

    •Change menu item •Exit setting •Keep old value •Select next higher menu level Esc-Lang •Return to basic display 2. Version display (when starting) c 101= Type designation Ceta 101 2.2= Version display (due to update it can differ from example shown)

  • Page 5: Basic Display

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 5 Donnerstag, 21. Februar 2013 11:48 11 Basic display 3. Basic display Basic display 1 80.5°C= Temperature F3 heat supplier 1 (e.g. collector or solid fuel boiler) 44.0°C= Temperature F1 heat storage tank 1 Δ Display pump function P1 Δ...

  • Page 6: Function With Direct Access

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 6 Donnerstag, 21. Februar 2013 11:48 11 Function with direct access 4. Function with direct access Manual operation Controller is in manual mode 0...4 manual function — Activate by pressing and holding button — Change pump function via buttons —...

  • Page 7: Menu Level

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 7 Donnerstag, 21. Februar 2013 11:48 11 Menu level 5. Menu level General menu structure Ceta series Basic display Prog Select parameters Menu 01 Prog 02:01 02:02 02:nn Menu 02 Parameter 01 Parameter 02 Last parameter Prog Prog Value 1 Calibration Set parameter value...
  • Page 8 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 8 Donnerstag, 21. Februar 2013 11:48 11 Menu level Overview of menu level Basic display Prog 08:04 08:03 08:01 08:02 Pump Temperature Info Heat capacity Heat balance on/off heat supplier Prog 09:07 09:05 09:04 09:03 Operating hours Temperature of heat Temperature of heat Pump of pump 2...
  • Page 9 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 9 Donnerstag, 21. Februar 2013 11:48 11 Menu level 08:08 08:05 08:07 08:06 Temperature heat Pump starts Pump operating Return temperature storage tank hours 09:08 Pump 'T2 starts 03:09 03:10 Code heating Reset parameter specialist 08:05 'T1 08:06 'T1 08:07 'T1 08:08 'T1 08:09...

  • Page 10: Parameter Description

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 10 Donnerstag, 21. Februar 2013 11:48 11 Parameter description 6. Parameter description 01 Information level Display Designation Description Heat capacity ΔT1 08:01 Current heat capacity in W Heat balance ΔT1 08:02 Display of cumulative heat energy in kWh 08:03 Display pump 0: Pump is switched off...
  • Page 11 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 11 Donnerstag, 21. Februar 2013 11:48 11 Parameter description Display Designation Description 03:03 Bus address Setting range: 21…25 Factory setting: 21 Function: If more than one CETA 100 or 101 has to be connected via data bus within a system, each unit must be set to a unique address.
  • Page 12 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 12 Donnerstag, 21. Februar 2013 11:48 11 Parameter description Display Designation Description 08:03 Switch-off Setting range: 2K … (Switch-on differential - 3K) differential ΔT1 Factory setting: 5K Function: If temperate difference between sensors of heat supplier F3 and smaller heat storage tank F1 is than set value, the pump...
  • Page 13 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 13 Donnerstag, 21. Februar 2013 11:48 11 Parameter description Display Designation Description 08:09 Burner block Setting range: 0 ... 2 Heat generator ΔT1 Factory setting: 1 Function: 0 = OFF 1 = Burner block when pump is active 2 = Burner block only for DHW when pump is active 08:10...
  • Page 14 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 14 Donnerstag, 21. Februar 2013 11:48 11 Parameter description Display Designation Description 08:18 Heat exchange Setting range: OFF (----), 5 ... 50K difference Factory setting: OFF Function: If the F1 temperature is higher than 08:08 and the F3 temperature below 40°C, the pump will be switched on until the F1 is lowered to the set difference below 08:08.
  • Page 15 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 15 Donnerstag, 21. Februar 2013 11:48 11 Parameter description Display Designation Description 09:02 Switch-on Setting range: (Switch-off differential + 3K) … 30K differential ΔT2 Factory setting: 10K Function: If temperate difference between sensors of heat supplier F4 and larger heat storage tank F2 is than set value, the pump...
  • Page 16 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 16 Donnerstag, 21. Februar 2013 11:48 11 Parameter description Display Designation Description 09:09 Burner block Setting range: 0 ... 2 Heat generator ΔT2 Factory setting: 1 Function: 0 = OFF 1 = Burner block when pump is active 2 = Burner block only for DHW when pump is active 09:10...
  • Page 17 0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 17 Donnerstag, 21. Februar 2013 11:48 11 Parameter description Display Designation Description 09:21 Switch-off Setting range: (switch-off temperature +3K) ... 120 °C temperature Factory setting: 90 °C Δ thermostat Function: If F1 (F2) sinks below the set value, the T2 pump switches off.

  • Page 18: Mounting

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 18 Donnerstag, 21. Februar 2013 11:48 11 Mounting Mounting Hazard! Installation must be performed only by an authorised professional electrician! Ensure that unit is de-energised before opening it! Drilling pattern for wall fastening 1. Remove terminal area cover from casing.

  • Page 19: Terminal Diagram

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 19 Donnerstag, 21. Februar 2013 11:48 11 Terminal diagram 8. Terminal diagram Hazard! Connection must be performed only by an authorised professional electrician! Ensure that unit is de-energised before opening it! 230V connections Low voltage connections...

  • Page 20: Fault Clearance

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 20 Donnerstag, 21. Februar 2013 11:48 11 Fault clearance 9. Fault clearance To allow an accurate diagnosis in case of malfunction, the unit is equipped with a fault display system. The faults are shown on the basic display of the unit in form of an error code: Display 1 0---°C =...

  • Page 21: Sensor Resistance Values

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 21 Donnerstag, 21. Februar 2013 11:48 11 Sensor resistance values Fault code Cause Repair 13-1 Short circuit sensor F3 See 11-1 14-0 Interruption sensor F4 See 11-0 14-1 Short circuit sensor F4 See 11-1 10. Sensor resistance values Depending on temperature: PT1000 KVT 20...

  • Page 22: Declaration Of Conformity

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 22 Donnerstag, 21. Februar 2013 11:48 11 Declaration of conformity 11. Declaration of conformity...

  • Page 23: Technical Data

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 23 Donnerstag, 21. Februar 2013 11:48 11 Technical Data 12. Technical Data Power supply voltage: 230V +6%/ -10% Rated frequency: 50...60Hz Power input: max. 2.1VA Fuse: 6.3A Output relay contact load: 2 (2)A Ambient temperature: -10...+50°C Storage temperature: -25...+80°C Degree of protection: IP 30...

  • Page 24: Disposal

    0450021015_1308-22_BA_CETA101_EbV_EN.book Seite 24 Donnerstag, 21. Februar 2013 11:48 11 Disposal 14. Disposal Dispose of all replaced parts, and eventually the controller itself, in an environmentally sound manner in compliance with applicable statutory regulations of the corresponding country. Company stamp:...
