CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum. Spills should be taken
care of immediately before they harden or stain with a slightly
dampened sponge.
NOTICE
Please make sure that you have all parts indicated before you
begin assembly of this item.
Part List and Hardware List
PIECE
DESCRIPTION
A
Leg
B
Side
C
Seat
D
Back
E
Rear bar
F
Front bar
G1
Allen nut S
G2
Allen bolt S
G3
Allen bolt L
G4
Allen nut L
G5
Screw
G6
Extra bolt
G7
Allen Key
G8
Wrench
QUANTITY
2x
2x
2x
2x
2x
2x
6x
M6x45
4x
M6x45
4x
M6x70
2x
M6x90
4x
M4x35
1x
M6x50
1x
1x
MODEL
#
PAT
6754

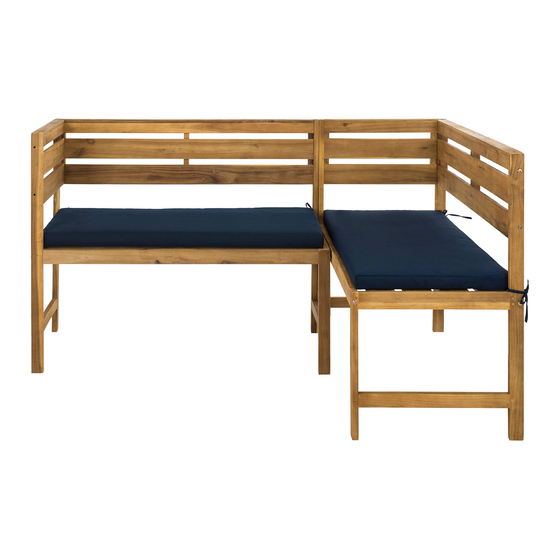

Product Dimension: 58.27"W x 39.37"D x 32.87"H
Weight capacity : 600 lbs
Warning : Do not stand on the bench
Warning : Do not torque bolts / screws
Advertisement
Table of Contents
Related Manuals for Safavieh PAT6754
Summary of Contents for Safavieh PAT6754
- Page 1 CARE AND MAINTENANCE Store outdoor furniture indoors or cover well when it is not in use. Dust regularly with small brush or vacuum. Spills should be taken care of immediately before they harden or stain with a slightly dampened sponge. NOTICE MODEL 6754...
- Page 2 PREPARATION Before beginning the assembly of the product, make sure all parts are present. Compare the parts with the package contents list and hardware contents list. If any parts are missing or damaged, do not attempt to assemble the product. Tool required for assembly (included): Allen Key and wrench.
- Page 3 Step 3: put the seat (C) to the bench as shown on the picture. Then use the screw (G5) to tighten the seat (C) to the bench. Step4 : repeat same step with other bench and connect 2 benches together as shown on the picture. Then use the Allen nut L (G4) to tighten the back together as shown on the picture.Lock 2 benches by turn on the bolt under seat to the hole as shown on the picture.
- Page 4 Dust regularly with small brush or vacuum. Spills should be taken care of immediately before they harden or stain with a slightly dampened sponge. NOTICE MODEL# PAT6754 Please make sure that you have all parts indicated before you Product Dimension:33.46”W x 19.69”D x 29.13”H begin assembly of this item.
