BGS technic 8320 Instruction Manual

BGS technic 8320 Instruction Manual

Duplex clutch repair kit for vag dsg transmissions
Hide thumbs Also See for 8320:

Advertisement

Quick Links

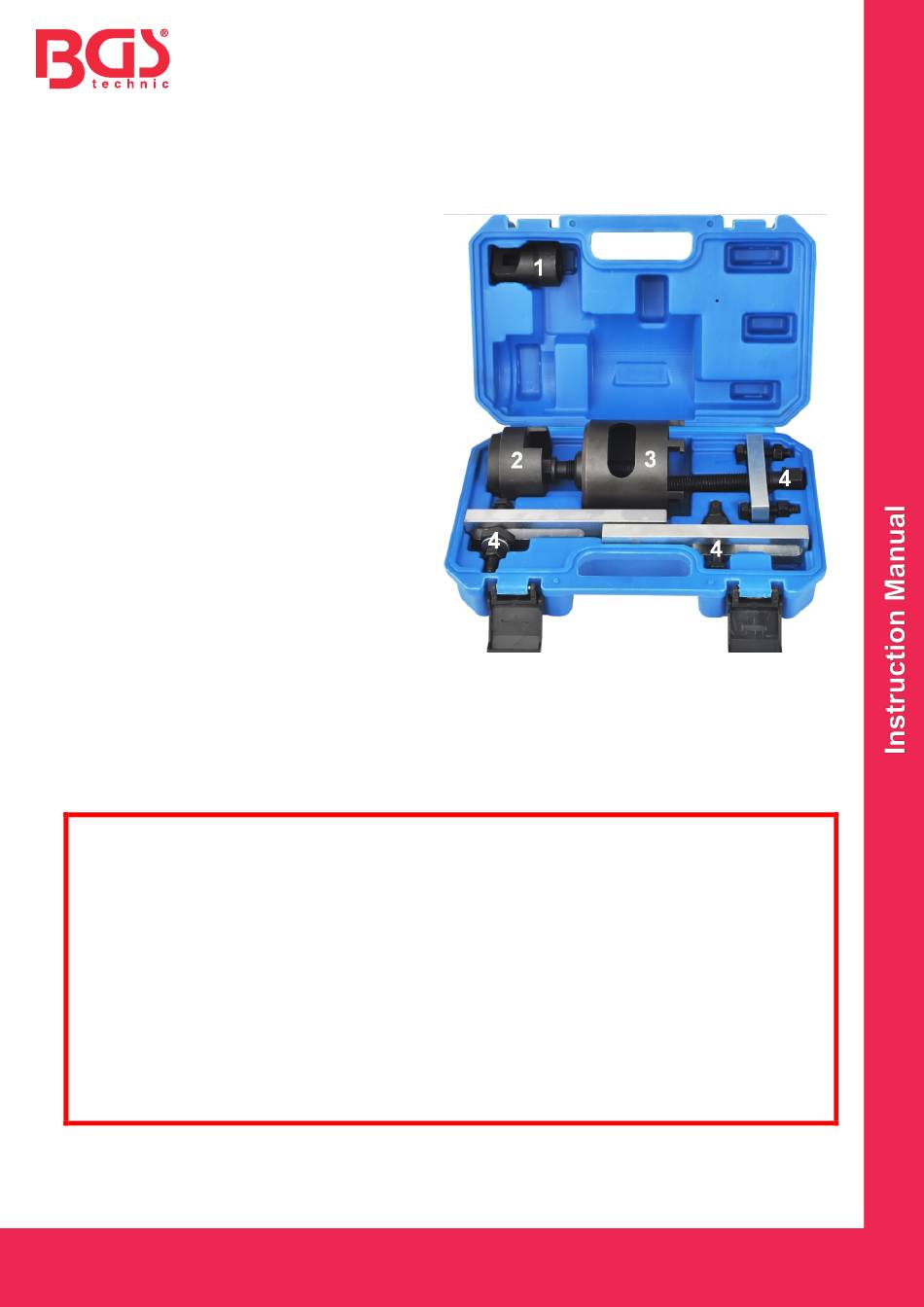

TOOLS

1
Thrust piece,
to be used as OEM T10376
2
Slip gauge,
to be used as OEM T10374
3
Puller,
to be used as OEM T10373
4
Support bridge,
to be used as OEM T10323

INTENDED USE

This repair kit is needed for servicing clutches in the following car types:
VW Golf (since 2004), Golf Plus (since 2005) with 7-drive transmission (Code 0AM), Audi A3 (since
2004) with 7-drive transmission (Code 0AM) and Touareg (since 2003) with 6-drive transmission
(Code 08D).

SAFETY INFORMATIONS

Do not use the tool if parts are missing or damaged.
Use the tool for the intended purpose only.
Never place the tool on the vehicle battery. There is a risk of a short circuit.
Be careful when working with the engine running. Loose clothing, tools and other objects can
be caught by rotating parts and cause serious injury.
Keep children and other unauthorized persons away from the work area.
Do not allow children to play with the tool or its packaging.
Be careful when working on hot engines because of the risk of burn injuries.
If you remove the ignition key before repairing, you can prevent the engine from being started
accidentally and resulting in engine damage.
This manual serves as a brief guide and does not replace a workshop manual. Always refer to
the vehicle-specific service literature, particularly the technical data such as torque values and
instructions for disassembly/assembly, etc..
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen
Duplex Clutch Repair Kit for
VAG DSG Transmissions
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
BGS 8320
www.bgstechnic.com
© BGS technic KG, Copying and further use not allowed
