  • Page 2: Table Of Contents

    User's manual Table of contents Safety Description III. Installing the module Configuring the module IV.a) Logging in on the website IV.b) Homepage IV.c) Changing the settings of zone view IV.d) Statistics IV.e) Settings TECHNICAL DATA...

  • Page 3: Safety

    ST-507 Safety Before using the device for the first time, the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries and device damage. The user's manual should be stored in a safe place for further reference.

  • Page 4: Description

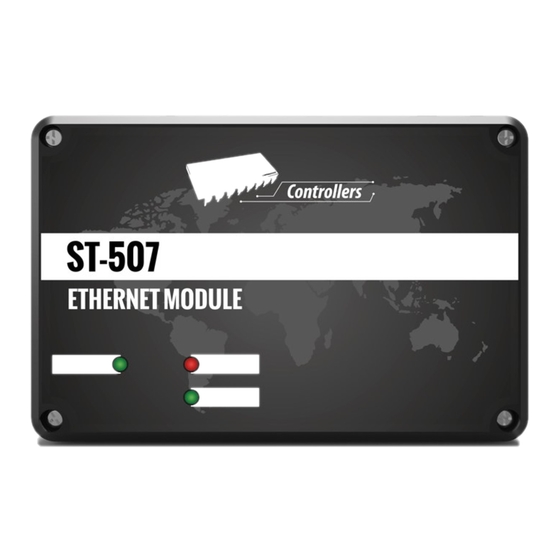

    User's manual II. Description The ST-507 Internet module is a device enabling remote control over the installation's operation via the Internet and is intended for cooperation with the ST-26402 strip. The user controls the operation of valves in particular zones and may also change the set temperature, define weekly schedules etc.

  • Page 5: Installing The Module

    ST-507 III. Installing the module The module should be installed by a qualified person. CAUTION Incorrect connection of cables may lead to module damage.

  • Page 6: Configuring The Module

    User's manual Configuring the module Installing the module with a controller In the case of cooperation with the ST-26402 strip, the installation and operation process is intuitive. After a correct connection of the module, the Internet module should be enabled in the strip's fitter's menu (Menu >>...
  • Page 7 After logging in to the account in the tab Settings, the user should enter the registration code generated by the controller. Any name may be assigned to the module (in the field module description): Registration panel for a new module. CAUTION Several different ST-507 modules may be operated from one account at oeg.emodul.eu.

  • Page 8: Iv.b) Homepage

    User's manual IV.b) Homepage The homepage is displayed in the tab Home with tiles illustrating the current condition of the zones. Clicking a tile, the user proceeds to the screen where he may select the zone operation mode. Screenshot showing an example of the main screen with zone tiles. CAUTION The message "No Communication"...
  • Page 9 ST-507 The upper value means the current temperature in the zone, while the lower value – the set tempera- ture. The set temperature in a given zone depends by default on the settings of the selected weekly schedule. However, the mode Constant Temperature allows the user to adjust a separate set value which will be valid in a given zone, regardless of the time of the day.
  • Page 10 User's manual After selecting the schedule and clicking OK, the user proceeds to the screen where he may edit the settings of the weekly schedule: Screenshot showing the screen for editing the settings of the weekly schedule. Editing each schedule allows the user to define two programs of settings as well as to select days in which these programs will be valid (e.g.

  • Page 11: Iv.c) Changing The Settings Of Zone View

    ST-507 IV.c) Changing the settings of zone view The user may adjust the appearance of the homepage to his needs, changing the names of zones as well as the background of particular tiles. These changes may be introduced in the tab Zones.

  • Page 12: Iv.e) Settings

    User's manual IV.e) Settings The tab Settings allows the user to register a new module, change the e-mail address as well as change the account's password: Screenshot showing the tab Settings.

  • Page 13: Technical Data

    ST-507 V. TECHNICAL DATA Specification Power supply voltage 5V DC Maximum current intake 200 mA Transmission IEEE 802.3 10 Mb/s Connection with the network RJ 45 connection Connection with the controller RJ12 connection...
  • Page 14 User's manual...
  • Page 15 ST-507 Declaration of conformity No 188/2015 The company TECH, based in Wieprz (34-122) at ul. Biała Droga 31, declares with complete liability that our Internet module ST-507 meets the requirements of the following EC directives:  R&TTE Directive 1999/5/EC;  Low Voltage Directive (LVD) 2006/95/EC;...
