ORION TELESCOPES & BINOCULARS 52053 Instruction Manual

30mm ultra-mini guide scope

Orion® 30mm Ultra-Mini Guide Scope

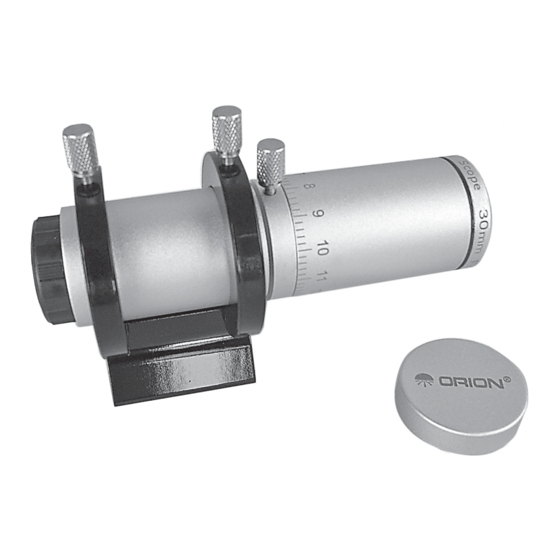

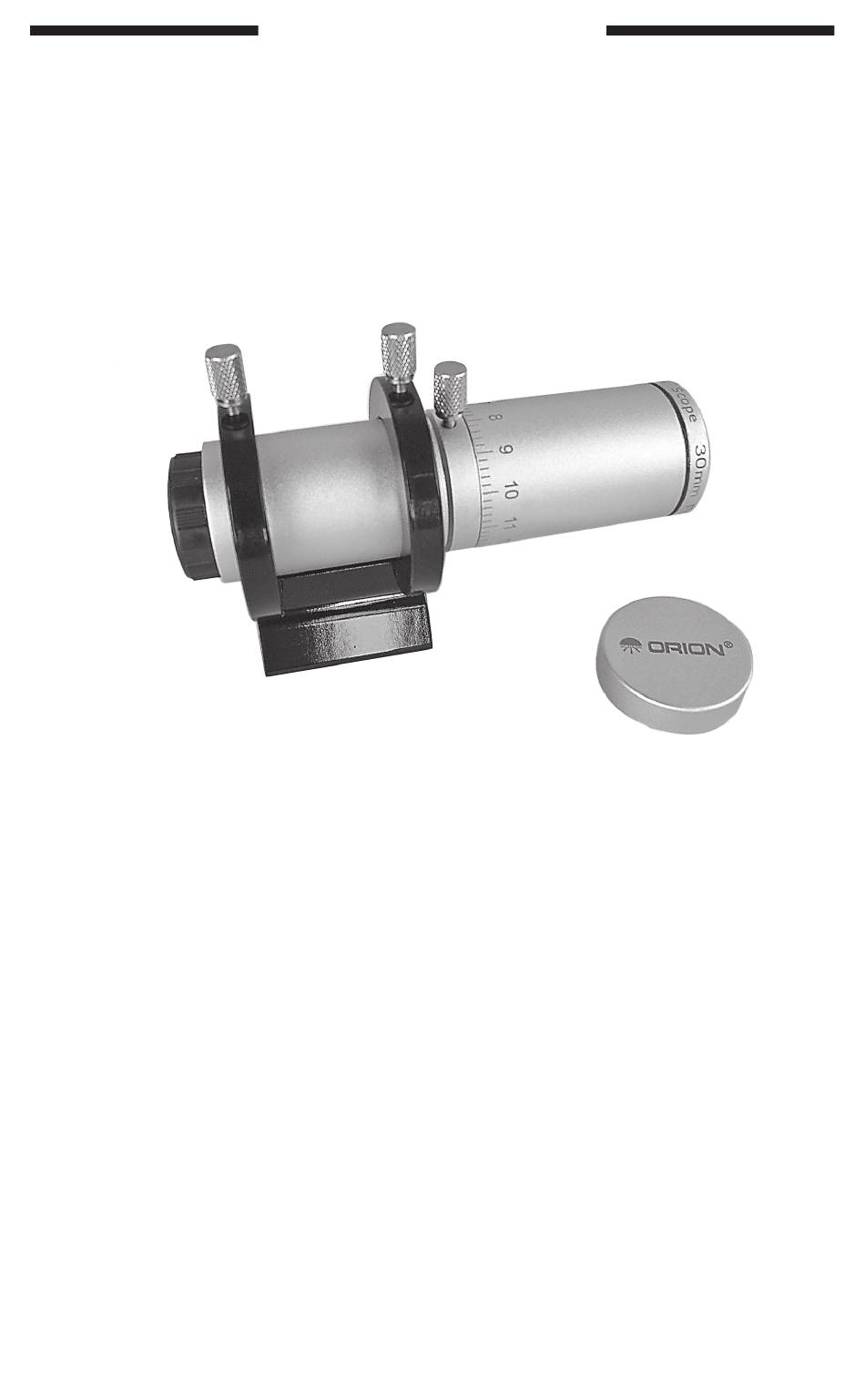

Figure 1. The 30mm Ultra-Mini Guide Scope and dual-ring bracket

Included Items

• 30mm Ultra-Mini guide scope

• Dual-ring mounting bracket

• 5mm CS/C extension ring

• Aluminum objective cap

• Plastic camera-end cap

Your Ultra-Mini Guidescope (Figure 1) is designed for use with the Orion

StarShoot AutoGuider Pro Mono and StarShoot All-in-One cameras, or similar

eyepiece-sized cameras with female C or CS mount threads (cameras sold sep-

arately). The guide scope is ideal for astrophotographic guiding with short focal

length instruments.

The dual-ring bracket has a dovetail foot (see Figure 2) that is compatible with

Orion dovetail finder scope mounting shoes, as well as those of many other tele-

scope brands. Insert the guide scope into the rings from the back (threaded) end

and secure it with the two thumbscrews. Then insert the bracket foot into the com-

patible finder scope mounting shoe on your telescope or mounting plate.

INSTRUCTION MANUAL

#52053

IN 569 09/16

Table of Contents

Do you have a question about the 52053 and is the answer not in the manual?

Page 1 INSTRUCTION MANUAL Orion® 30mm Ultra-Mini Guide Scope #52053 Figure 1. The 30mm Ultra-Mini Guide Scope and dual-ring bracket Included Items • 30mm Ultra-Mini guide scope • Dual-ring mounting bracket • 5mm CS/C extension ring • Aluminum objective cap • Plastic camera-end cap...
Page 2 Focus lock C–mount threads Bracket Rotate to focus Dovetail foot Figure 2. Parts of the 30mm Ultra-Mini Guide Scope Attaching your AutoGuider Camera To attach a camera equipped with C-mount threads, such as the Orion StarShoot AutoGuider Pro and StarShoot All-in-One, just thread the camera onto the C-mount threads of the guide scope until it’s firmly attached, as in Figure 3.
Page 3 Figure 3. The 30mm Ultra-Mini Guide Scope shown with the StarShoot AutoGuider Pro Monochrome camera attached. Figure 4. The CS/C Extension Ring is needed to couple CS-mount cameras to the 30mm Ultra-Mini Guide Scope, in order to achieve proper focus. SPECIFICATIONS Aperture: 30mm...
Page 4 One-Year Limited Warranty This Orion product is warranted against defects in materials or workmanship for a peri- od of one year from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s option, any warranted instrument that proves to be defec- tive, provided it is returned postage paid.
