SERVICE MANUAL
EN
IMPORTANT: Read and follow all Instructions and Safety
Precautions before installing, operating or maintaining this
equipment. Keep this manual for future reference.
Improper use can cause bodily injury or equipment
damage. Read the following:
• This air regulator and gauge assembly is intended only
for use in general service air systems. Do not use for
liquids or gases other than air.
• Do not use where pressure or temperature can exceed
rated operating conditions (see specifications).
• Regulated outlet pressure must never be set higher
than the maximum operating pressure of the down-
stream air tool or equipment. An outlet pressure gauge
should always be used.
The accuracy of the indication of pressure gauges can
change during shipment and normal use. If gauge
accuracy is necessary for preventing risks of injury or
property damage, the gauge should be checked before
use and on a routine periodic basis. (See ANSI B40-1974
for gauge standards.)

SPECIFICATIONS

Type
Inlet Size (Nipple)
Outlet Size (Swivel Adapter)
Gauge Port Size (two) in Regulator 1/8" NPT(F)
Gauge Range
Maximum Air Flow Rate
Rated Operating Conditions:
Inlet Pressure
Temperature 0° to 150° F with dewpoint
less than air temp. below 35° F
*Outlet pressure adjustment range 5 to 100 PSIG.
It is the Customer's responsibility to have all operators and service personnel read and understand this manual.
Contact your local DeVilbiss representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS DEVILBISS PRODUCT.
SB-6-105-R2 (4/2019)

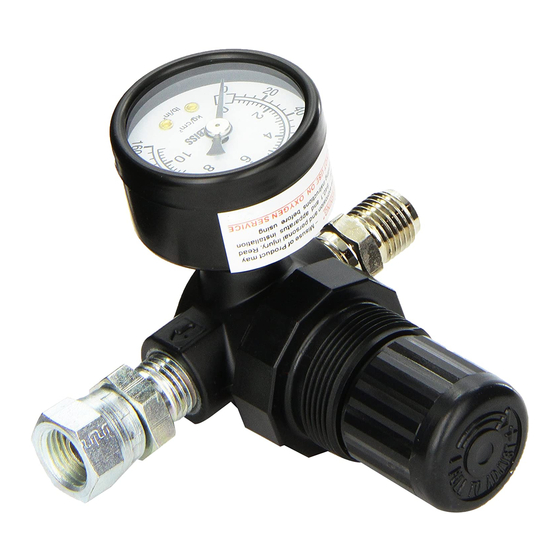

HARG-510 AIR REGULATOR
AND GAUGE ASSEMBLY
Diaphragm, relieving
1/4" NPS(M)
1/4" NPS(F)
0-160 PSIG
15 SCFM
300 PSIG max.
IMPORTANT! DO NOT DESTROY
1 / 4
*Note
This range is not minimum or maximum outlet pressure
limit for the regulator. The regulator can be adjusted to
zero PSIG outlet pressure and to pressures higher than
100 PSIG. However, this regulator should not be used to
control pressures outside this specified range.

CONSTRUCTION MATERIALS

Bonnet and Valve Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . Acetal
Diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . PTFE/Buna-N/PTFE
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Zinc
Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PTFE
Adjusting Knob
2
4

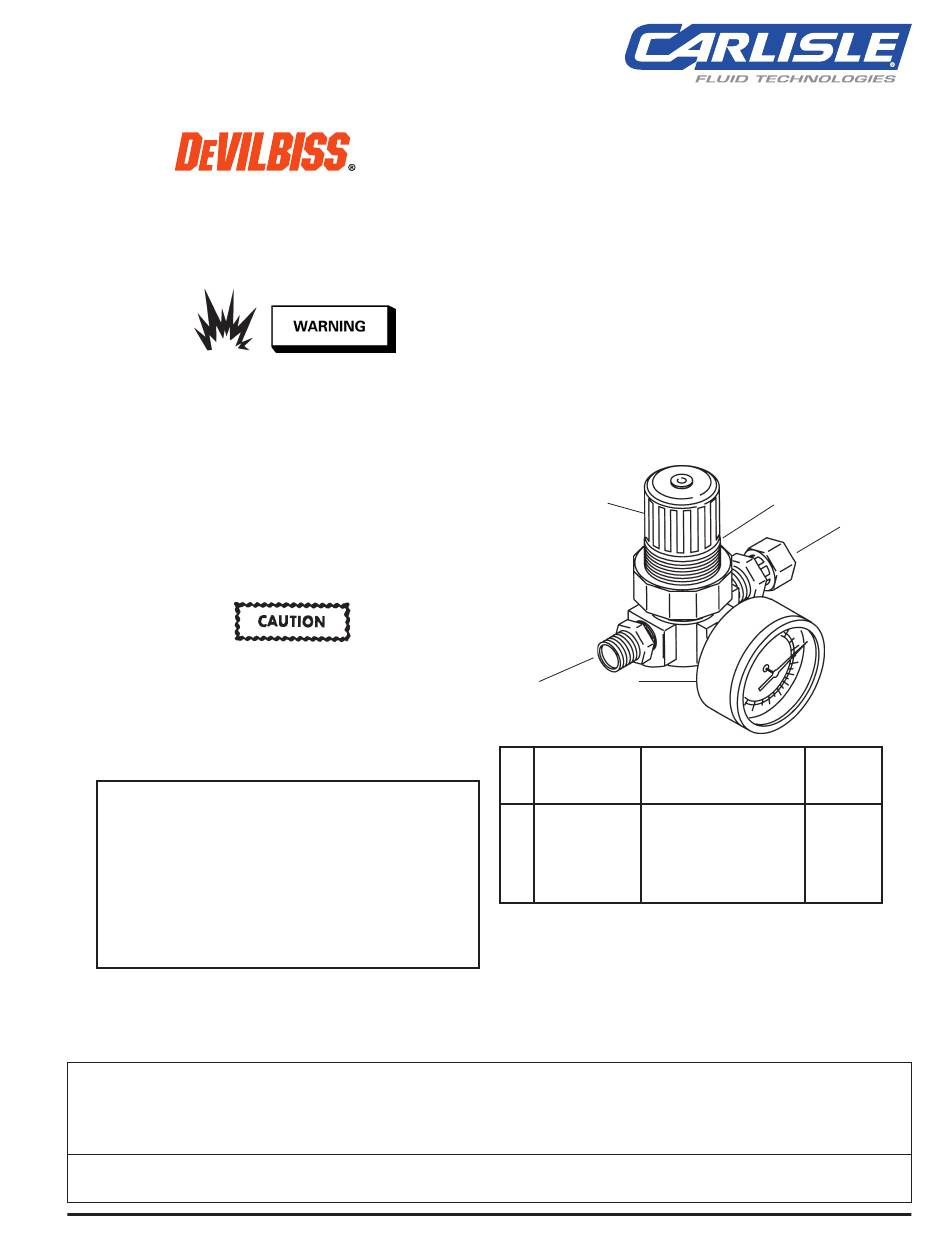

PARTS LIST

Ref. Replacement
No. Part No.
1 Air Regulator
2 GA-338 Pressure Gauge
3 SSP-8217-ZN Swivel Adapter 1/4"
NPT(M) X 1/4" NPS(F)
4 H-2008 Nipple 1/4" NPT(M)
X 1/4" NPS(M)
See Pg. 2 for breakdown.

DESCRIPTION

This unit is used in a compressed air system to maintain a nearly
constant outlet pressure despite change in inlet air pressure and
changes in downstream flow requirements. It is also used for
finer control of air at the spray device. The air setting can be
locked in place by pushing the adjusting knob downward.
1
3
Individual
Parts
Description Required
1
1
1
1
