DeVilbiss HARG-510 Service Bulletin

IMPORTANT: Read and follow all Instructions and Safety Pre-
cautions before installing, operating or maintaining this equip-
ment. Keep this manual for future reference.
Improper use can cause bodily injury or equipment dam-
age. Read the following:
• This air regulator and gauge assembly is intended only
for use in general service air systems. Do not use for
liquids or gases other than air.
• Do not use where pressure or temperature can exceed
rated operating conditions (see specifications).
• Regulated outlet pressure must never be set higher
than the maximum operating pressure of the down-
stream air tool or equipment. An outlet pressure gauge
should always be used.
The accuracy of the indication of pressure gauges can
change during shipment and normal use. If gauge
accuracy is necessary for preventing risks of injury or
property damage, the gauge should be checked before
use and on a routine periodic basis. (See ANSI B40-1974
for gauge standards.)
PROP 65 WARNING: This product contains chemicals
known to the State of California to cause cancer and birth
defects or other reproductive harm.
SPECIFICATIONS
Type
Inlet Size (Nipple)
Outlet Size (Swivel Adapter)
Gauge Port Size (two) in Regulator 1/8" NPT(F)
Gauge Range
Rated Operating Conditions:
Inlet Pressure
Temperature 0° to 150° F with dewpoint
less than air temp. below 35° F
*Outlet pressure adjustment range 5 to 100 PSIG.

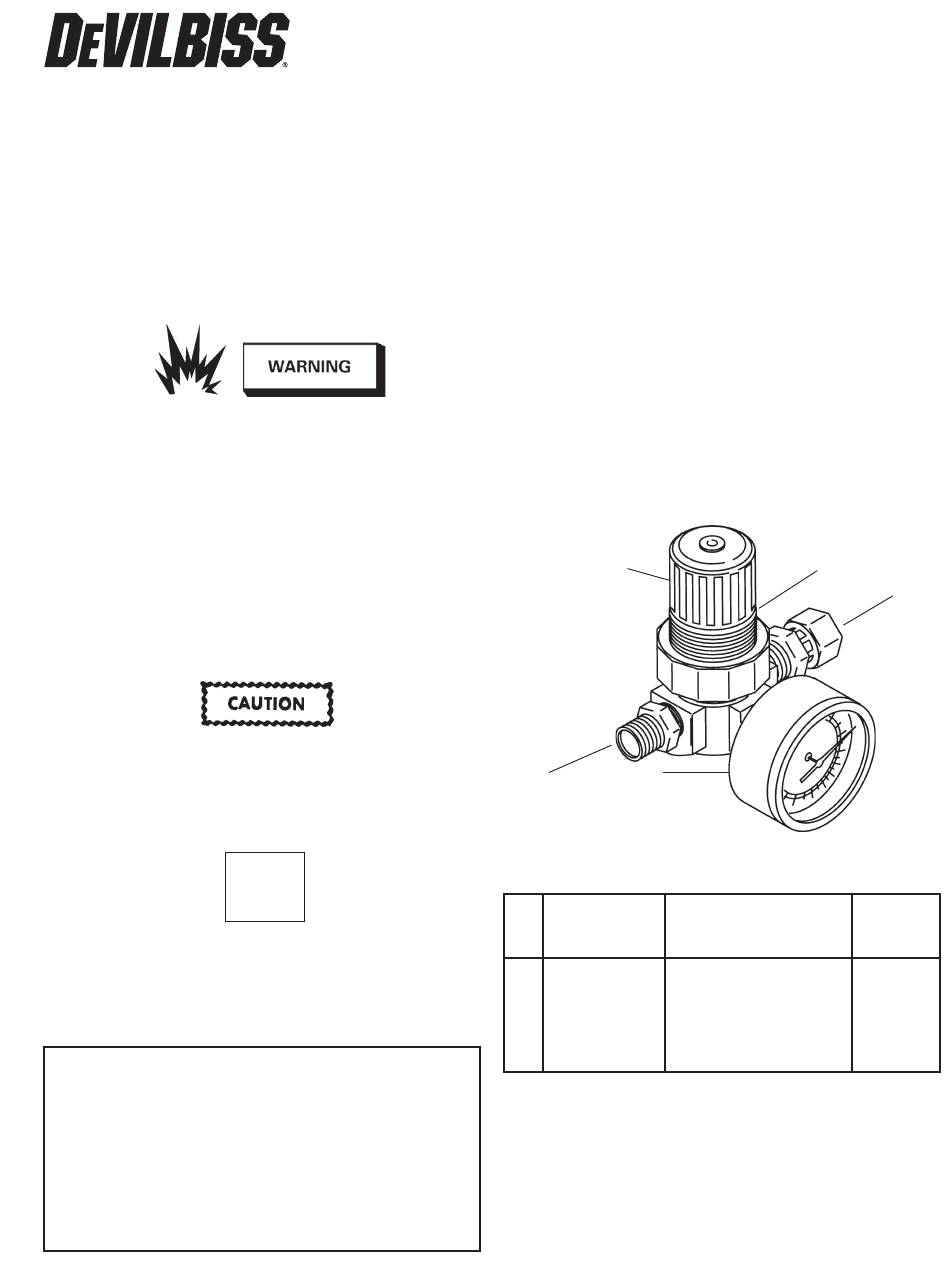

HARG-510 AIR REGULATOR
AND GAUGE ASSEMBLY
CA PROP
65
Diaphragm, relieving
1/4" NPS(M)
1/4" NPS(F)
0-160 PSIG
300 PSIG max.
This range is not minimum or maximum outlet pressure
limit for the regulator. The regulator can be adjusted to
zero PSIG outlet pressure and to pressures higher than
100 PSIG. However, this regulator should not be used to
control pressures outside this specified range.
CONSTRUCTION MATERIALS
Bonnet and Valve Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . Acetal
Diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . Teflon/Buna-N/Teflon
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Zinc
Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Teflon
Adjusting Knob
2
4
PARTS LIST
Ref. Replacement
No. Part No.
1 Air Regulator
2 GA-338 Pressure Gauge
3 SSP-8217-ZN Swivel Adapter 1/4"
NPT(M) X 1/4" NPS(F)
4 H-2008 Nipple 1/4" NPT(M)
X 1/4" NPS(M)
See Pg. 2 for breakdown.
DESCRIPTION
This unit is used in a compressed air system to maintain a nearly
constant outlet pressure despite change in inlet air pressure and
changes in downstream flow requirements. It is also used for
finer control of air at the spray device. The air setting can be
locked in place by pushing the adjusting knob downward.
SERVICE BULLETIN
SB-6-105-J
Replaces SB-6-105-H
*Note
PTFE
1
Individual
Description Required
PTFE
PTFE
3
Parts
1
1
1
1
