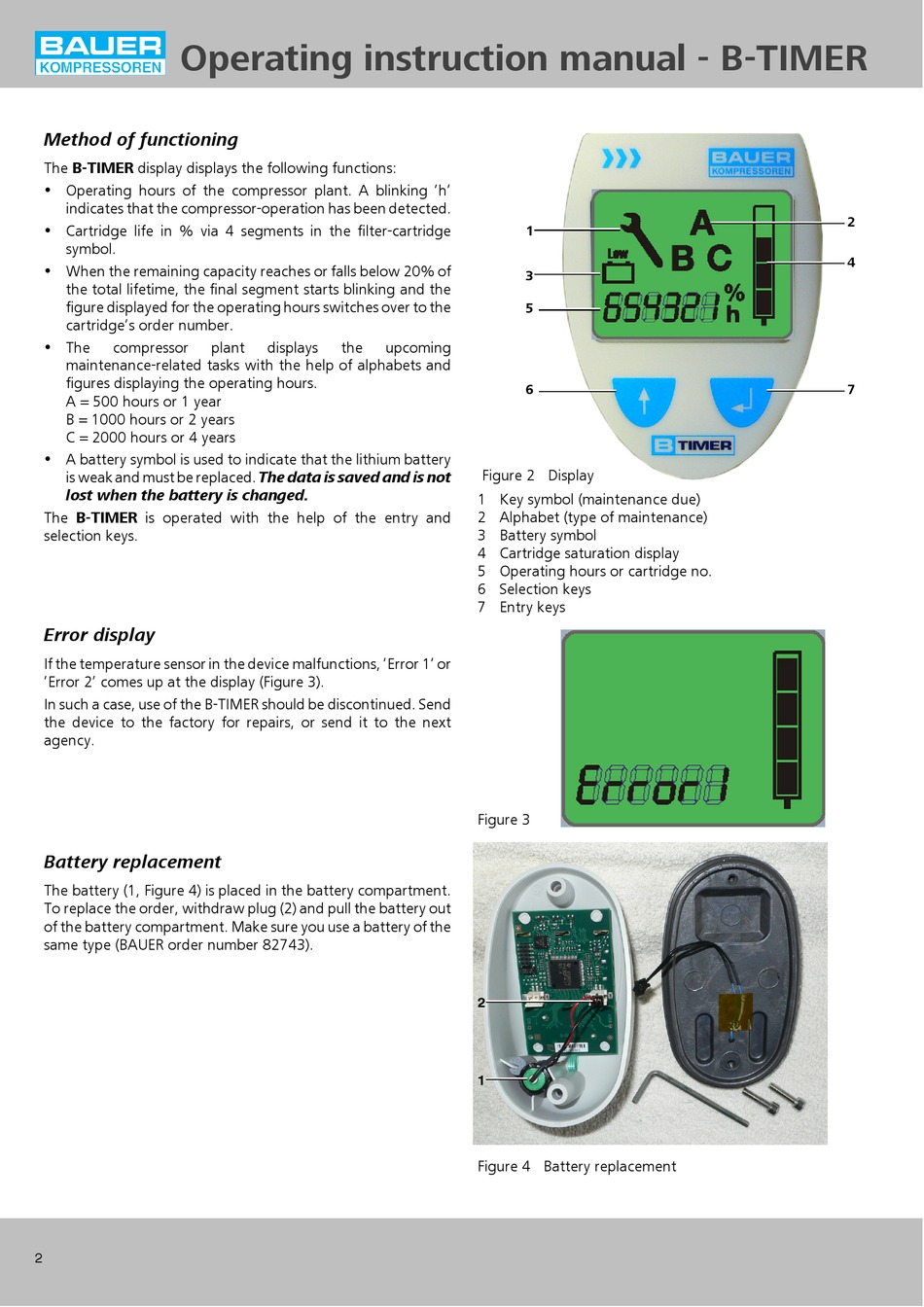

Bauer B-TIMER Operating Instructions Manual page 2

Operating instruction manual - B-TIMER
Method of functioning
The B-TIMER display displays the following functions:
 Operating hours of the compressor plant. A blinking 'h'
indicates that the compressor-operation has been detected.
 Cartridge life in % via 4 segments in the filter-cartridge
symbol.
 When the remaining capacity reaches or falls below 20% of
the total lifetime, the final segment starts blinking and the
figure displayed for the operating hours switches over to the
cartridge's order number.
 The compressor
maintenance-related tasks with the help of alphabets and
figures displaying the operating hours.
A = 500 hours or 1 year
B = 1000 hours or 2 years
C = 2000 hours or 4 years
 A battery symbol is used to indicate that the lithium battery
is weak and must be replaced. The data is saved and is not
lost when the battery is changed.
The B-TIMER is operated with the help of the entry and
selection keys.
Error display
If the temperature sensor in the device malfunctions, 'Error 1' or
'Error 2' comes up at the display (Figure 3).
In such a case, use of the B-TIMER should be discontinued. Send
the device to the factory for repairs, or send it to the next
agency.
Battery replacement
The battery (1, Figure 4) is placed in the battery compartment.
To replace the order, withdraw plug (2) and pull the battery out
of the battery compartment. Make sure you use a battery of the
same type (BAUER order number 82743).
2
plant displays the upcoming
1
3
5
6
Figure 2 Display
1 Key symbol (maintenance due)
2 Alphabet (type of maintenance)
3 Battery symbol
4 Cartridge saturation display
5 Operating hours or cartridge no.
6 Selection keys
7 Entry keys
Figure 3
2
1
Figure 4 Battery replacement
2
4
7
