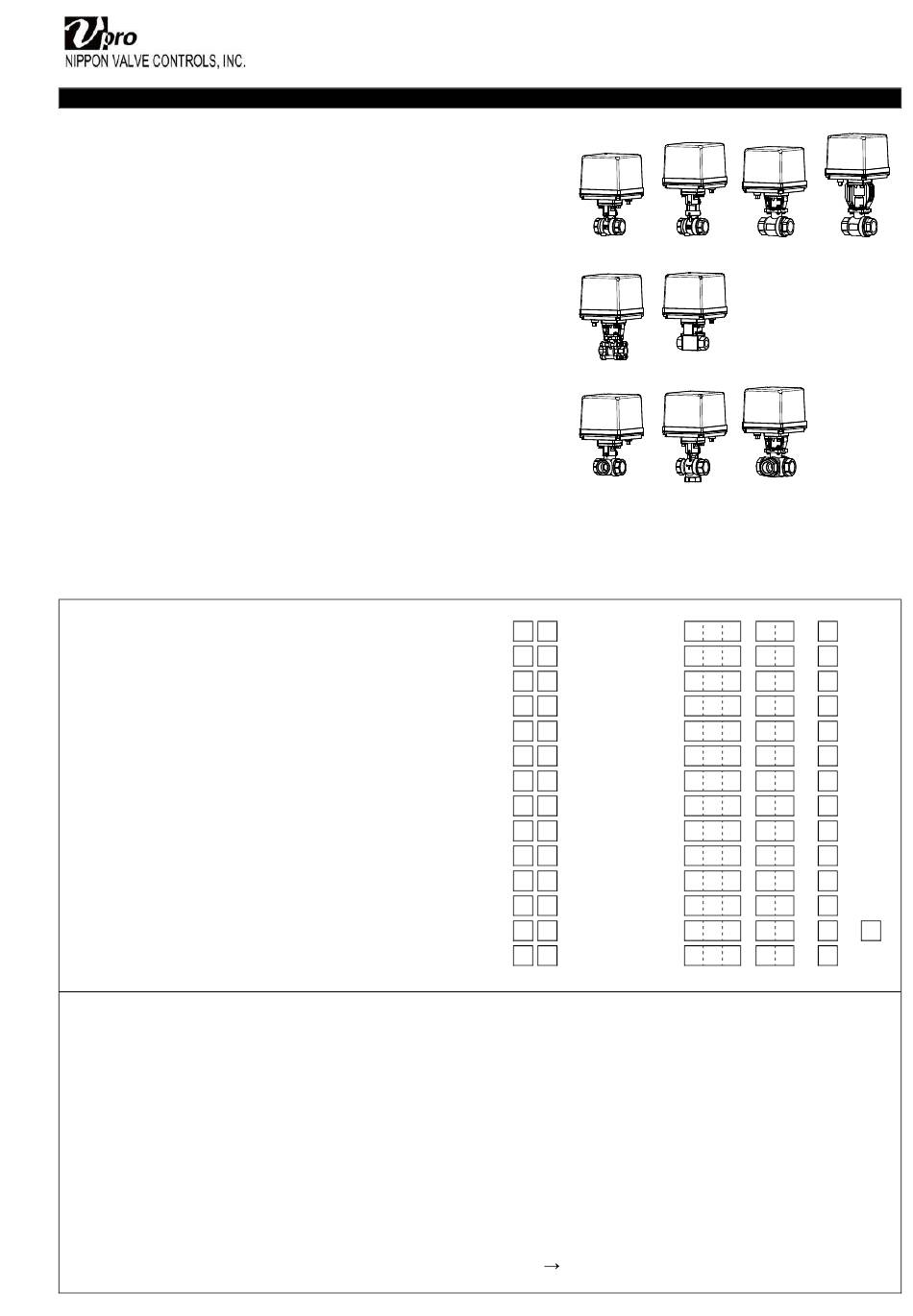

Nippon E Instruction Manual

Please read this manual before installation and use.
GENERAL
Ultra-high capacity electric double-layer capacitor.
In case of power failure, electric discharge form built-in capacitor
allows continued valve to operation.
Actuator
ECR : For AC power
Valve
E type For general use.
EG type For high temp. (up to 1 MPa)
SR type For food / Corrosive fluid.
SH type For high temp. (up to 2 MPa)
MS type 3 piece / For heavy load.
MH type 3 piece / For high pressure.
H type For high pressure.
EL type For general use.
TV type For diversion flow and mixing.
ST type 4 seats, 3 way. (with flow paths)
SL type 4 seats, 3 way.
PRODUCT CODE
E type (Brass)
(Stainless)
EG type
SR type
SH type
MS type
MH type (Valve seat: POM)
(Valve seat: R-F-PTFE)
H type (Body material: Carbon steel)
(Body material: Stainless)
EL type
TV type
ST type
SL type
(1) Actuator
ECR
(2) Valve
E- EG SR SH
MS MH H
EL TV ST SL
(3) Voltage
1 : 100 / 110V AC
2 : 200 / 220V AC
Electric Actuated Ball Valve E EG SR SH MS MH H EL TV ST SL
E C R E -
E C R E -
E C R E G
E C R S R
E C R S H
E C R M S
E C R M H
E C R M H
E C R H -
E C R H -
E C R E L
E C R T V
E C R S T
E C R S L
(4) Sizing code
0 : Standard
1 : Light
2 : Heavy
(5) Connection
5 : Threaded End Rc
(6) Body material
Y : C3771BE
U : SCS14A
SUS316Ti
S : Carbon steel
T : SCS13A
Instruction manual
MS / MH
5 Y Y F -
5 U U T -
5 U U P -
5 U U T -
5 U U F -
5 U U P -
5 U U D -
5 U U R -
5 S U D -
5 U U D -
5 U U T -
5 T T P -
5 U U F -
5 U U F -
(1) (2) (3) (4) (5) (6) (7) (8)
(7) Ball material
Y : C3771BE / C3604BD
U : SCS14A / SUS316
T : SCS13A / SUS304
(8) Seat material
F : F-PTFE
T : PTFE
P : R-PTFE
D : POM
R : R-F-PTFE
(9) Size [mm]
ex. 25A 025
1/10
E EG SR
H
EL TV ST / SL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(9) (10)
(10) Option
SC : Seat for
abnormal
pressure rise
X6 : Heat isolation
X2 : Heat isolation
(11) Operation mode
Nil : Mode A
Q : Mode B
(12) Flow paths
a to d : ST type
OSEEX206-EN
SP-1385
SH
-
-
-
-
-
-
-
-
-
-
-
-
- -
-
(11) (12)
