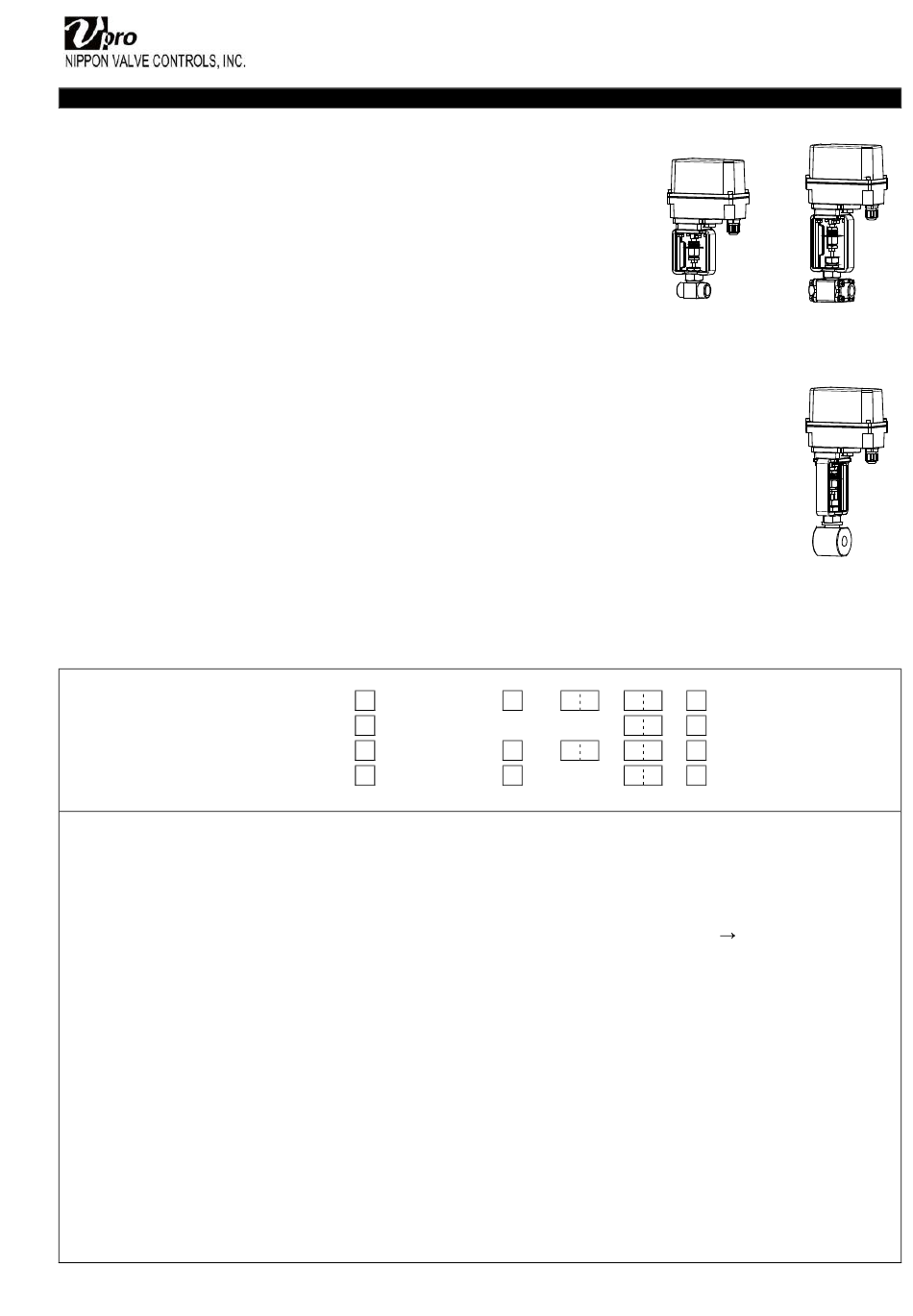

Nippon Vpro NS Instruction Manual

Please read this manual before installation and use.
GENERAL
Compact and lightweight electric actuated needle valve. (linear)
LAX type actuator has a high quality positioner.
Valve
NS type For general use
NH type 3 piece / For high pressure and high temp.
NP type For Corrosive fluid
PRODUCT CODE
NS type (Linear)
(EQ%)
NH type
NP type
(1) Actuator
LAX
(2) Valve
NS
NH
NP
(3) Voltage
1 : 100 / 110 V AC
2 : 200 / 220 V AC
(4) Sizing code
0 : Standard
1 : Light
2 : Heavy
Instruction manual
Electric Actuated Needle Valve
L A X N S 0 5 U U F
L A X N S 0 5 U U F X
L A X N H 0 5 U U T
L A X N P 0 1 K K T
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
(5) Connection
5 : Threaded End Rc
1 : JIS 10K
(6) Body material
U : SCS14A / SUS316
K : PEEK
(7) Trim material
U : SUS316
K : PEEK
(8) Stem packing material
F : F-PTFE
T : PTFE
(9) Cv value
S : 0.05
M : 0.13
L : 0.34
H : 0.8 (NP: 1.4)
X : 2 (NP: 0.8)
NS NH NP
0 -
E 1 5 -
0 -
0 1 5 -
(12)
(10) Flow characteristics
(11) Size [mm]
(12) Option
(13) Operation mode
1/7
OSCNS209-EN
NS NH
NP
-
-
-
-
(13)
0 : Linear
E : EQ%
ex. 15 A 15
Nil : Mode A
J : Mode B
