- Page 1 Quick Start Guide QG000115 TDC-GP30 DEV-KIT Ordering Code: GP30-DEV-KIT / GP30-DEV-KIT-F01 v2-00 • 2019-Feb-26...
- Page 2 TDC-GP30 ● DEV-KIT Document Feedback Content Guide Content Guide Out of the Box ........ 3 Software Installation ...... 4 Connect Hardware ......5 Start the Application ...... 6 Quick Start Guide • PUBLIC QG000115 • v2-00 • 2019-Feb-26 │ 2...

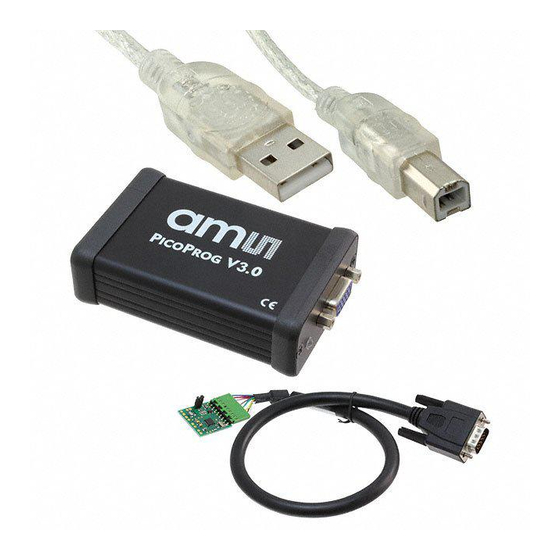

- Page 3 TDC-GP30 ● DEV-KIT Document Feedback Out of the Box Out of the Box For a detailed description of the TDC-GP30 DEV-KIT, please refer to User Guide: ● UG000292 Figure 1: Kit Content Pos. Item Comments PICOPROG V3.0 Programmer and Interface...
- Page 4 TDC-GP30 ● DEV-KIT Document Feedback Software Installation Software Installation It is crucial to install the software before connecting the evaluation kit to your computer. A default driver loading of your OS may interfere with correct installation. Figure 2: Software Installation...
- Page 5 TDC-GP30 ● DEV-KIT Document Feedback Connect Hardware Connect Hardware Make sure software is installed correctly before proceeding with this step! Figure 3: Connect Hardware Step Instruction/Description Schematic Representation Connect your computer with the PICOPROG V3.0 using USB cable Connect PICOPROG V3.0...
- Page 6 TDC-GP30 ● DEV-KIT Document Feedback Start the Application Start the Application ● Execute the GP30 Frontpanel software. The communication status should be green In case of no communication with PICOPROG, check the USB driver and used USB port. In case of no communication with GP30, check the connection to GP30 and press “System Reset”...
- Page 7 TDC-GP30 ● DEV-KIT Document Feedback Start the Application ● Press “Start Measurement” The measurement should run and results should be displayed now. Quick Start Guide • PUBLIC QG000115 • v2-00 • 2019-Feb-26 │ 7...
- Page 8 AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein.
