WiFi Antenna Connector (Optional)
1
This connector allows you to connect an external antenna for wireless
LAN.
GbE RJ45 Port
2
The standard RJ45 LAN jack is provided for connection to the Local
Area Network (LAN). You can connect a network cable to it.
Extend Switch Connector
3
This connector is provided for remote power button control.
USB 32 Gen 1 Port (For SKU1)
4
USB 3.2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-
speed data transfer for various devices, such as storage devices,
hard drives, video cameras, etc.
USB 32 Gen 2 Port (For SKU2)
USB 3.2 Gen 2, the SuperSpeed USB 10Gbps, delivers high-speed
data transfer for various devices, such as storage devices, hard
drives, video cameras, etc.

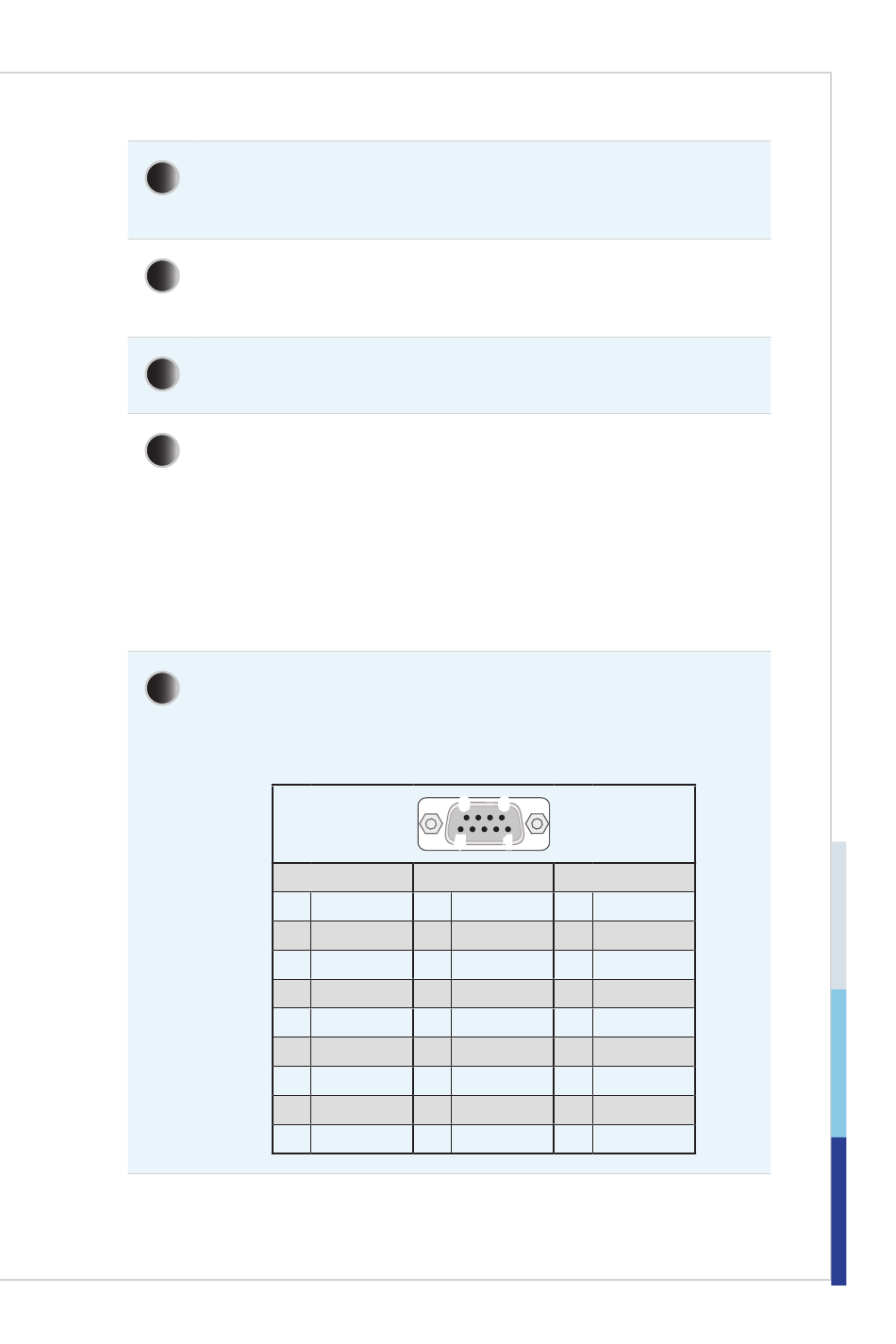

RS232/422/485 Serial Port
5
The serial port is a 16550A high speed communications port that
sends/receives 16 bytes FIFOs. It supports barcode scanners, bar-
code printers, bill printers, credit card machine, etc.
RS232
1
2
3
4
5
6
7
8
9
9
5
RS422
DCD
1
TXD-
RXD
2
RXD+
TXD
3
TXD+
DTR
4
RXD-
GND
5
GND
DSR
6
NC
RTS
7
NC
CTS
8
NC
RI/POWER
9
NC
6
1
RS485
1
TXD-
2
NC
3
TXD+
4
NC
5
GND
6
NC
7
NC
8
NC
9
NC
MS-9B05
