Summary of Contents for MSI WindBOX MS-9B05

  • Page 1 MS-9B05 WindBOX Industrial Data Machine...

  • Page 2: Revision History

    Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.

  • Page 3: Safety Instructions

    MS-9B05 Safety Instructions ￭ Always read the safety instructions carefully. ￭ Keep this User’s Manual for future reference. ￭ Keep this equipment away from humidity. ￭ Lay this equipment on a reliable flat surface before setting it up. ￭ The openings on the enclosure are for air convection hence protects the equipment from overheating.

  • Page 4: Chemical Substances Information

    Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at: https://www.msi.com/html/popup/csr/evmtprtt_pcm.html Battery Information European Union: Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste.

  • Page 5: Ce Conformity

    MS-9B05 CE Conformity Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive. FCC-A Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 6: Table Of Contents

    Preface CONTENTS Copyright and Trademarks Notice ..............ii Revision History .................... ii Technical Support ..................ii Safety Instructions ..................iii Chemical Substances Information ............... iv Battery Information ..................iv CE Conformity ....................v FCC-A Radio Frequency Interference Statement ......... v WEEE Statement ..................v 1 Overview1-1 System Overview ..................1-2 System Specifications ................1-6...

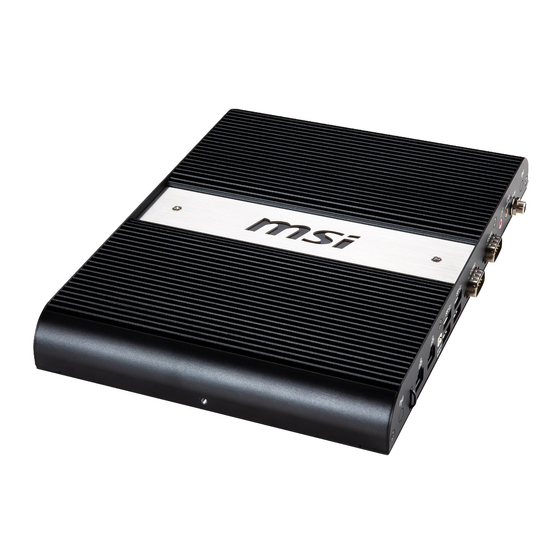

  • Page 7 Overview Thank you for choosing the MS-9B05, an excellent industrial data ma- chine from MSI. The MS-9B05’s wide heatsink fanless solution eliminates the noise and the risk of fan failure. Furthermore, it supports VESA wall-mount inter- face for various scenarios like digital signage, kiosk, industrial control...

  • Page 8: System Overview

    Overview System Overview System I/O & Controls SKU1 SKU2...
  • Page 9 MS-9B05 WiFi Antenna Connector (Optional) This connector allows you to connect an external antenna for wireless LAN. GbE RJ45 Port The standard RJ45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it. Extend Switch Connector This connector is provided for remote power button control.
  • Page 10 Overview Mic-In Jack Used as a connector for a microphone. Line-In Jack (by AP driver) Used for connecting external audio output devices. S/PDIF-Out Jack S/PDIF (Sony/Philips Digital Interface Format) is a type of digital au- dio interconnect used in consumer audio equipment, home theaters and other digital high-fidelity systems.
  • Page 11 MS-9B05 USB 20 Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. It sup- ports up to 480Mbit/s (Hi-Speed) data transfer rate. HDMI 20 Port (For SKU2) The High-Definition Multimedia Interface (HDMI) is an all-digital audio/ video interface capable of transmitting uncompressed streams.

  • Page 12: System Specifications

    Overview System Specifications Processor ■ SKU1: 8th Gen Intel Mobile Whiskey Lake-U Celeron Processor, DC, 15W ® ® ■ SKU2: 8th Gen Intel Mobile Whiskey Lake-U Core™ i5 Processor, QC, ® Memory ■ 2 x 260-pin SO-DIMM slots ■ Support the maximum of 32GB ■...
  • Page 13 MS-9B05 Graphics ■ Intel UHD Graphics 620 ® ■ Shared system memory up to 1.7 GB SDRAM ■ 3 independent displays ■ SKU1 » HDMI 1.4 up to 4096 x 2160 @24Hz » DisplayPort 1.2 up to to 4096 x 2304 @60Hz »...
  • Page 14 Overview Right Panel Input/Output ■ 2 x WiFi Antenna Connectors (Optional) ■ 2 x GbE RJ45 Ports ■ 1 x Extend Switch Connector ■ 2 x USB 3.2 Gen 1 Ports (For SKU1) ■ 2 x USB 3.2 Gen 2 Ports (For SKU2) ■...

  • Page 15: Motherboard Jumpers

    MS-9B05 Motherboard Jumpers JATX1 JCMOS1 JME_DIS1 Jumper Name Default Setting Description JCMOS1 1-2: Normal 2-3: Clear CMOS JATX1 1-2: ATX 2-3: AT JME_DIS1 1-2: Normal 2-3: ME Disable...

  • Page 17: Getting Started 2-1

    Getting Started This chapter provides you with the information on hardware setup procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work properly.

  • Page 18: System Internal View

    Getting Started System Internal View...

  • Page 19: Memory

    MS-9B05 Memory 1. Locate the SO-DIMM slot. 2. Align the notch on the DIMM with the key on the slot and insert the DIMM into the slot at a 45-degree angle. 3. Push the DIMM gently downwards until the slot levers click and lock the DIMM in place.

  • Page 20: M.2 Slot

    Getting Started M.2 Slot 1. Locate the M.2 slot. Remove the M.2 card screw preinstalled on the motherboard. 2. Insert the card into the slot at a 45-degree angle. 3. Push the card gently downwards and fasten it with a screw.

  • Page 21: Mini-Pcie Slot

    MS-9B05 Mini-PCIe Slot 1. Locate Mini-PCIe slot. Remove the Mini-PCIe card screw preinstalled on the motherboard. 2. Insert the card into the slot at a 45-degree angle. 3. Push the card gently downwards and fasten it with a screw.

  • Page 22: 2.5" Hdd/Ssd

    Getting Started 2.5” HDD/SSD 1. Unscrew the HDD bracket and remove it from the system; then, paste the thermal pad. 2. Fix the HDD and bracket with 2 screws.
  • Page 23 MS-9B05 3. Align the SATA data & power connectors and connect the HDD to the system. 4. Fasten the HDD module to the system with 2 screws.

  • Page 24: Wall Mount (Optional)

    Getting Started Wall Mount (Optional) 1. Flip over the system and locate the screw holes for wall mount brackets. 2. Assemble the wall mount brackets by inserting the rubber pads into the bracket holes and then inserting the screws. 3. Place the wall mount brackets along the sides of the system with screw holes aligned.

  • Page 25: Din Rail Mount 1 (Optional)

    MS-9B05 DIN Rail Mount 1 (Optional) 1. Install the wall mount brackets. 2. Put the DIN rails on the wall mount brackets with screw holes aligned. 3. Insert screws through the wall mount brackets into the DIN rails and tighten until each DIN rail is secure.

  • Page 26: Din Rail Mount 2 (Optional)

    Getting Started DIN Rail Mount 2 (Optional) 1. Check the VESA mount plate for the DIN rail screw holes. 2. Put the DIN rails on the VESA mount plate with screw holes aligned. 3. Insert screws through VESA mount plate into the DIN rails and tighten until each DIN rail is secure.

  • Page 27: Vesa Mount

    MS-9B05 VESA Mount 1. Locate the VESA mount screw holes on the intended device. 2. Fasten the VESA mount plate to the device with the supplied screws. 3. Mount the system onto the VESA mount plate. 4. Tighten the thumbscrew at the bottom of the VESA mount plate to secure the system.

  • Page 28: Bios Setup 3-1

    BIOS Setup This chapter provides information on the BIOS Setup program and allows users to configure the system for optimal use. Users may need to run the Setup program when: ■ An error message appears on the screen at system startup and requests users to run SETUP.

  • Page 29: Entering Setup

    BIOS Setup Entering Setup Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press <DEL> or <F2> key to enter Setup. Press <DEL> or <F2> to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button.
  • Page 30 MS-9B05 Control Keys ← → Select Screen ↑ ↓ Select Item Enter Select Change Option General Help Previous Values Optimized Defaults Save & Reset Exit Getting Help After entering the Setup menu, the first menu you will see is the Main Menu. Main Menu The main menu lists the setup functions you can make changes to.

  • Page 31: The Menu Bar

    BIOS Setup The Menu Bar ▶ Main Use this menu for basic system configurations, such as time, date, etc. ▶ Advanced Use this menu to set up the items of special enhanced features. ▶ Boot Use this menu to specify the priority of boot devices. ▶...

  • Page 32: Main

    MS-9B05 Main ▶ System Date This setting allows you to set the system date. The date format is <Day>, <Month> <Date> <Year>. ▶ System Time This setting allows you to set the system time. The time format is <Hour> <Minute> <Second>. ▶...

  • Page 33: Advanced

    BIOS Setup Advanced ▶ Full Screen Logo Display This BIOS feature determines if the BIOS should hide the normal POST messages with the motherboard or system manufacturer’s full-screen logo. When it is enabled, the BIOS will display the full-screen logo during the boot-up sequence, hiding normal POST messages.
  • Page 34 MS-9B05 ▶ CPU Configuration ▶ Intel Virtualization Technology Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “Virtual” systems. ▶ Active Processor Cores This setting specifies the number of active processor cores.
  • Page 35 BIOS Setup ▶ Super IO Configuration ▶ Serial Port 1/ 2/ 3/ 4 This setting enables/disables the specified serial port. ▶ Change Settings This setting is used to change the address & IRQ settings of the specified serial port. ▶ Mode Select Select an operation mode for the specified serial port.
  • Page 36 MS-9B05 ▶ H/W Monitor These items display the current status of all monitored hardware devices/ components such as voltages, temperatures and all fans’ speeds. ▶ Thermal Shutdown This setting enables/disables the thermal shutdown function for system thermal protection. ▶ Smart Fan Configuration ▶...
  • Page 37 BIOS Setup ▶ Type This setting specifies the fan type. ▶ Network Stack Configuration This menu provides Network Stack settings for users to enable network boot (PXE) from BIOS. ▶ Network Stack When this setting is set to [Enabled], the system will boot via the network instead of a disk drive.
  • Page 38 MS-9B05 ▶ Audio Controller This setting enables/disables the onboard audio controller. ▶ Launch OnBoard LAN OpROM These settings enable/disable the initialization of the onboard/onchip LAN Boot ROM during bootup. Selecting [Disabled] will speed up the boot process. ▶ GPIO Group Configuration ▶...

  • Page 39: Boot

    BIOS Setup Boot ▶ CSM Support This setting enables/disables the support for Compatibility Support Module, a part of the Intel Platform Innovation Framework for EFI providing the capability to support legacy BIOS interfaces. ▶ Boot Option Priorities This setting allows users to set the sequence of boot devices where BIOS attempts to load the disk operating system.

  • Page 40: Security

    MS-9B05 Security ▶ Administrator Password Administrator Password controls access to the BIOS Setup utility. ▶ User Password User Password controls access to the system at boot and to the BIOS Setup utility. ▶ Intel Trusted Execution Technology Intel Trusted Execution Technology provides highly scalable platform security in physical and virtual infrastructures.
  • Page 41 BIOS Setup ▶ PCH-FW Configuration ▶ ME Firmware Version, ME Firmware Mode, ME Firmware SKU, ME Firm- ware Status 1, ME Firmware Status 2 These settings show the firmware information of the Intel ME (Management Engine). ▶ ME State This setting enables/disables the ME status. ▶...
  • Page 42 MS-9B05 ▶ Firmware Update Configuration ▶ ME FW Image Re-Flash This setting enables/disables the ME FW image reflash. ▶ PTT Configuration Intel Platform Trust Technology (PTT) is a platform functionality for credential storage and key management used by Microsoft Windows. 3-15...
  • Page 43 BIOS Setup ▶ ME Debug Configuration ▶ Anti-Rollback SVN Configuration 3-16...
  • Page 44 MS-9B05 ▶ AMT Configuration Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band. ▶ Trusted Computing ▶ Security Device Support This setting enables/disables BIOS support for security device. When set to [Disable], the OS will not show security device. TCG EFI protocol and INT1A interface will not be available.
  • Page 45 BIOS Setup ▶ Pending Operation When Security Device Support is set to [Enable], Pending Operation will appear. Set this item to [TPM Clear] to clear all data secured by TPM or [None] to discard the selection. It is advised that users should routinely back up their TPM secured data.
  • Page 46 MS-9B05 ▶ Console Redirection Settings ▶ Terminal Type To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s). This setting specifies the type of terminal device for console redirection.
  • Page 47 BIOS Setup Legacy Console Redirection ▶ Legacy Console Redirection Settings ▶ Redirection COM Port This setting specifies the COM port for redirection. ▶ Resolution This setting specifies the redirection resolution of legacy OS. ▶ Redirect After POST This setting determines whether or not to keep terminals’ console redirection running after the POST has booted.
  • Page 48 MS-9B05 ▶ Console Redirection Settings ▶ Out-of-Band Mgmt Port This setting specifies the Out-of-Band Management Port. ▶ Terminal Type To operate the system’s console redirection, you need a terminal supporting ANSI terminal protocol and a RS-232 null modem cable connected between the host system and terminal(s).

  • Page 49: Chipset

    BIOS Setup Chipset ▶ DVMT Total Gfx Mem This setting specifies the memory size for DVMT. ▶ Primary IGFX Boot Display Use the field to select the primary IGFX boot display of the system. 3-22...

  • Page 50: Power

    MS-9B05 Power ▶ Restore AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: [Power Off] Leaves the computer in the power off state. [Power On] Leaves the computer in the power on state. [Last State] Restores the system to the previous status before power failure or interrupt occurred.
  • Page 51 BIOS Setup ** Advanced Resume Events Control ** ▶ OnChip GbE/USB This field specifies whether the system will be awakened from power saving modes when activity or input signal of onchip LAN or USB devices is detected. ▶ PCIE PME This field specifies whether the system will be awakened from power saving modes when activity or input signal of onboard PCIE PME is detected.

  • Page 52: Save & Exit

    MS-9B05 Save & Exit ▶ Save Changes and Reset Save changes to CMOS and reset the system. ▶ Discard Changes and Exit Abandon all changes and exit the Setup Utility. ▶ Discard Changes Abandon all changes. ▶ Load Optimized Defaults Use this menu to load the default values set by the motherboard manufacturer specifically for optimal performance of the motherboard.
  • Page 54 Appendix GPIO WDT Programming This appendix provides WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output) programming guide. 2-A-1...

  • Page 55: Abstract

    GPIO WDT Programming Abstract Abstract  In  this  document,  code  examples  based  on  C  programming  language  provided  for  customer  interest.  Inportb,  Outportb,  Inportl  and  Outportl  are  basic  functions  used  for  access IO ports and defined as following.    Inportb: Read a single 8‐bit I/O port.  Outportb: Write a single byte to an 8‐bit port.    Inportl: Reads a single 32‐bit I/O port.  Outportl: Write a single long to a 32‐bit port.       ...

  • Page 56: General Purposed Io

    MS-9B05 General Purposed IO 1. General Purposed IO – GPIO/DIO  The GPIO port configuration addresses listed in the following table:  Name  IO Port  IO address  Name  IO Port  IO address  N_GPI0  0xA05  Bit 3  N_GPO0  0xA05  Bit 0  N_GPI1  0xA05  Bit 4  N_GPO1  0xA05  Bit 7  N_GPI2  0xA05  Bit 5  N_GPO2  0xA05  Bit 2  N_GPI3  0xA05  Bit 6  N_GPO3  0xA05  Bit 1    Set output value of GPO  1. Read the value from GPO port.  2.

  • Page 57: Watchdog Timer

    GPIO WDT Programming Watchdog Timer 2. Watchdog Timer – WDT  The base address (WDT_BASE) of WDT configuration registers is 0xA10.    Set WDT Time Unit  val = Inportb (WDT_BASE + 0x05);      // Read current WDT setting  val = val | 0x08;              // minute mode. val = val & 0xF7 if second mode  Outportb (WDT_BASE + 0x05, val);    // Write back WDT setting    Set WDT Time  Outportb (WDT_BASE + 0x06, Time);  // Write WDT time, value 1 to 255.    Enable WDT  val = Inportb (WDT_BASE + 0x0A);      // Read current WDT_PME setting  val = val | 0x01;           ...
