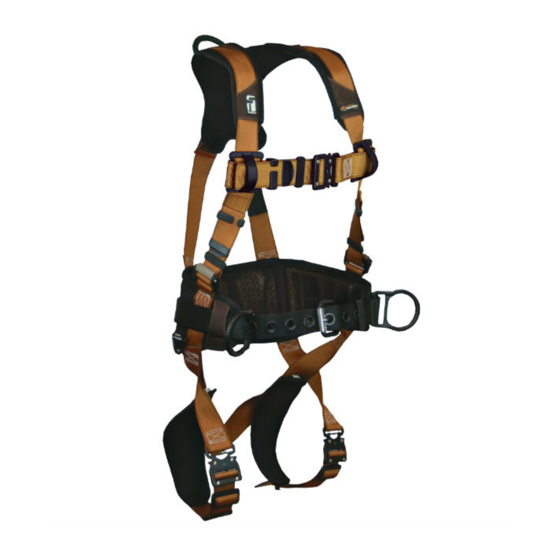

Full Body Harness
User Instruction Manual
This manual is intended to meet the Manufacturer's Instructions as required by the American National Standards
Institute (ANSI) Z359 and Canadian Standards Association (CSA) Z259 and should be used as part of an employee
training program as required by the Occupational Safety and Health Administration (OSHA).
MFBH04 Rev A
FallTech 1306 S. Alameda Street Compton, CA 90221, USA Tel: 800-719-4619 Fax: 323-752-5613
121219
http://www .bestmaterials.com
|
1-800-474-757 0
sales@bestmaterials.com | http://www.bestmaterials .com
http://www .bestmaterials.com
|
1-800-474-757 0
|
1-800-474-757 0
sales@bestmaterials.com | http://www.bestmaterials .com
|
1-800-474-757 0
sales@bestmaterials.com |
http://www.bestmaterials.com
|
1-800-474-7570
sales@bestmaterials.com | http://www.bestmater ia ls.com
|
1-800-474-7570
