Simagic M10 Base User Manual page 18

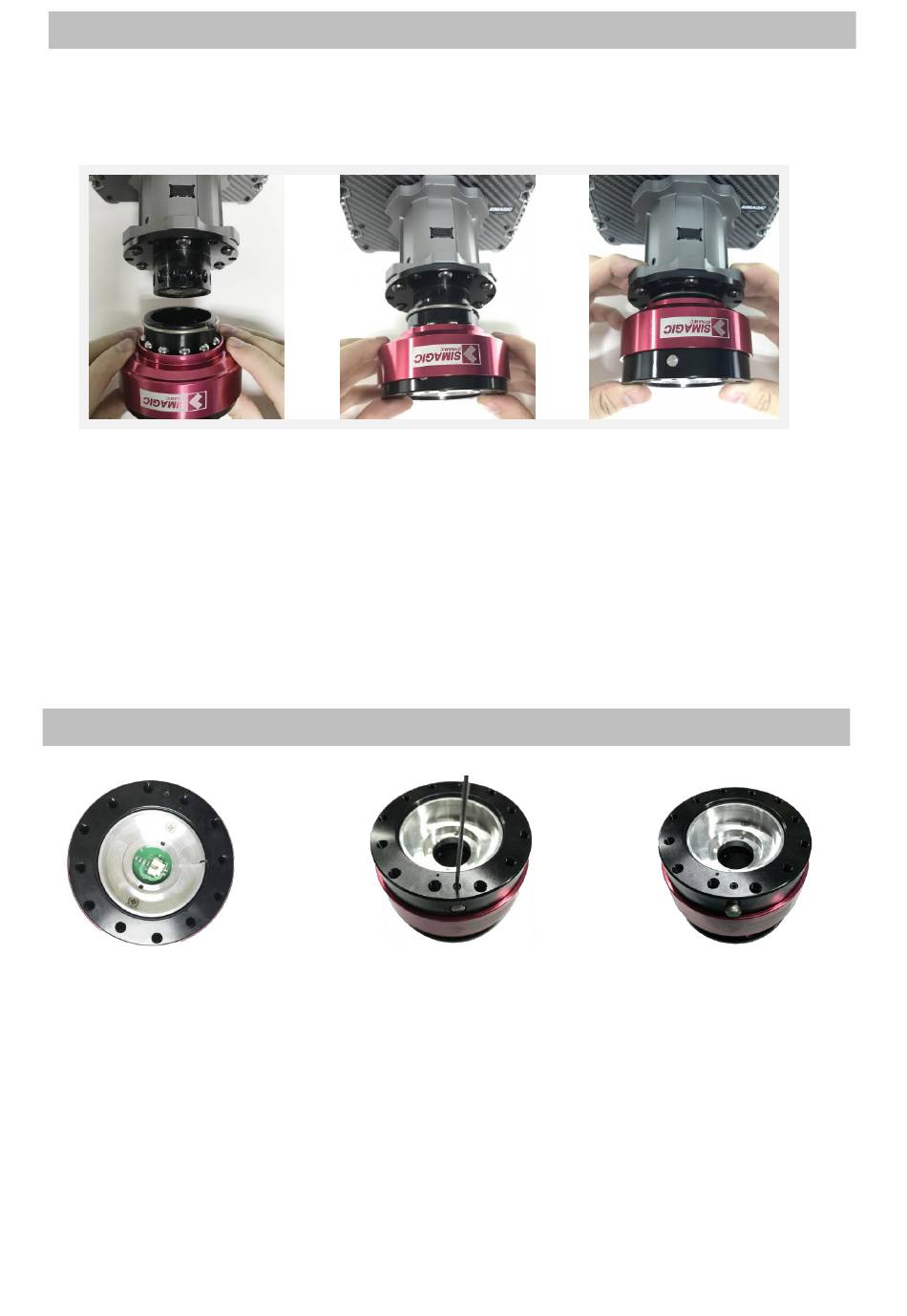

Operation Explanation
Simagic custom quick release adopts the design of high precision upper six balls and lower four
balls, and the access base needs to align the steel ball hole position. It can be removed
without any tools.
The quick release logo shell is the first lock. Hold the red part of the shell when removing it.
Pull out the quick release to remove it.
To fit it back in, just push the QR back on the shaft and rotate the shaft till it clicks and locks in,
ensuring that the ball bearings are fully seated in the shaft ring of the base.
Safety lock
This is the factory standard setting.
Only use simple and fast single lock
Use a wrench to loosen the screw
Manual lock can be opened
After opening the quick release second lock，
To remove the quick release, press the
button to remove it
