Aiphone RELAY RY-18L Instructions

Form C Relay for 12-18V DC Intercom Systems with Door Release
The RY-18L Door Release Relay Module is an interface between the door strike contacts on the Aiphone unit and the
actual release mechanism. The contact ratings on Aiphone units vary, and are all Normally Open. If your strike or
maglock is a higher voltage or draws more current than specified for the unit, the RY-18L is required. It provides either a
Normally Open contact for an electric strike, or a Normally Closed contact for a magnetic lock. The contact rating
supports a majority of door release hardware available on the market. This relay is recommended with all MK, JF, and JK
systems when using the single door release feature, and for the LEM-1DL or LEF systems when connecting a maglock.
INSTALLATION:
1. Install in a suitable location, either near the power source for the door release mechanism, or behind the intercom.
2. Secure wire connections with proper termination, such as wire nuts or crimp connectors.
3. Trim the wires to the desired length.
4. Cut the unused contact wire so the bare strands are not exposed.

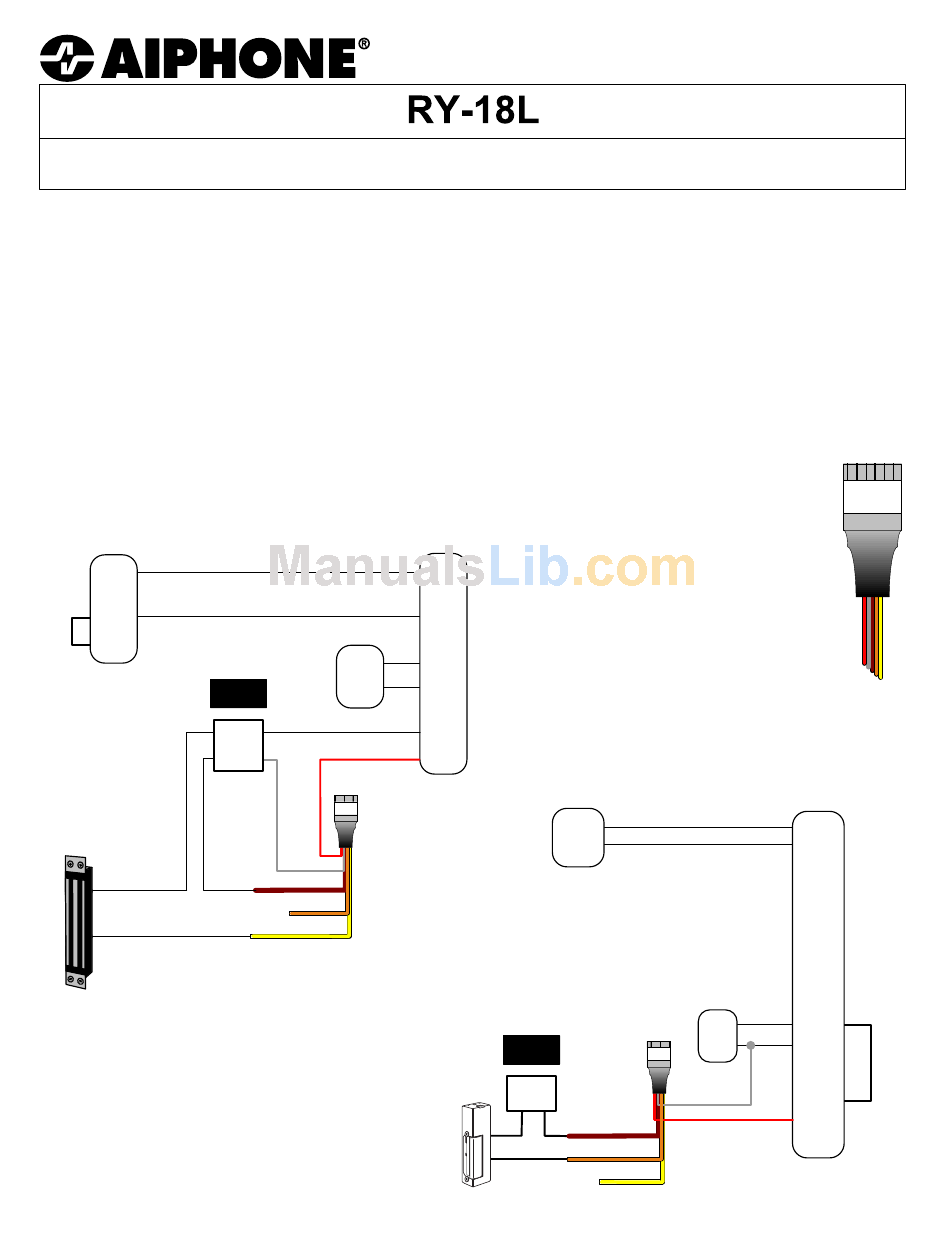

WIRING DIAGRAMS:
LE-Series Sub
1
E
-
Leave jumper
between E and -
attached
Magnetic Lock
Use Brown & Yellow wires
when connecting to Maglock.
MAGNETIC LOCK WIRING METHOD:
(Normally Closed contact)
Lock Power: Power source for Magnetic Lock
When using 12-18V DC power, use the RY-18L.
When using 24V DC power, use the RY-24L.
Page 1
- INSTRUCTIONS -
PT-1210N
~
~
LOCK
POWER
+
-
RY-18L
Red
Gry
COM
Brn
Org
N/C
Yel
0210
LEM-1DL
1
E
+
-
EL
MK-SERIES BLACK & WHITE VIDEO SYSTEM
EL
MK-Series
Door Station
A1
A2
LOCK
POWER
+ -
Use Normally Open
contact for electric strike
RY-18L COLOR CODE:
Input of Relay:
Red:L/RED, Postive trigger
Gray:(-) NEGATIVE
Output of Relay:
Brown:COMMON
Orange: N.O. Contact
Yellow:N.C. Contact
(See contact rating specs on
back page)
MK-2MCD
PS-1820UL
+
-
.
Gry
Red
Brn
COM
Org
N/O
Yel
N/C
RED: L/RED
BLK: (-) Neg.
BRN: Common
ORG: N.O.
YEL: N.C.
MK-1GD
A1
A2
B1
B2
S
S
DC 18V
+
Add
-
jumper
wire
from L
DR REL
to +
L
L
