NE-NVP-RA
Vandal Proof Sub for Areas of Rescue Assistance
DESCRIPTION:
The NE-NVP-RA sub station is vandal proof, and
can be used with NEM or NEM-RS master stations.
Designed for ADA applications providing areas of
Rescue Assistance, this unit features Emergency
and Braille signage, a large red call button, and
"Call Placed" and "Help Coming" LEDs.
The NE-NVP-RA is designed to be flush mounted,
or surface mounted with the SBX-NVP surface
mount box. Tamper proof screws are provided,
along with a tool for installation.

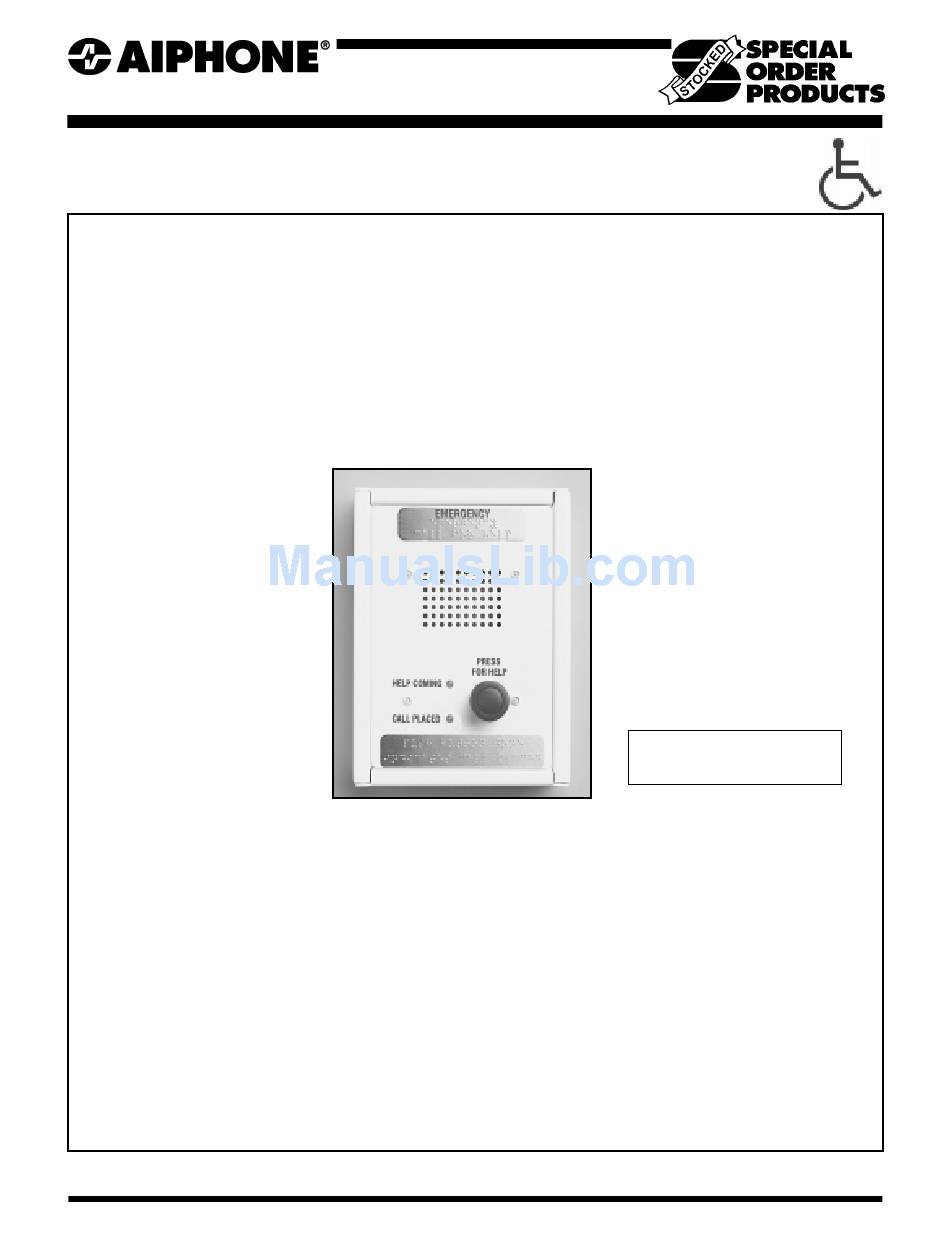

NE-NVP-RA
(Shown
mounted in
SBX-NVP)
SPECIFICATIONS:
Power Source:
Supplied by master station
Speaker:
20 ohms, 3" diameter, water proof and puncture resistant, 2.5 oz. ceramic magnet
Faceplate:
11 gauge carbon steel with powder-coated white baked epoxy finish
Calling:
Pressing call button at sub latches call at NEM master until answered
Communication:
Hands free at sub. Master is push-to-talk or VOX handset.
Mounting:
Flush mount in 3-gang box (Raco 952) with 3-gang device cover (Raco 822)
Surface mount with SBX-NVP
Mounting Hardware:
Tamper proof screws with tool for installation
Terminations:
Color-coded prewired pigtails
Wiring:
With remote reset switch: 4-conductor homerun from each sub,
or 3 common wires plus 1 individual wire per sub station, looped.
(Remote reset switch is wired in series with one common wire)
Shielded wire is recommended.
Use Aiphone #822206 for homerun wiring (or up to 3 subs), #822210 for up to
7 stations on each run, or #822215 for up to 12 stations on each run.
Wiring Distance:
420' with 22AWG; 1000' with 18AWG.
Dimensions:
NE-NVP-RA alone: 7-1/2" x 5-1/2" x 2". With SBX-NVP: 8-5/8" x 6-5/8" x 2-1/4"
Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005
(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com
FEATURES:
• Vandal proof and weather resistant
• Braille and Emergency signage
• Large red mushroom call button
• Moisture and puncture resistant speaker
• "Help Coming" & "Call Placed" LEDs
• Easy connection to master
• Hands free communication at sub
• Optional overhead lamps can be installed
at each location to indicate call status
- 50 -
ADA
NOTE: Install in an area not
directly exposed to moisture.
