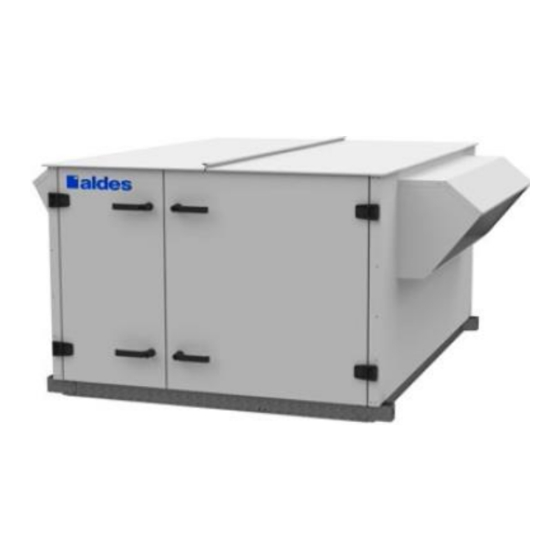

- Page 1 INSTALLATION AND OPERATION MANUAL InspirAIR® Commercial Series...
- Page 2 LOCAL construction and safety codes. ALL drawings, photos and diagrams contained in this document are for REFERENCE purposes only. Units may differ. ALDES reserves the RIGHT to MODIFY unit and its components without prior warning. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 3 Table of Contents Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 4 Warranties and Exclusions Warranty ALDES products are guaranteed to be defect-free for a period of (2) years from the date of purchase. Labor not included. EC motors are guaranteed for (1) year Warranty does not apply if: Modifications were made by or for the client.
- Page 5 Transport Method Your unit is equipped with anchors for handling purposes only. Strictly follow Lifting Standards before handling your unit. Always use ALL anchors points SIMULTANEOUSLY. Anchor Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 6 The capacity of the forklift must exceed the weight of the unit. Raise the device as shown in the diagram below. This is the only method authorized by ALDES to move the unit using a forklift. Transportation of the unit must be executed by a qualified forklift operator.
- Page 7 Installation Roof curb Installation (optional) Install the roof curb as indicated in the accompanying document provided. Ventilation Unit Waterproof Seal (not included) Galvanized Steel Flashing Roof Covering Rigid Insulation (optional) Building Structure Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 8 Blower Belt tension setting In order to avoid unusual wear of moving pieces, adjust belt tension at minimum value to avoid slipping. Belt tension is adjusted by the adjusting screws as illustrated below. Adjustment bolts Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 9 Open the exterior panel using the handles (Picture 1). You must unlock the handles with the appropriate key in order to open the panel (Picture 1). Turn the handles downward as indicated in the Picture 1. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 10 Connect the unit to the power grid using the disconnect switch. Such connection shall be made by a certified electrician in accordance with the applicable electrical code. * Unit’s specific control panel may differ. For reference only. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 11 Make sure the Ground Wire is securely fasten to the appropriate socket. Such connection shall be made by a certified electrician in accordance with the applicable electrical code. * Unit’s specific control panel may differ. For reference only. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 12 Use the Electrical Wiring Diagram (supplied separatly) as a reference to , close the Start/stop and Occupancy control Dry contact (optional). 3- Close the main disconect switch, the unit will start from this point on, the unit is no longer electrically safe. WARNING: Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 13 Verify that the motors and blowers are rotating in the proper direction. AC Motors EC Motors DANGER This device has moving parts. All repairs should be made by a qualified technician in order to avoid serious injury. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 14 WARNING Electrical currents remain at the capacitors for 5 minutes after circuits disconnect have been opened. The following electrical components may not be electrically safe immediately: Variable Frequency Drive for the blowers motors. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 15 Unit is controlled using a BacNet compatible controller. The controller can communicate with either a: MS/TP connection or IP connection Remote Displays: Offered with command buttons or with touch screen (Only available with the BacNet controller). Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 16 7 min 32 min T° < -25°C T° < -13°F 7 min 20 min = -5°C For Aluminium and Polypropylene cores (HRV). = -10°C For Enthalpy cores (ERV) = -15°C For Enthalpy wheel cores (ERV) Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 17 Activated by a servomotor upon admission of fresh or exauhst air. Non-Insulated Backdraft Gravity dampers (for evacuation purposes only). Post-Heating Coil: Electric or liquid (0-10 VDC signal provided by other components to maintain air input temperature). Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 18 H, J and L H = 1’’ for each 1’’ of maximum negative static pressure + 1’’. J = Half of H. L = H + J + Pipe diameter + Insulation Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 19 AC motorisation: A single speed motor is controlled with a VFD. The unit speed is controlled using a 0-10 VDC signal provided by others. EC motorisation : The unit speed is controlled using a 0-10 VDC signal provided by others. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 20 Check the condition of the belt on the thermal wheel. Every 12 months Polypropylene or aluminum cores: remove and clean with water and mild soap. Enthalpic cores: clean with compressed air or vacuum cleaner. Thoroughly clean the inside of the unit. Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 21 This information is necessary in order to address your problem as quickly as possible. The information is available on the specification card located on your device (see photo below). CAN: 1-800-262-0916 USA: 1-800-255-7749 Model number Serial number Project number Tel. CAN.: 1-800-262-0916 USA.:1-800-255-7749 www.aldes.com...
- Page 22 Air balancing instruction • With EC motor option For balancing put unit on high speed. You need to apply 10VDC to the EXTERNAL SUPPLY BLOWER SPEED 0-10VDC CONTROL (27) and to EXTERNAL EXHAUST BLOWER SPEED 0-10VDC CONTROL (29). If the external control was not done you can use the 10VDC REFERENCE FROM SUPPLY ECM MOTOR (27A) and 10VDC REFERENCE FROM EXHAUST ECM MOTOR (29A).
- Page 23 Air balancing instructions • With EC motor option and Distech controler For balancing put unit on high speed.
