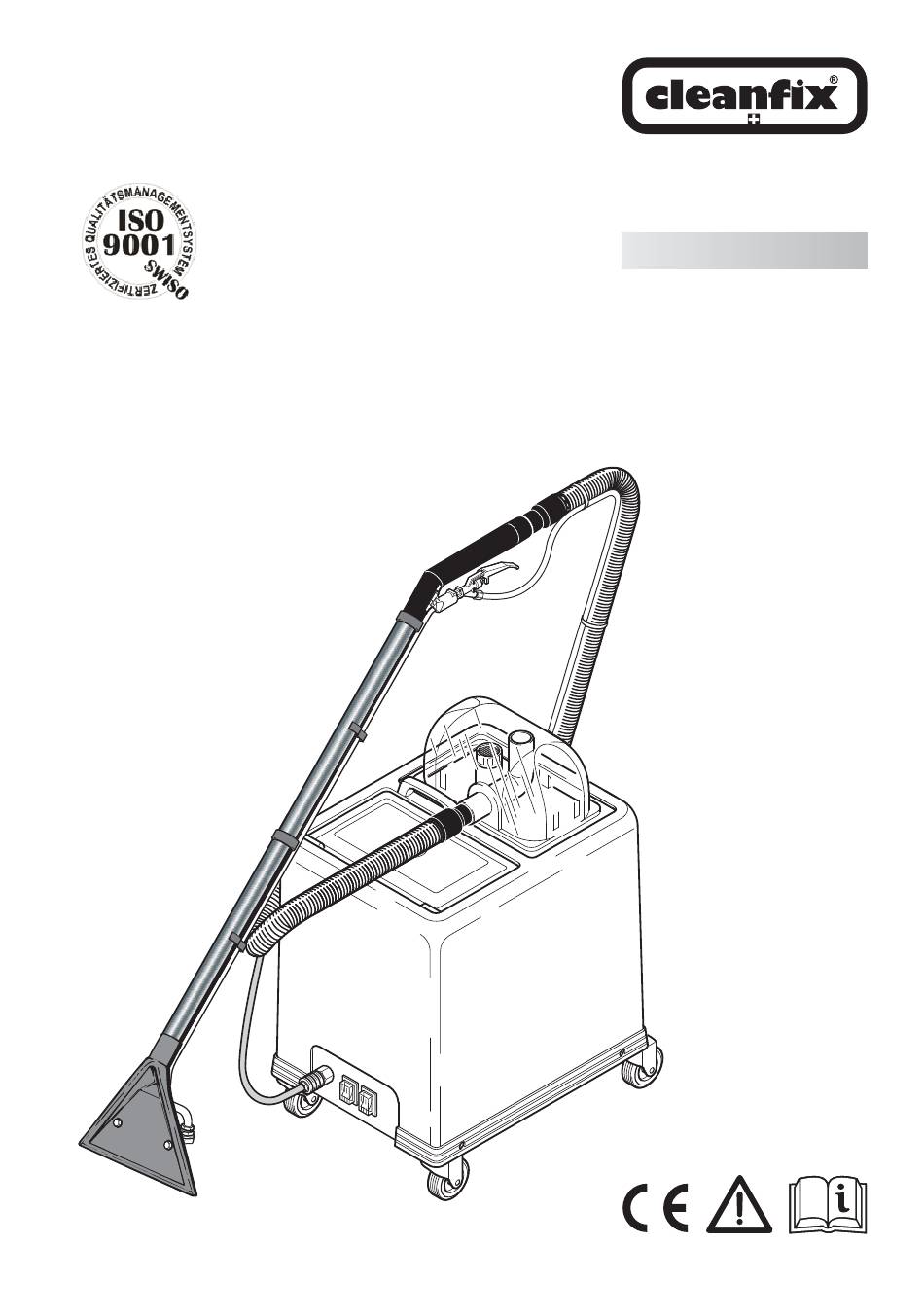

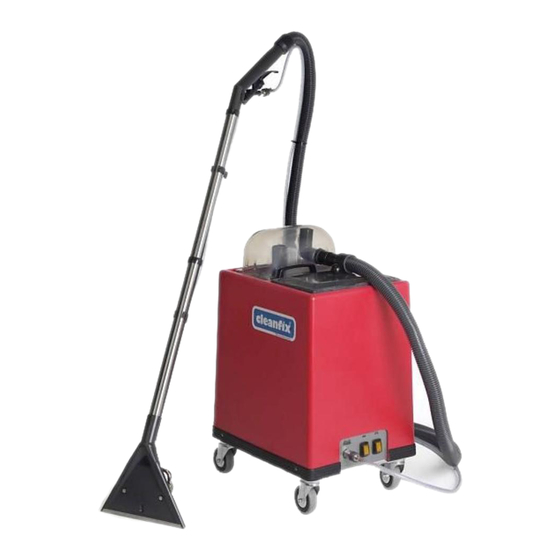

- Page 1 TW 350 S TW 600 Swiss Made Quality. English ООО "Альянс Клининговых Технологий" Беларусь, г.Минск, ул.Космонавтов 4; 220025 Телефон: +375 29 9442827 E-mail: info@technologyalliance.by BA 000.002 09 / 2011...
-
Page 2: Safety Instructions
TW 350 S, TW 600 are to be protected by a circuit Read these instructions ● breaker type H with a rated current of 10A or a 10A carefully before operating fuse. the machine! Take care that the mains supply cable is not damaged ●... -
Page 3: Technical Specification
Description of pictures TW 350 S / TW 600 Transparent dome, cover for waste tank Plug-in sleeve for connecting suction hose Tank, fres / waste water Bumper bar 4 casiers Switch for suction motor Switch for pressure pump Connection for pressure hose... -
Page 4: Maintenance & Servicing
Spray extraction operations With very heavy soiling 1.1 Preparing the textile floor covering Shampoo extremely heavily soiled carpets before using a singlebrush machine. Vor dem Sprühextrahieren muss der Teppich mit einem Staubsauger gründlich abgesaugt werden. Foaming Preparatory steps before using the machine: When using the spray extraction machine, excess Only usethe machine if thevoltage stated on thetype ☞... -
Page 5: Environmental Protection
Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materi- als that can be recy-cled; these should be sent for recycling.. Batteries, oil, and similar substances must not enter the environment. - Page 6 TW 600 Electrical cord As at: 06/19/14 Time:17:35...
-
Page 7: Electrical Cord
TW 600 Electrical cord As at: 06/19/14 Time:17:35 Pos. Description Reference 01 Electrical connection EURO P...283 01 Electrical connection SEV P...284 02 Cable clamp P...278 03 Fixation for cable P...279 04 Counter nut PG 9 P...279H 05 Cable protection P...280 06 Switch with protection P...240 09 Switch cable tree... - Page 8 TW 600 Housing As at: 06/19/14 Time:17:35...
- Page 9 TW 600 Housing As at: 06/19/14 Time:17:35 Pos. Description Reference 01 Polyester case complete 060.098 02 Finishing profile P...055A 03 screw DIN 7971 4.8x19 P...483 O 04 Tightness cord dm 5 mm P...051 05 Catch for cable complete, including:Items 6-11 P...087 06 Catch for cable P...087A...
- Page 10 TW 600 Membran pump assembling As at: 06/19/14 Time:17:35...
- Page 11 TW 600 Membran pump assembling As at: 06/19/14 Time:17:35 Pos. Description Reference 01 Membran pump 230 V 060.230 02 Rubber buffer 060.241 03 Washer M5 P...497G 04 Stopp-nut M5 P...492G 05 Angled hose nipple P...541M 06 Clamp 14,5 mm P...550A 08 Pression hose NW 8x400 mm 060.232 09 Fitting G1/4''...
- Page 12 TW 600 Membrane tank As at: 06/19/14 Time:17:35...
- Page 13 TW 600 Membrane tank As at: 06/19/14 Time:17:35 Pos. Description Reference 01 Upper frame 060.086 02 Membrane tank 060.089 03 Frame 060.087 04 Seal 060.083 05 Stopp-nut M4 P...493D 06 Stopp-nut M5 P...493G 07 Rubber washer M5 060.085 08 Washer M5 P...497Q 09 Hexagon screw M 5x20 mm P...470P...
- Page 14 TW 600 Spray and suction hose As at: 06/19/14 Time:17:35...
- Page 15 TW 600 Spray and suction hose As at: 06/19/14 Time:17:35 Pos. Description Reference 20 Spraying valve with fitting includingItems 21-30 P...681 21 Valve body P...681A 22 Tapped nipple 1/4ŽŽ P...501B 23 Lever P...681C 24 Cyl. Pin dm 1,5x14,5 mm P...681K 25 O-ring dm 5,23 mm P...681F 26 Valve pin...
- Page 16 TW 600 Vaccum motor As at: 06/19/14 Time:17:36...
- Page 17 TW 600 Vaccum motor As at: 06/19/14 Time:17:36 Pos. Description Reference 01 Chassis complete, including: Items 2-5 P...180 02 Bottom plate P...181 03 Sticker with symbols P...181D 04 Complete isolation plate P...182A 05 Clamp B 4.8 P...494B 06 Hexagon screw M 5x70 mm P...470P 07 Washer M5 P...497V...
- Page 18 TW 600 Wiring plan As at: 06/19/14 Time:17:36...
-
Page 19: Wiring Plan
TW 600 Wiring plan As at: 06/19/14 Time:17:36 Pos. Description Reference C1 Capacitor P...385 D C2 Capacitor P...387 C PM Membran pump 060.230 S1 Switch for pump P...240 S2 Tumbler switch for vacuum motor P...240 SM Suction motor P...870B...
