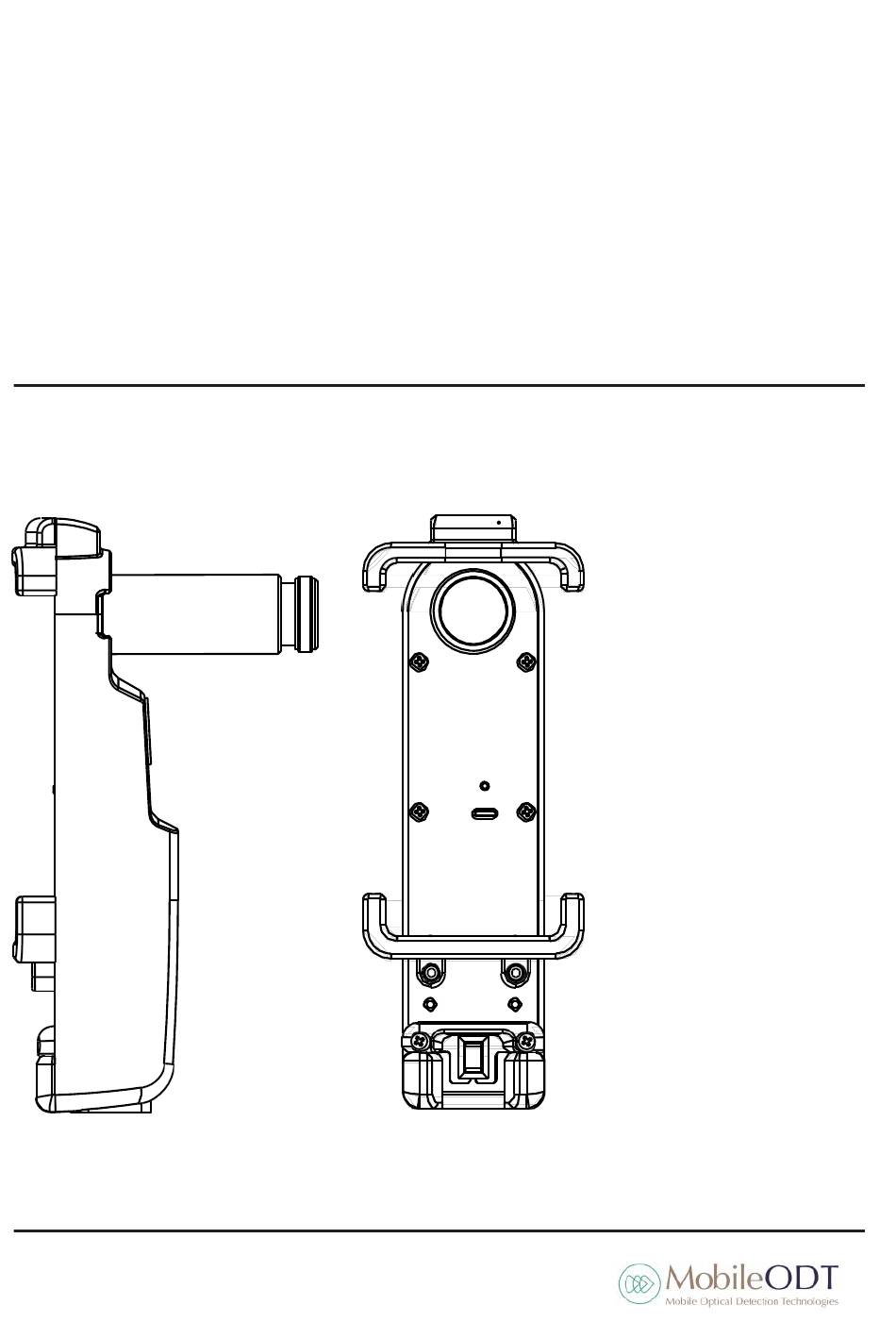

- Page 1 Enhanced Visual Assessment System EVA System – Hardware Guide In str u ct io n s for Use...
-
Page 2: Table Of Contents
EVA System: User Guide T A B L E OF CONTENTS Welcome to the EVA (Enhanced Visual Assessment) System ..... 3 Get to know the EVA System ..............4 Assemble the hardware ..................6 How to capture clinically-useful image? ........... 10 Stability ...................... -
Page 3: Welcome To The Eva (Enhanced Visual Assessment) System
In the following pages you will learn how to use the EVA System and its different components. The current version of the EVA System is a result of rigorous research, testing and ongoing learning from use in the field. -

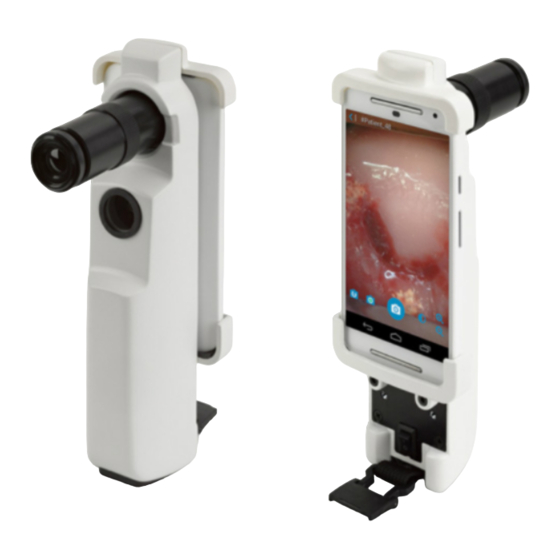

Page 4: Get To Know The Eva System
EVA System: User Guide Get to know the EVA System Strap clip Back View... - Page 5 EVA System: User Guide Lens Front View...
-
Page 6: Assemble The Hardware
EVA System: User Guide Assemble the hardware 1. Take out items 2. Top bracket... - Page 7 EVA System: User Guide 3. Pull bracket outward The bracket is magnetic. Do not pull up or down. Apply gentle force. 4. Place phone into the device...
- Page 8 EVA System: User Guide 5. Connect bracket to device 6. Attach the strap to the bottom of the device The latch on the strap fits into the latch on the device.
- Page 9 EVA System: User Guide 7. The device is ready for use 8. After the examination, be sure to store the EVA System in the storage box. To close the box push downward on the corner of the case and lock the two latches.
-
Page 10: How To Capture Clinically-Useful Image
System. MobileODT can provide a designated stand on which the device can be mounted, as well as a foot-pedal that has been tested to work with the EVA System. For further information, please visit www.mobileodt.com or contact... -
Page 11: Positioning
EVA System: User Guide Positioning 1. Distance: The device should be positioned at a distance of 22.5-42.5 cm / 9- 16.5 inches from the patient’s vaginal canal. Important: the device should not come into physical contact with the patient. 2. Angle: The entire face of the cervix should be captured in the image, without the speculum. -
Page 12: Light
Light The cervix should be fully illuminated and without glare. 1. The EVA System reduces glare with a filter, however glare from the speculum is still possible. If this is the case, reposition the EVA System and/or the speculum until there is less glare. -
Page 13: Focus
EVA System: User Guide Focus There are two ways to adjust the focus of the EVA System. The first is to adjust the distance between the device and the patient. Remember that the position of each cervix is different, so it may be necessary to readjust your position according to the patient to ensure the EVA System remains in focus. -
Page 14: Care And Maintenance
EVA System: User Guide Care and Maintenance Taking care of the EVA System is simple - no great effort is needed to keep it in a tidy and functional condition. We recommend that you consistently carry out the measures described below, in order to ensure long-term and trouble-free functioning. -
Page 15: Charging
EVA System: User Guide Charging Charging the device The EVA System's light source is powered by a rechargeable battery contained within the device. The battery possess charge capacity sufficient for approximately 10 hours of continual or intermittent use. To charge the EVA System, simply remove the... -
Page 16: Device Troubleshooting
Device Troubleshooting LED won't turn on If the LED won't turn on, make sure the EVA System is fully charged. If, after charging, the LED does not turn on, the user should contact service. Low Battery If low battery or depleted battery is suspected, the user should check that the Illumination LED is lit. -
Page 17: Lens Troubleshooting
EVA System: User Guide Brackets If the device brackets are broken and the smartphone is not sitting properly in the cradle causing artifacts in the image or a low-resolution image, the user should contact service to replace the device. Device Casing... -
Page 18: Replacement Wear Parts And Technical Service
Replacement Wear Parts and Technical Service When contacting MobileODT’s Service and Repair department for servicing the EVA System, you will need to provide the following information: Details on the defect that has occurred and corresponding serial number of the device. These can be read off from the label located on the back of your device, where the phone is to be inserted. -
Page 19: Technical Product Overview
EVA System: User Guide Technical Product Overview Before initial set up of the EVA System, check for damage on the outside of the transport packaging, the device, and any accessories. Please check all components received against the parts list of components section to verify a complete set. -
Page 20: Specifications
EVA System: User Guide Specifications Item Specification Technical Data Power Requirements Charger Input Voltage As rated by MicroUSB Charger As rated by MicroUSB Charger Frequency 5V DC Output Dimensions Colposcope (HxWxD) 20.8cm x 7.8cm x 11cm (w/lens) 20.8cm x 7.8cm x 6cm (w/o lens) Lens 93.1mm long x 30mm diameter... -
Page 21: Appropriate Use
2. The EVA System was built to be resilient, but should be used as you would use your mobile phone. It should never be stored or operated in areas... -
Page 22: Symbols And Markings
EVA System: User Guide etc. 3. All service to the EVA System must be performed by MobileODT or by an authorized repair center. 4. There are no user serviceable parts in this unit or in its accessories (other than the mobile phone). Any attempt to disassemble and/or repair this unit will result in voiding of the warranty. - Page 23 EVA System: User Guide Symbol Description Serial Number Catalog Number Refer to instruction manual/booklet Prescription use only Manufacturing date CE Compliance Symbol Waste of Electrical and Electronic Equipment (WEEE) compliance symbol Manufacturer Date of Manufacture Authorized Representative in the European Union...
