DEMO MANUAL DC112A

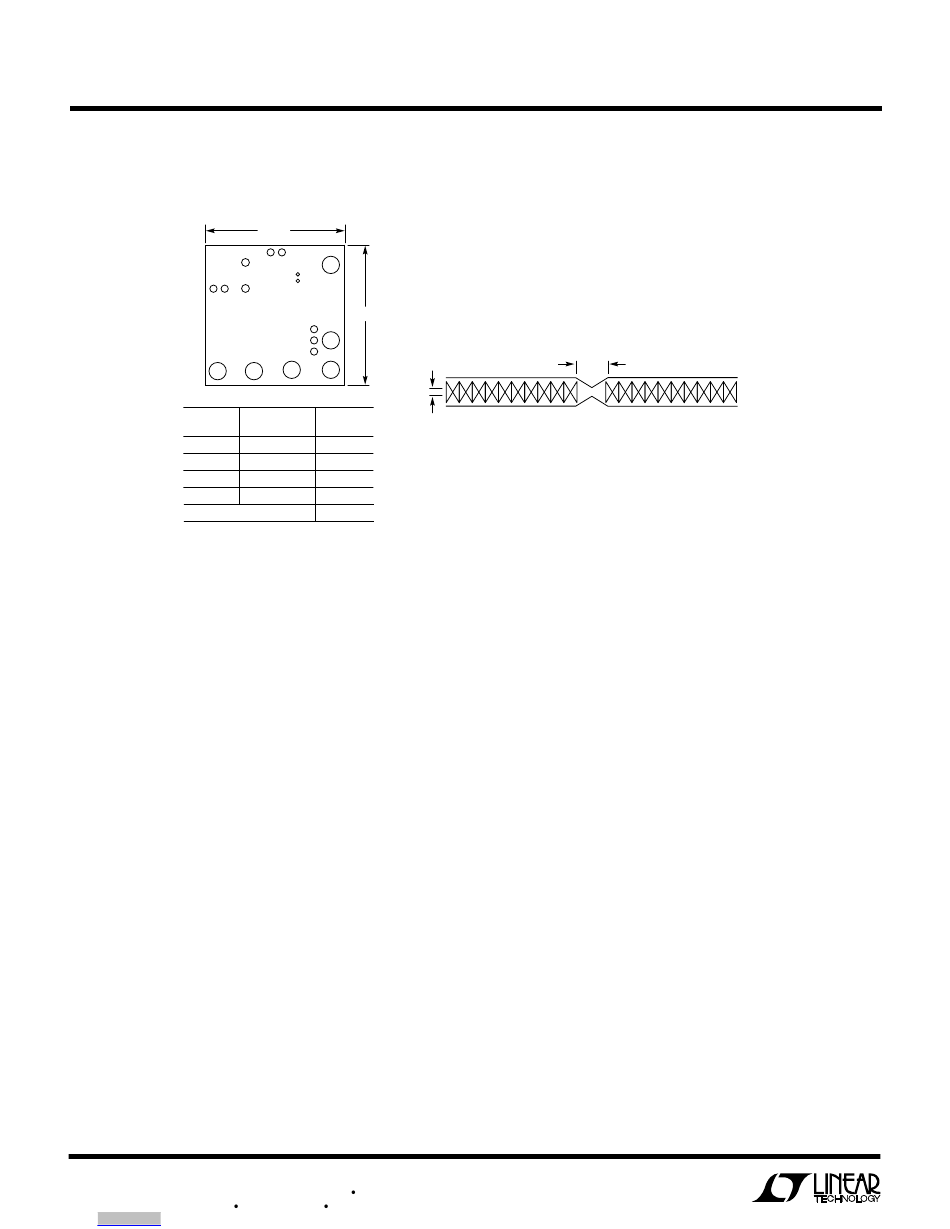

PC FAB DRAWI G
Linear Technology Corporation
8
1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900
FAX: (408) 434-0507 TELEX: 499-3977 www.linear-tech.com
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Downloaded from
U
1.25
C
B
D
A
1.25
A
C
A
A
A
A
NUMBER
SYMBOL
DIAMETER
OF HOLES
A
0.094
6
B
0.042
2
C
0.037
7
D
0.015
2
TOTAL HOLES
17
NOTES:
1. MATERIAL: 2 LAYERS, 0.062" THICK, FR-4 GLASS EPOXY 2OZ COPPER CLAD
2. ALL HOLES SHALL BE PLATED THROUGH
3. PLATE THROUGH HOLES WITH COPPER 0.0014 MIN THICKNESS. ALL HOLE
SIZES IN HOLE TABLE ARE AFTER PLATING
4. SILKSCREEN: WHITE EPOXY NONCONDUCTIVE INK
5. FINISH: SMOBC
6. SOLDER MASK: LPI, GREEN
7. SCORING:
0.020
0.017
DC112 FAB
dc112af LT/GP 0197 500 • PRINTED IN USA
© LINEAR TECHNOLOGY CORPORATION 1997
