Summary of Contents for S-Lighting S-STRIP

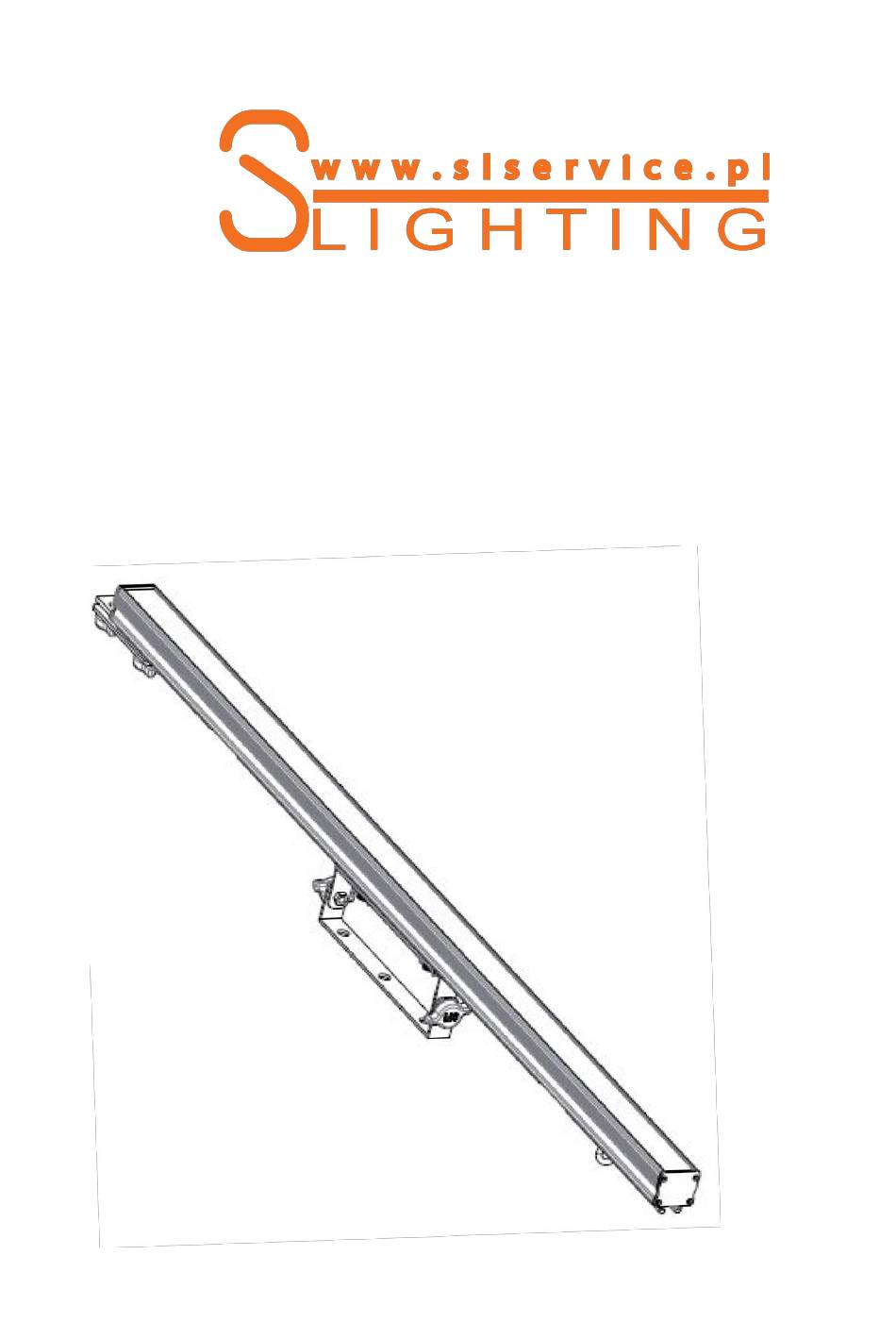

- Page 1 S-LIGHTING S-STRIP S-STRIP S-LIGHTING S-STRIP...
-
Page 2: Safety Notes
S-LIGHTING S-STRIP Safety Notes： Read all the following Safety Notes before working with this product. These notes include important information about the installation, usage, and maintenance of this product. This icon indicates critical installation, configuration, or operation information. Failure to comply with this information may render the fixture partially or completely inoperative, damage third-party equipment, or cause harm to the user There are no user-serviceable parts in this product. -
Page 3: Product Description
S-LIGHTING S-STRIP Product Description: The S-STRIP is a near-effortless pixel mapping one-meter strip that combines to make a system that sets up in minutes with minimal technical knowledge. Controlled by the led dream color strip controller using Art-Net™ or ArKaos Kling-Net or... - Page 4 S-LIGHTING S-STRIP Product Dimensions: S-LIGHTING S-STRIP...
-
Page 5: Installation Procedure
1. Carefully remove all items from the package and install on a secure foundation. 2. Connect the S-Strip to the output of the strip controller using a standard Ethernet cable. Clear/Frost Filter Installation The S-Strip includes a pre-installed frost filter. Follow the procedure below to install the included clear filter. -
Page 6: Mounting Guidelines
S-LIGHTING S-STRIP Mounting： The S-Strip comes with an adjustable mounting bracket and safety loop. The mounting bracket has three 13-mm holes used to attach a clamp directly to the product’s adjustable bracket, and serves as support for either mounting on the floor or on the wall. The safety... - Page 7 S-LIGHTING S-STRIP Series Attachment Instructions The S-Strip can be attached in an end-to-end formation to create a strip up to 4 meters long from just one rigging point. Do not connect more than a total of 4 strips in a row when hanging vertically.
- Page 8 S-LIGHTING S-STRIP Series Attachment Instructions (Cont.) Never attach more than 3 products from the initial product when hanging vertically. S-LIGHTING S-STRIP...
- Page 9 S-LIGHTING S-STRIP Power/Signal Connection Procedure: The Strip 1.0 uses an RJ45 connection to link all ports. Each strip can be linked from end-to-end never exceeding a total of 16 strips for each daisy chain. The following diagram illustrates how to configure the data connectio...
- Page 10 S-LIGHTING S-STRIP Addressing Of Each Output When Using Art-Net™ When using Art-Net™, set the addressing for each of the 16 outputs of the strip controller , including: Net, Sub-net, and Universe 1–4. If you are using 16 Strip products on a single output, the starting channel should remain at 1.
- Page 11 S-LIGHTING S-STRIP To maintain optimum performance and minimize wear, you should clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating.
-
Page 12: Technical Specifications
S-LIGHTING S-STRIP Technical Specifications Control Protocol: Art-Net, Kling-Net, DMX Art-Net & DMX Channels: 120/8 Light Source: 40 LEDs (tri-color) SMD 5050,50,000 hours life expectancy Pixels: 40 x 1 Pixel Pitch: 25 mm PWM Frequency: free-run 600hz Viewing Angle: 120° Illuminance: 1174 NITS (clear filter),...
