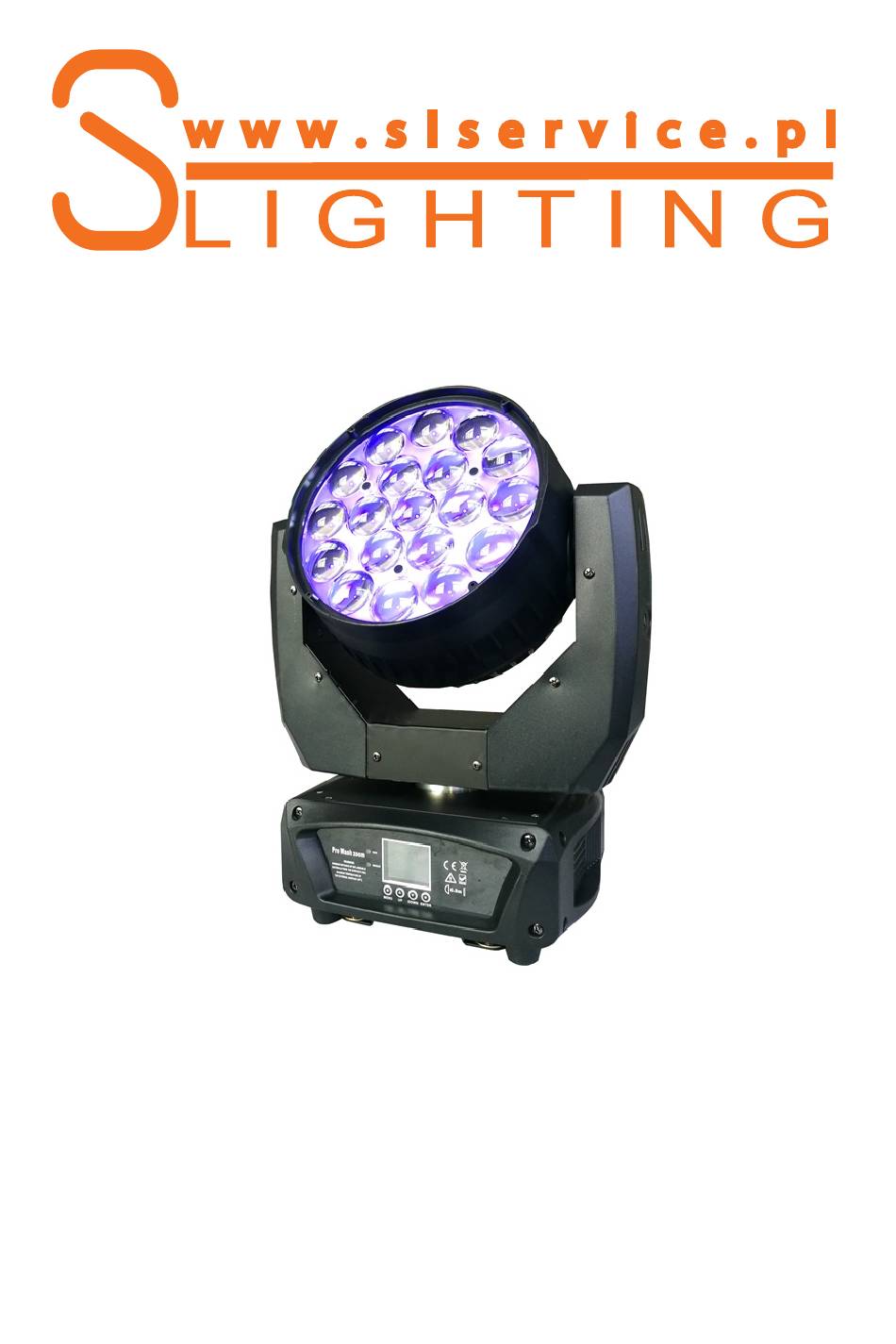

- Page 1 S-AURA USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ntroductIon afety InformatIon roduct InformatIon 3.1 S PecIfIcatIon 3.2 c leanIng and maIntenance 3.3 dMX-512 ISPlay menu functIonS and valueS... -
Page 3: Afety Information
- Do not use this device in high humidity conditions and at tempera- tures above 40°C. - Do not cover the ventilation slots when operating to avoid internal overheating. www.slservice.pl S-LIGHTING S-Aura... -
Page 4: Pecification
DMX channels: 14/25 AC IN: powerCON AC OUT: powerCON DMX IN: XLR - 3 pin DMX OUT: XLR - 3 pin IP Rating: IP20 Cooling: Active Height [cm]: 38 Width [cm]: 32 Depth [cm]: 21 Weight [kg]: 8 S-LIGHTING S-Aura www.slservice.pl... -
Page 5: Leaning And Maintenance
If you have further questions, please contact your dealer. Before replacing a fuse, disconnect the power cord! Always replace with the same type and rating of fuse! www.slservice.pl S-LIGHTING S-Aura... - Page 6 If extending this lifespan is vital, lower the operating temperatu- re by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. S-LIGHTING S-Aura www.slservice.pl...
-
Page 7: Dmx-512
Grounding the common may cause a ground loop, and your device may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other. www.slservice.pl S-LIGHTING S-Aura... - Page 8 (female) 3-pin connector to the input connector of the next device consisting of a (male) 3-pin connector. Then, proceed to connect from the output as stated above, to the input of the following device (and so on). S-LIGHTING S-Aura www.slservice.pl...
-
Page 9: Isplay Menu
Time Info Power ON Ttl Life Hrs Software Version Last Run Hrs Test 0-255 Tilt 0-255 Speed 0-255 Functions 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Colour 0-255 Zoom 0-255 Strobe 0-255 Dimmer 0-255 Reset All Reset www.slservice.pl S-LIGHTING S-Aura... - Page 10 Pan fine adjustment 0-255 Tilt Tilt adjustment (0° <--> 240°) 0-255 Tilt fine Tilt fine adjustment 0-009 No function 10-014 Reset entire fixture 15-039 No function Function 40-044 PTSP = NORM2 45-049 PTSP = FAST2 50-054 PTSP = SLOW2 S-LIGHTING S-Aura www.slservice.pl...
- Page 11 85-089 LEE 117 - Steel Blue 90-094 LEE 353 - Lighter Blue 95-099 LEE 118 - Light Blue 100-104 LEE 116 - Medium Blue Green 105-109 LEE 124 - Dark Green 110-114 LEE 139 - Primary Green www.slservice.pl S-LIGHTING S-Aura...
- Page 12 Speed of FX2 Pre-program 2 (CH17) speed (0 <--> max) No sync • FX1 and FX2 run through cycles independently 0-049 Settings of FX • Cycle duration is regular • CH16 and CH18 adjust FX1 and FX2 independently S-LIGHTING S-Aura www.slservice.pl...
- Page 13 Strobe 8: random burst pulse (fast <--> slow) 205-209 Shutter open 210-224 Strobe 9: sine wave (fast <--> slow) 225-229 Shutter open 230-244 Strobe 10: burst (fast <--> slow) 245-255 Shutter open 0-255 Aura dimmer Aura intensity (0 <--> 100%) www.slservice.pl S-LIGHTING S-Aura...
- Page 14 LEE 105 - Orange 155-159 LEE 021 - Gold Amber 160-164 LEE 778 - Millenium Gold 165-169 LEE 135 - Deep Golden Amber 170-174 LEE 164 - Flame Red 175-179 Open Color wheel rotation effect 180-201 Clockwise (fast <--> slow) S-LIGHTING S-Aura www.slservice.pl...
- Page 15 Fast 240-244 Medium 245-249 Slow 250-255 Open 0-255 Aura red Red aura color intensity (0 <--> 100%) 0-255 Aura green Green aura color intensity (0 <--> 100%) 0-255 Aura blue Blue aura color intensity (0 <--> 100%) www.slservice.pl S-LIGHTING S-Aura...
- Page 16 163-165 Color zoom ramp out Speed 165-168 Color zoom fade in Speed Zoom FX 169-171 Color zoom fade out Speed 172-174 Reserved 175-177 Zoom ramp up Speed 178-180 Zoom ramp down Speed 181-219 Reserved Reserved 220-255 Reserved S-LIGHTING S-Aura www.slservice.pl...
